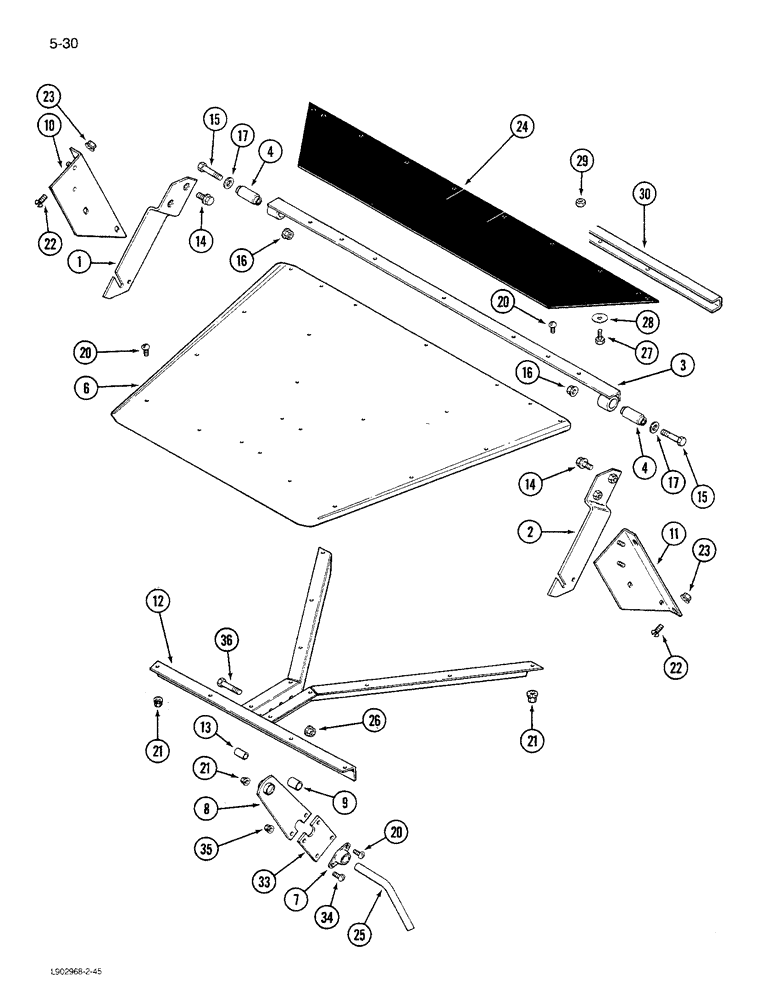

Запчасти Case IH 1680 (5-030) - OSCILLATING STEERING AXLE SHIELD, P.I.N. JJC0047878 AND AFTER (04) - STEERING

1

1979621C1

ARM

- shield, left

1шт.

2

1979622C1

ARM ASSY.

ARM - shield, right

1шт.

3

1979626C2

SUPPORT

- axle shield, Includes: Ref. 4

1шт.

4

1330324C1

BUSHING

- axle

1шт.

6

1302786C1

GUARD

SHIELD - axle

1шт.

7

1345189C1

BEARING COVER,19.06mm ID

- pivot

1шт.

8

1302578C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - shield pivot, Includes: Ref. 9

1шт.

9

289588R1

BUSHING

- shield pivot support

1шт.

10

1302046C1

SUPPORT

- hood extension, left

1шт.

11

1302047C1

SUPPORT

- hood extension, right

1шт.

12

1302554C1

SUPPORT

- axle shield

1шт.

13

1302776C1

BUSHING,13.46mm ID x 19.05mm OD x 30.23mm L

- pivot link

1шт.

14

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

4шт.

15

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

16

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

17

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

6шт.

20

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

31шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

35шт.

22

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

23

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

24

1302785C2

EXTENSION

STRIP - chaffer extension flap

1шт.

25

182922C1

ROD

- shield support

1шт.

26

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

27

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

28

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

6шт.

29

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

6шт.

30

REF

INSTRUCTION

SIEVE - chaffer (See Figure 9B-48)

1шт.

33

1312009C1

LINK

- pivot shield (With hitch)

1шт.

34

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

35

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

36

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.
