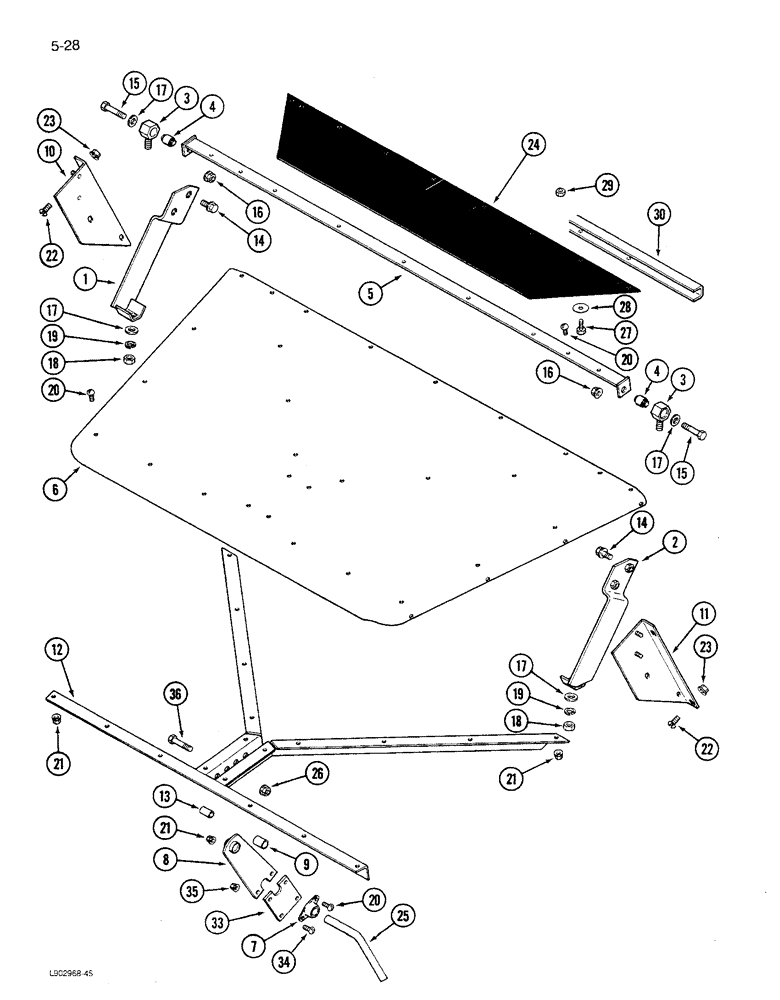

Запчасти Case IH 1680 (5-028) - OSCILLATING STEERING AXLE SHIELD, PRIOR TO P.I.N. JJC0047878 (04) - STEERING

1

1302778C5

BRACKET

ARM - shield, left

1шт.

2

1302779C5

BRACKET

ARM - shield, right

1шт.

3

181342C91

END ASSY.

END ASSEMBLY - axle, Includes: Ref. 4

2шт.

4

564103R91

COMPOSITE RING

BUSHING - axle end

2шт.

5

1302598C1

ANGLE

SUPPORT - axle shield

1шт.

6

1302786C1

GUARD

SHIELD - axle

1шт.

7

1345189C1

BEARING COVER,19.06mm ID

- pivot

1шт.

8

1302578C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - shield pivot, Includes: Ref. 9

1шт.

9

289588R1

BUSHING

- shield pivot support

1шт.

10

1302046C1

SUPPORT

- hood extension, left

1шт.

11

1302047C1

SUPPORT

- hood extension, right

1шт.

12

1302554C1

SUPPORT

- axle shield

1шт.

13

1302776C1

BUSHING,13.46mm ID x 19.05mm OD x 30.23mm L

- pivot link

1шт.

14

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

4шт.

15

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

3шт.

16

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

17

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

31шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

35шт.

22

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

23

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

24

1302785C2

EXTENSION

STRIP - chaffer extension flap

1шт.

25

182922C1

ROD

- shield support

1шт.

26

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange lock, 1/2 inch NC

1шт.

27

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

28

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

6шт.

29

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

6шт.

30

REF

INSTRUCTION

SIEVE - chaffer (See Figure 9B-48)

1шт.

33

1312009C1

LINK

- pivot shield (With hitch)

1шт.

34

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

35

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.
