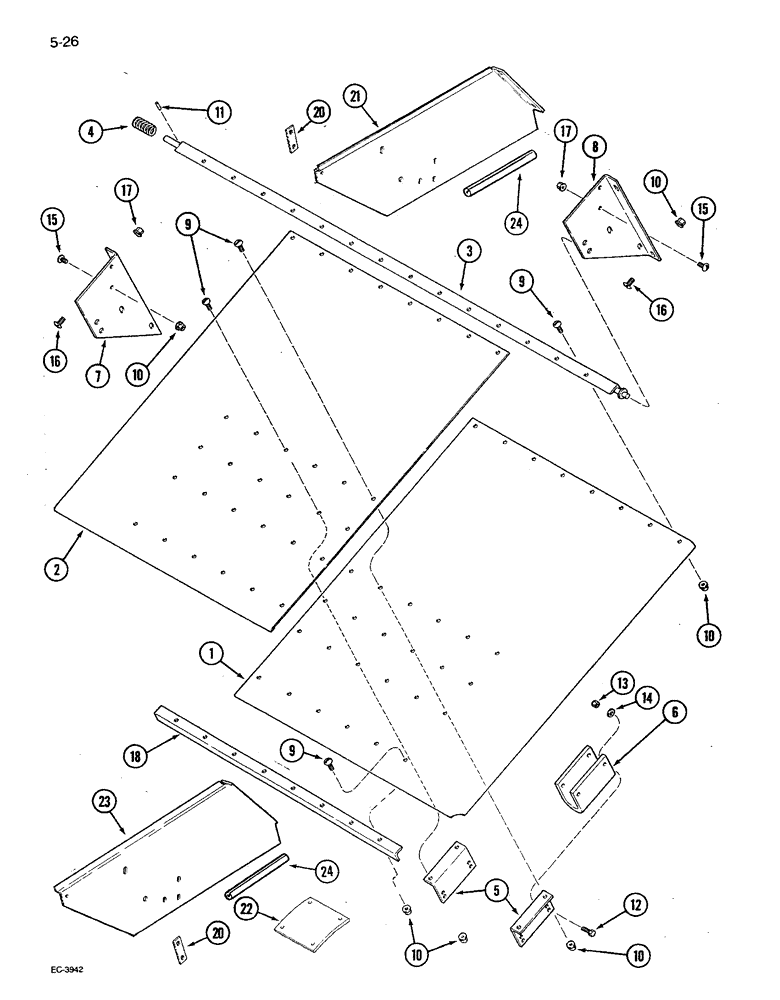

Запчасти Case IH 1680 (5-026) - STATIONARY STEERING AXLE SHIELD (04) - STEERING
№
Артикул
Название
Примечание
Количество
1
195437C2
SHIELD
- axle, left
1шт.
For standard length chaffer.
1шт.
2
195438C2
SHIELD
- axle, right
1шт.
For standard length chaffer.
1шт.
2
1325597C2
SHIELD
- steering axle (One piece)
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
3
188176C1
SUPPORT
- axle shield
1шт.
4
203942C1
SPRING
- shield pivot
1шт.
5
183093C1
BRACKET
ANGLE - shield support
2шт.
6
183094C1
CUSHION
STRIP - shield support
1шт.
7
195447C1
SUPPORT
- separator hood, left
1шт.
For standard length chaffer.
1шт.
8
195448C1
SUPPORT
- separator hood, right
1шт.
For standard length chaffer.
1шт.
9
135270
SERRATED SCREW,5/16" - 18 x 3/4"
- slotted truss head, 5/16 NC x 3/4 inch
1шт.
10
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flange lock, 5/16 inch NC
1шт.
11
138-59
LOCK PIN,1/8" x 7/8", Slotted
PIN, 1/8" x 7/8", Slotted
1шт.
12
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- hex, 5/16 NC x 1 inch
4шт.
13
131-1215
LOCK NUT,5/16"-18, GC
NUT, LOCK, 5/16"-18, GC
4шт.
14
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
4шт.
15
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
- slotted truss head, 5/16 NC x 1/2 inch
4шт.
17
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex flange lock, 3/8 inch NC
4шт.
18
183224C1
ANGLE
- axle shield
1шт.
For standard length chaffer and drive.
1шт.
20
1325376C1
PLATE
BRACKET - hood extension retaining
2шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
21
1322479C3
PLATE
- hood extension, right
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
22
1345126C1
CUSHION
- axle shield
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
23
1322478C3
PLATE
- hood extension, left
1шт.
For long chaffer cleaning system, P.I.N. JJC0047412 and after.
1шт.
24
1968976C1
SEALING STRIP
SEAL - strip
2шт.
Выбрано товаров: 34
