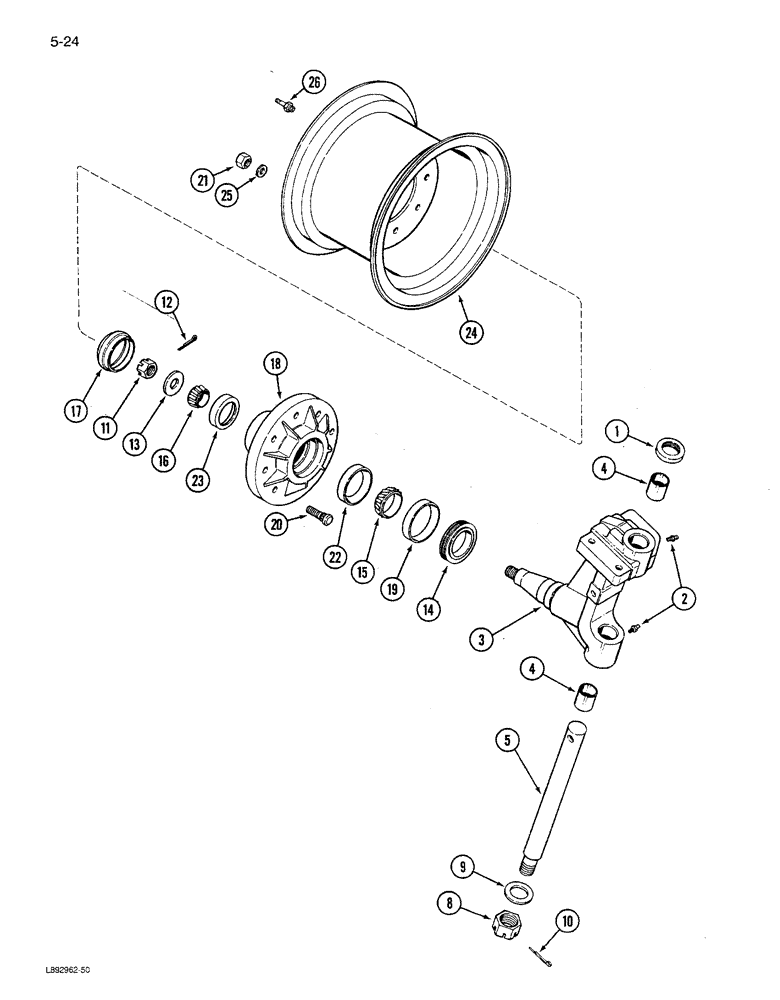

Запчасти Case IH 1680 (5-024) - STEERING KNUCKLE, HUB AND WHEELS (04) - STEERING

1

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - knuckle thrust

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

3

185439C91

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering, left, Includes: Ref. 4

1шт.

3

185440C91

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering, right (Shown), Includes: Ref. 4

1шт.

4

186680C1

BUSHING,50.93mm ID x 55.56mm OD x 50.8mm L

- king pin

4шт.

5

186052C1

PIN,50.8mm OD x 508mm L

- king

2шт.

8

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex slotted, 1-1/2 inch NC

2шт.

9

95-81041

WASHER,38.89mm ID x 76.2mm OD x 3.4mm Thk

- flat, 1-17/32 x 3 x 7/64 inch

2шт.

10

432-1648

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

2шт.

11

425-1316

NUT,1"-14, G5

NUT - hex slotted, 1 inch NF

2шт.

12

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

13

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

- flat, 1-1/32 x 2-1/4 x 1/4 inch

2шт.

14

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

- oil

2шт.

15

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing inner, 2-1/16 inch ID

2шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing outer, 1-5/8 inch ID

2шт.

17

560950R1

HUB CAP

CAP - hub

2шт.

18

169293C11

HUB

ASSEMBLY - wheel, Includes: Ref. 19 - 23

2шт.

19

169328C1

SLEEVE

RING - oil seal wear

1шт.

20

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

- fluted, 5/8 NF x 2-9/16 inch

8шт.

21

554480R1

WHEEL NUT

- hex taper seat, 5/8 inch NF

8шт.

22

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing inner, 3-35/64 inch OD

1шт.

23

663558R1

BEARING CUP

CUP - bearing outer, 2-57/64 inch OD

1шт.

24

672128R91

WHEEL

- for 12.4-16, 11.00-16, 14.9-24 tire (Grain and Corn)

2шт.

24

186642C2

WHEEL

- for 18.4-16 tire

2шт.

24

376196R91

WHEEL

- for 14.9 x 24 tire (Rice)

2шт.

PART #376196R91 ONLY THE TIRE IS DIFFERENT FOR GRAIN OR RICE.

1шт.

24

188759C2

RIM

WHEEL - for 11.25 x 24 tire

2шт.

25

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat (Used with 186642C2 wheel only)

16шт.

26

179482C1

VALVE STEM

VALVE - inflation 7/16 inch diameter (Rice)

2шт.

26

536705R91

VALVE

- inflation, 5/8 inch diameter

2шт.

26

407184R1

VALVE

CORE - valve, tubless

2шт.
