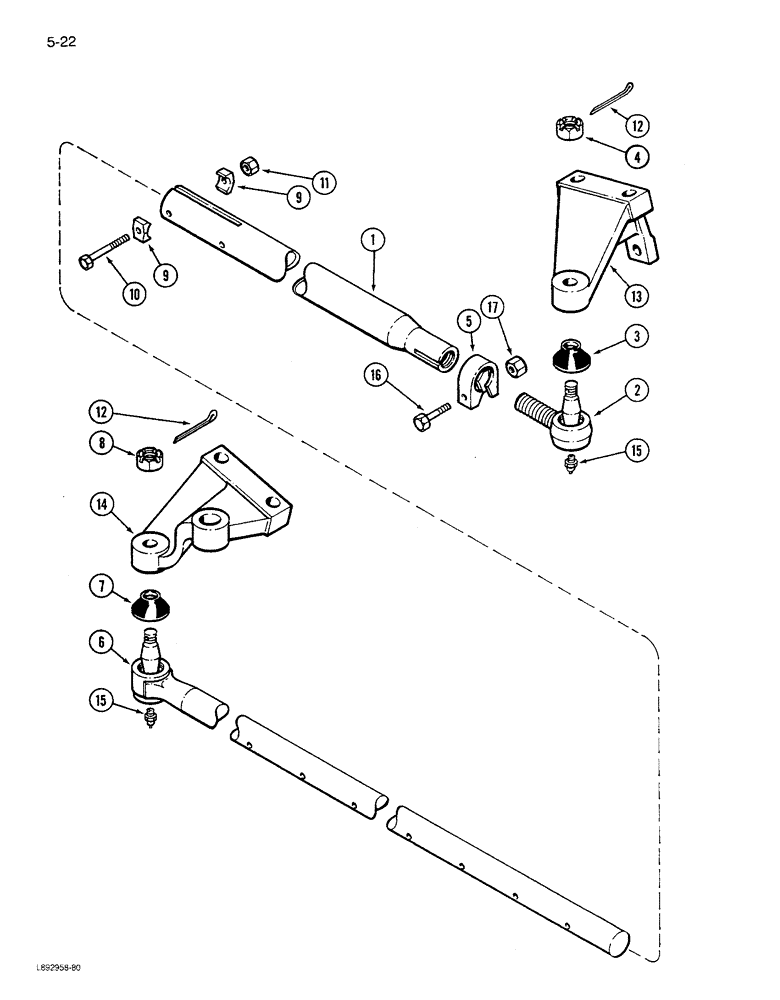

Запчасти Case IH 1680 (5-022) - STEERING TIE ROD, 92 TO 120 INCH ADJUSTABLE AXLE (04) - STEERING

186139C91

DRAG LINK

ROD ASSEMBLY - tie, axle, Includes: Ref. 1 - 9

1шт.

1

180801C1

TUBE

- tie rod

1шт.

2

A43376

JOINT

END ASSEMBLY - tie rod, right, Includes: Ref. 3 and 4

1шт.

3

A31186

BOOT

SEAL - rod end

1шт.

4

358901R1

SLOTTED NUT

- hex slotted, 5/8 inch NF

1шт.

5

446308C91

CLAMP

- tie rod, 1-3/8 inch

1шт.

5

1319476C91

CLAMP

- tie rod, 1-1/2 inch

1шт.

6

180799C91

TIE-ROD

END ASSEMBLY - tie rod, left, Includes: Ref. 7 and 8

1шт.

7

A31186

BOOT

SEAL - rod end

1шт.

8

358901R1

SLOTTED NUT

- hex slotted, 5/8 inch NF

1шт.

9

A43369

CLAMP

WASHER - clamp

1шт.

10

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

2шт.

12

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

13

REF

INSTRUCTION

ARM - steering, right (See Figure 5-16)

1шт.

14

REF

INSTRUCTION

ARM - steering, left (See Figure 5-16)

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, short 1/8 inch PT

2шт.

16

180152

BOLT,Hex, 7/16" - 14 x 1 7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

17

131-667

NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

1шт.

11

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

2шт.
