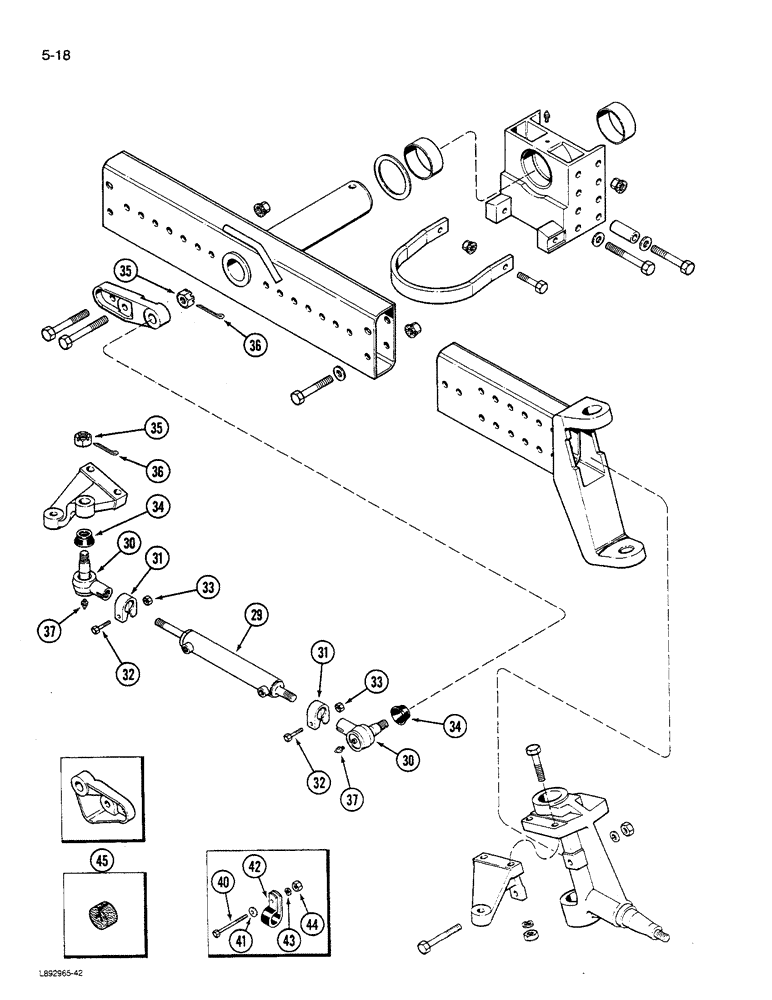

Запчасти Case IH 1680 (5-018) - ADJUSTABLE STEERING AXLE (CONTD) (04) - STEERING

29

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-50), continued

1шт.

30

186140C91

BALL JOINT

END ASSEMBLY - steering cylinder, Includes: Ref. 31 - 35

2шт.

31

446308C91

CLAMP

ASSEMBLY - steering cylinder end, Includes: Ref. 32 and 33

1шт.

32

180152

BOLT,Hex, 7/16" - 14 x 1 7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

33

131-667

NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

1шт.

34

110373R1

DUST CAP

SEAL - steering cylinder end

1шт.

35

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex slotted, 7/8 inch NF, Grade 8

1шт.

36

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

2шт.

40

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

41

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 1/16 inch

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

42

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- steering hose

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

45

167955C2

SEAL

- power steering hoses

2шт.
