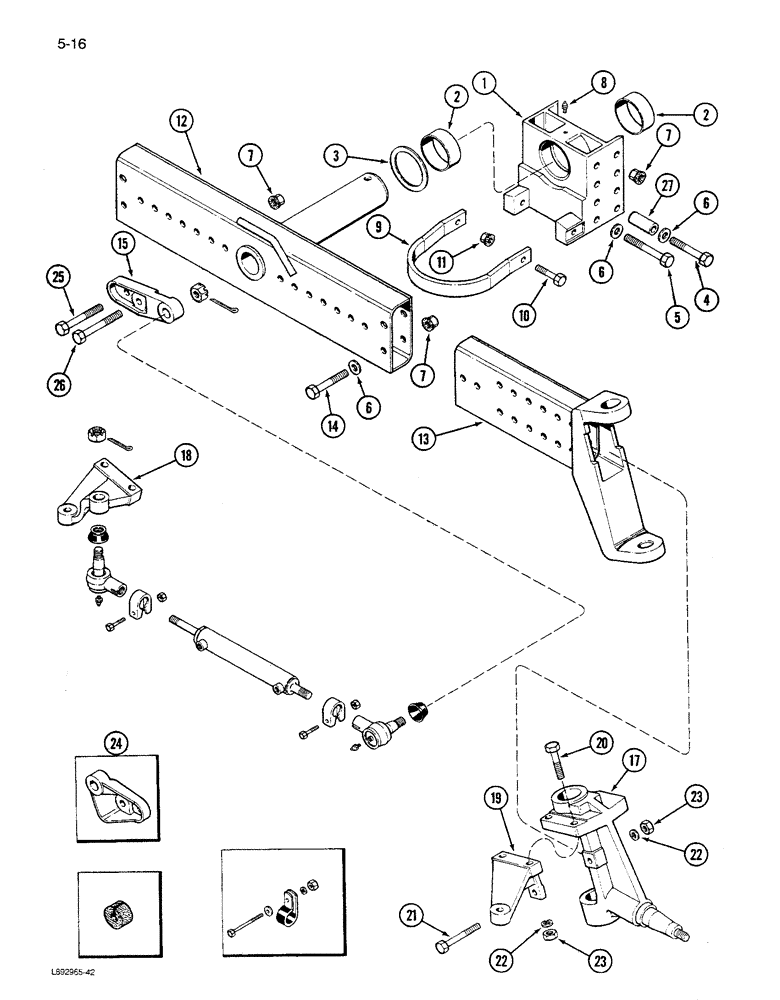

Запчасти Case IH 1680 (5-016) - ADJUSTABLE STEERING AXLE (04) - STEERING
№
Артикул
Название
Примечание
Количество
1
186599C93
SUPPORT
ASSEMBLY - axle pivot
1шт.
2
177751C1
BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L
- axle pivot
2шт.
3
168385C2
WASHER,102.6mm ID x 127mm OD x 3.3mm Thk
- pivot tube, 68 to 88 inch axle
1шт.
4
326-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8
6шт.
5
326-1288
BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8
2шт.
6
496-21081
WASHER,13/16" x 1 1/2" x .179", HDN
8шт.
7
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
- hex, 3/4 inch NC, Grade 8
16шт.
8
219-93
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
Taper 90º, 1/4"-28 NPT x .75" lg, Drive
1шт.
8
219-87
LUBE NIPPLE,1/4" - 28 NPTF
FITTING - 45 degree lube, 1/4 inch taper drive
1шт.
9
1302625C1
CHANNEL
STRAP - tow
1шт.
10
326-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 8
2шт.
11
231-51410
FLANGE NUT,Flg, USR, 5/8"-11
2шт.
12
1302492C2
SHAFT
AXLE ASSEMBLY - 68 to 88 inch (Grain)
1шт.
12
182797C3
AXLE
ASSEMBLY - 68 to 88 inch (Corn and Rice)
1шт.
12
186317C2
AXLE
ASSEMBLY - 92 to 120 inch (Grain)
1шт.
12
1302522C2
STEERING AXLE
AXLE ASSEMBLY - 92 to 120 inch (Corn and Rice)
1шт.
13
186595C2
EXTENSION
- axle, 68 to 88 inch, axle
2шт.
13
186045C2
EXTENSION ASSY.
EXTENSION - axle, 92 to 120 inch, axle
2шт.
14
413-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
- hex, 3/4 NC x 4-1/2 inch
6шт.
15
186598C1
BRACKET
ANCHOR - steering cylinder, 68 to 88 inch
1шт.
17
REF
INSTRUCTION
KNUCKLE - steering (See Figure 5-24)
2шт.
18
186641C1
LEVER
ARM - steering, left
1шт.
19
186639C1
LEVER
ARM - steering, right
1шт.
20
326-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8
4шт.
21
326-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 8
2шт.
22
366866C1
LOCK WASHER,5/8"
5/8"
6шт.
23
429-1010
NUT,5/8"-11, G8
6шт.
24
186574C1
ANCHOR
- steering cylinder, 92 to 120 inch axle
1шт.
25
413-1280
BOLT,Hex, 3/4" - 10 x 5", Gr 5
- hex, 3/4 NC x 5 inch
1шт.
26
413-1284
BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5
- hex, 3/4 NC x 5-1/4 inch
1шт.
27
177748C1
SPACER
- support 13/16 x 1-1/4 x 2-13/16
8шт.
Выбрано товаров: 31
