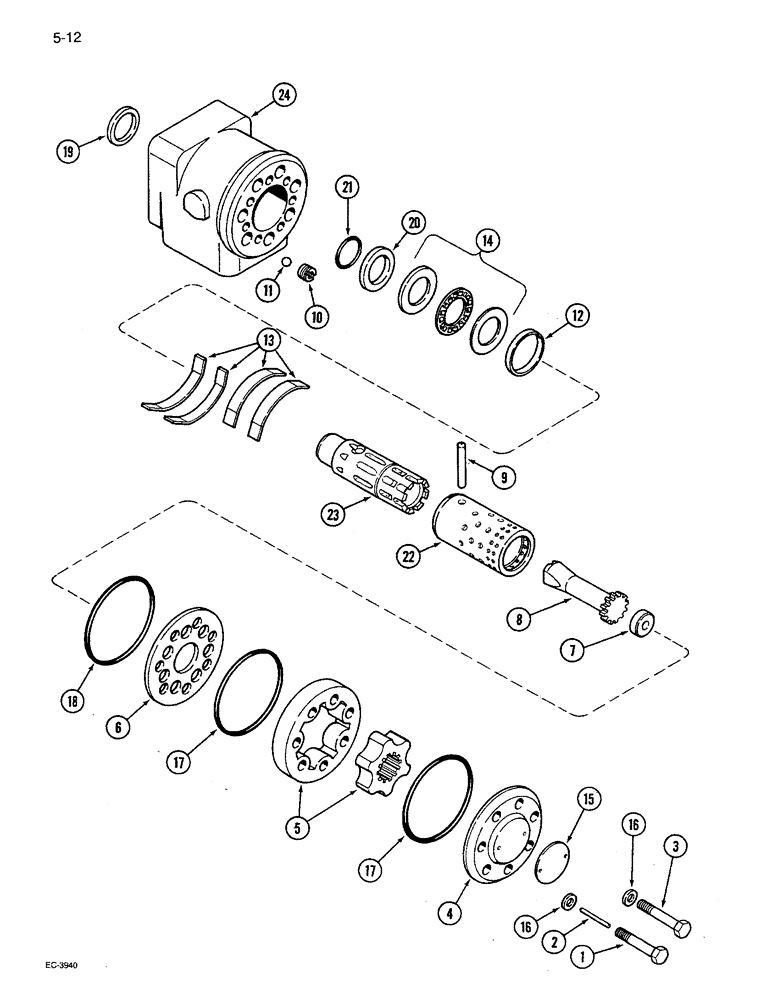

Запчасти Case IH 1680 (5-012) - STEERING HAND PUMP ASSEMBLY (04) - STEERING

1282040C93

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering hand, Includes: Ref. 1 - 24

1шт.

Prior to P.I.N. JJC0117060

1шт.

1542691C1

PUMP

ASSEMBLY - steering hand, Includes: Ref. 1 - 24

1шт.

P.I.N. JJC0048625 and after

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - hex, special (drilled) (Order 1282040C93)

1шт.

2

3112271R1

PIN, ROLL

PIN - roll, 2 x 32 mm

1шт.

3

NSS

NOT SOLD SEPARAT

BOLT - hex (Order 1282040C93)

6шт.

4

1272805C1

COVER

- end

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR SET - pump (Order 1282040C93)

1шт.

6

1272803C1

PLATE

- pump

1шт.

7

NSS

NOT SOLD SEPARAT

SPACER - (Order 1282040C93)

1шт.

8

1272797C1

SHAFT

- pump

1шт.

9

1272796C1

CROSS PIN

6 x 41 mm

1шт.

10

1272793C1

BUSHING

- housing

1шт.

11

1272794C1

BALL

- check, 8 mm diameter

1шт.

12

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

- seal

1шт.

13

1272809C1

PACKAGE

SPRING KIT - pump (Set of 4)

1шт.

14

1272808C1

NEEDLE BEARING

BEARING KIT - needle

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - rating (Order 1282040C93)

1шт.

3141548R91

SEAL KIT

SEAL KIT - pump repair, Includes: Ref. 16 - 21

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - flat, cover bolt (Order 3141548R91)

7шт.

17

NSS

NOT SOLD SEPARAT

O-RING - 2 x 76 mm (Order 3141548R91)

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1 x 80 mm (Order 3141548R91)

1шт.

19

NSS

NOT SOLD SEPARAT

RING - (Order 3141548R91)

1шт.

20

NSS

NOT SOLD SEPARAT

RING - (Order 3141548R91)

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - (Order 3141548R91)

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE - (Order 1282040C93)

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE - (Order 1282040C93)

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - (Order 1282040C93)

1шт.
