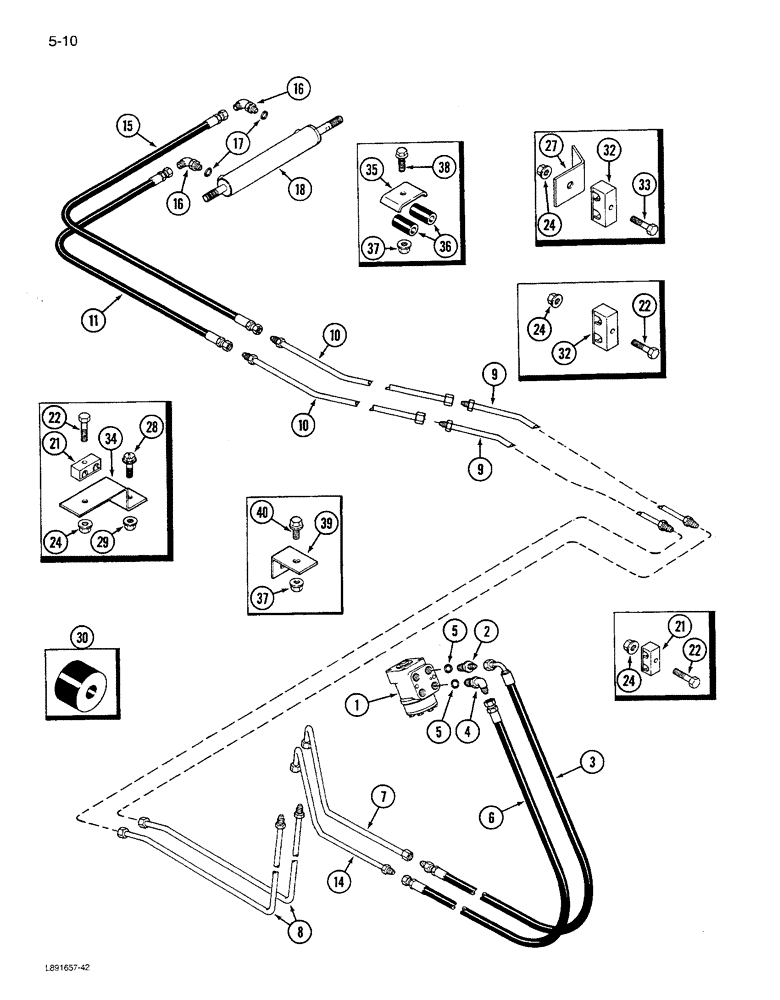

Запчасти Case IH 1680 (5-010) - POWER STEERING SYSTEM, PUMP TO CYLINDER SYSTEM (04) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering (See Figure 5-12)

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - short, 3/4-16 x 9/16-18 inch thread

1шт.

3

1317940C1

HOSE

ASSEMBLY - steering hand pump left

1шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 9/16-18 x 3/4-16 inch thread

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

1317971C1

HOSE ASSY.

HOSE ASSEMBLY - steering hand pump, right

1шт.

7

1321970C1

HYD TUBE

TUBE ASSEMBLY - steering, forward, upper inside

1шт.

8

1321959C1

HYD TUBE

TUBE ASSEMBLY - steering, intermediate, forward

2шт.

9

196790C2

HYD TUBE

TUBE ASSEMBLY - steering, intermediate, rear

2шт.

10

187825C1

TUBE

ASSEMBLY - steering rear

2шт.

11

1285380C2

HYDRAULIC HOSE

HOSE - separator clutch, 3/8 ID x 50 inch (Narrow axle)

1шт.

11

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

ASSEMBLY - cylinder lower, 68 inch for 120 inch axle

1шт.

14

1321969C1

HYD TUBE

TUBE ASSEMBLY - steering, forward, upper outside

1шт.

15

178962C1

HOSE ASSY.

HOSE ASSEMBLY - cylinder upper, 60 inch (Narrow axle)

1шт.

15

183920C1

HOSE ASSY.

HOSE ASSEMBLY - cylinder upper, 77 inch for 120 inch axle

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch thread

2шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-50)

1шт.

21

183825C1

CLAMP

- steering tube, for 3/8 inch tube

5шт.

22

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

24

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

5шт.

27

178960C1

BRACKET

SUPPORT - steering rear tube

1шт.

28

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

2шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, 3/8 inch NC

2шт.

30

167955C2

SEAL

GROMMET - steering cylinder hose

2шт.

32

1301178C1

CLAMP

- steering tube

2шт.

33

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

2шт.

34

196517C1

SUPPORT TUBE

SUPPORT - steering tube

2шт.

35

165602C1

CLAMP

- steering tube

1шт.

36

163490C1

RUBBER INSULATOR

STRIP - steering tube clamp

2шт.

37

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

38

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange, 5/16 NC x 1-1/4 inch

1шт.

39

183899C1

ANGLE

- support, hand pump hose

1шт.

40

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Seal

2шт.
