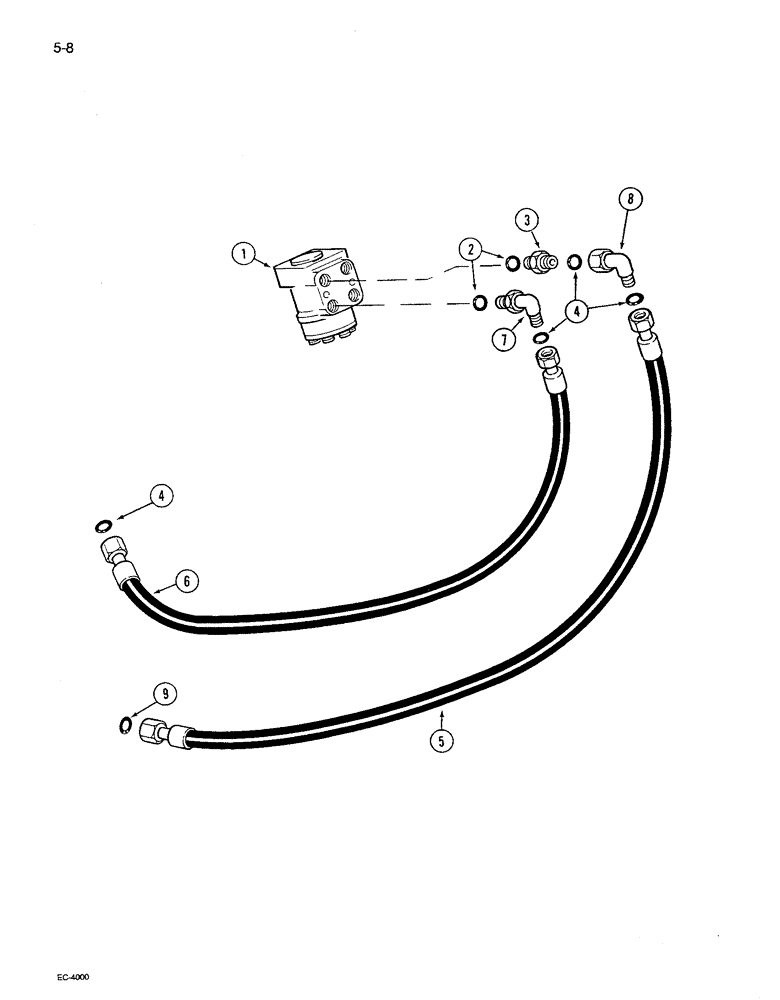

Запчасти Case IH 1680 (5-008) - POWER STEERING SYSTEM, SUPPLY & RETURN, P.I.N. JJC0117060 & AFTER (04) - STEERING

1

REF

INSTRUCTION

PUMP - steering hand (See Figure 5-12)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR - straight, 1/2 x 3/8 inch

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

5

1989505C1

HOSE

ASSEMBLY - steering hand pump return, foot n inch (See Figure 6-22)

1шт.

6

1989504C1

HOSE

ASSEMBLY - steering hand pump supply,steering dioanostic tee (See Figure 8-152)

1шт.

7

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90 degree, 11/16-16 face x 3/4-16 inch adj O-ring

1шт.

8

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

- 90 degree, 11/16-16 inch face x swivel face seal

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
