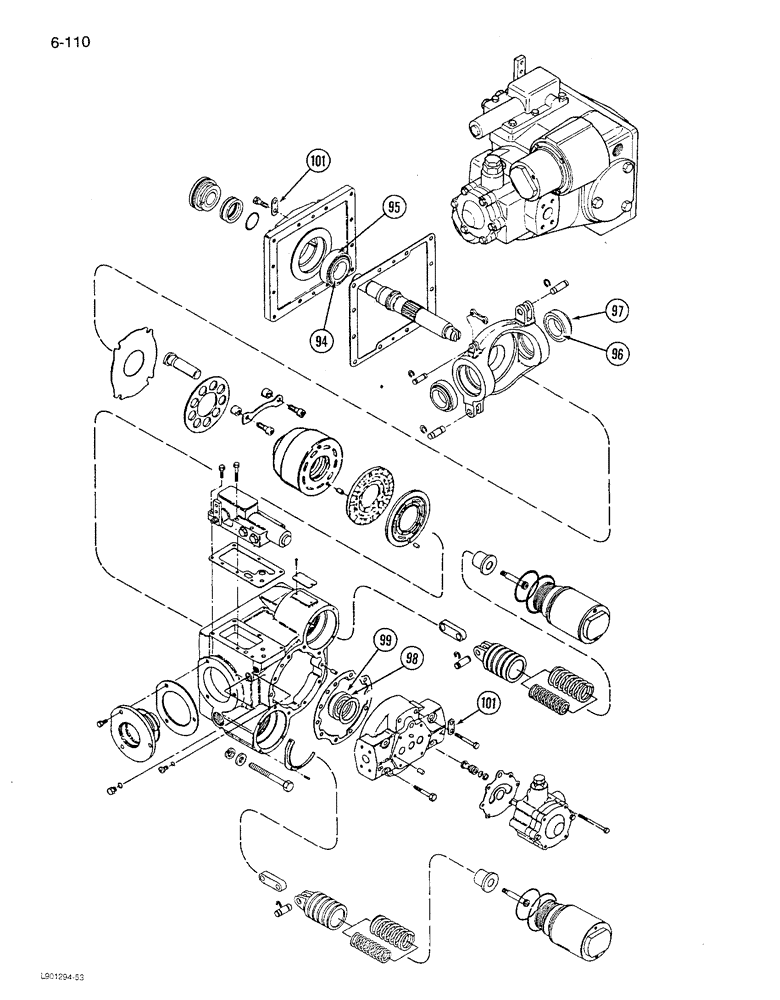

Запчасти Case IH 1680 (6-110) - HYDROSTATIC PUMP, W/SINGLE SPEED MOTOR, RICE W/POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0047918 (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, continued

1шт.

94

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

CONE - bearing, input shaft

1шт.

95

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - bearing, input shaft

1шт.

96

400987C1

BEARING ASSY,1.785" ID x 2.892" OD x 0.77, 0.62"

CONE - bearing, trunnion

2шт.

97

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - trunnion bearing, 2-57/64 inch OD

2шт.

98

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

CONE - bearing, input shaft, 1-3/16 inch ID

1шт.

99

530741R1

BEARING CUP

CUP - bearing, input shaft, 2-17/32 inch OD

1шт.

101

NSS

NOT SOLD SEPARAT

STRAP - shipping (Shown for reference only)

2шт.
