Запчасти Case IH 1680 (6-104[B]) - TRACK ROLLER, P.I.N. JJC0117060 & AFTER (03) - POWER TRAIN

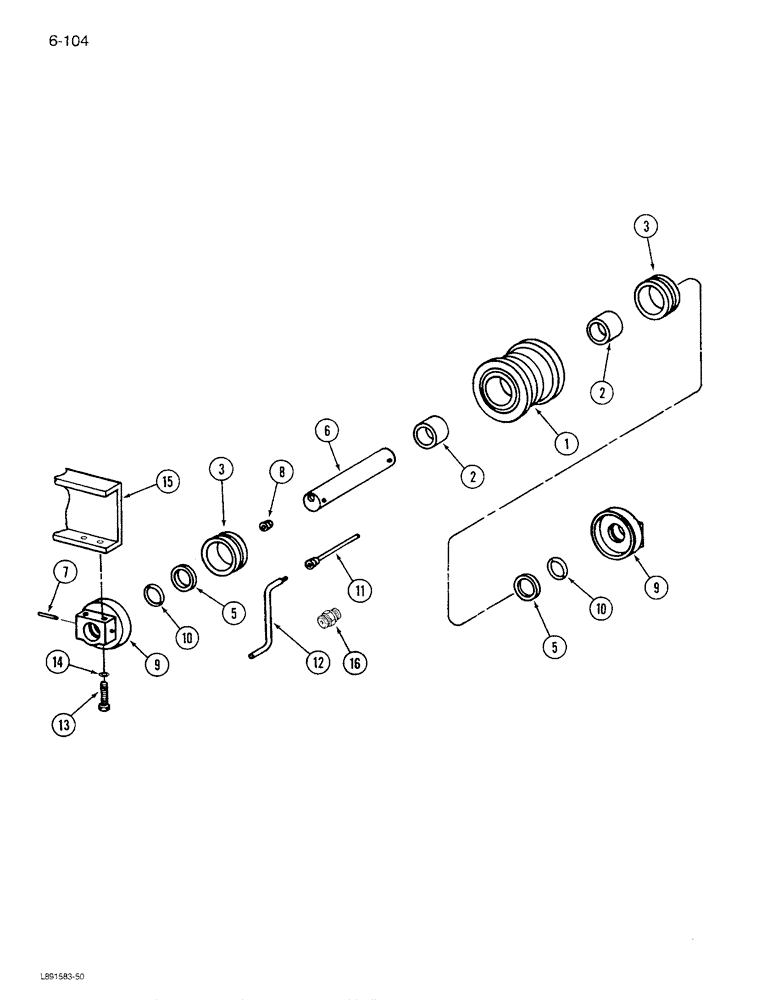

![Схема запчастей Case IH 1680 - (6-104[B]) - TRACK ROLLER, P.I.N. JJC0117060 & AFTER (03) - POWER TRAIN](https://partsell.ru/storage/images/caseih/765523.png)
13
5
14
9
3
16
12
9
5
10
8
1
10
6
7
3
11
2
15
2
№
Артикул
Название
Примечание
Количество
R57357
TRACK ROLLER
ROLLER ASSEMBLY - track, Includes: Ref. 1 - 10
12шт.
1
R57360
ROLLER ASSY.
ROLLER ASSEMBLY - track, Includes: Ref. 2
1шт.
2
R33556
BUSHING,50.28mm ID x 70.5mm OD x 46mm L
- flanged
2шт.
3
S113075
SEAL
ASSEMBLY - oil
2шт.
6
R33569
SHAFT
- roller
1шт.
7
R33570
PIN
- spring
2шт.
8
R33557
PLUG
- square
1шт.
9
R33568
BRACKET
- shaft support
2шт.
10
238-5224
O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro
2шт.
11
Not used this application
1шт.
12
Not used this application
1шт.
13
Not used this application
1шт.
14
Not used this application
1шт.
15
Not used this application
1шт.
16
Not used this application
1шт.
Выбрано товаров: 15
