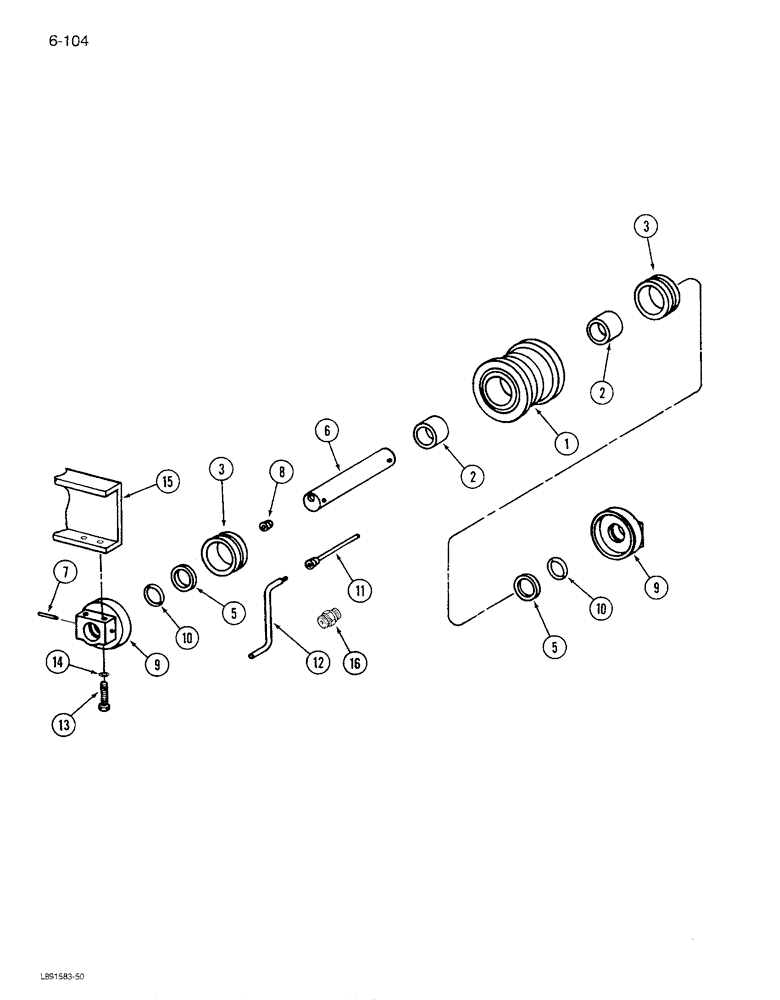

Запчасти Case IH 1680 (6-104[A]) - TRACK ROLLER, PRIOR TO P.I.N. JJC0117060 (03) - POWER TRAIN

621462C94

ROLLER

ASSEMBLY - track, Includes: Ref. 1 - 10

12шт.

1

621455C94

ROLLER

ASSEMBLY - track, Includes: Ref. 2

1шт.

2

621458C3

BUSHING

- idler roller

2шт.

3

740915C91

OIL SEAL

SEAL KIT - track

2шт.

5

621419C1

THRUST WASHER

- roller thrust

2шт.

6

621459C1

SHAFT

- roller

1шт.

7

138-2066

PIN,3/8" x 1 1/2", Coiled

2шт.

8

444783

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - square socket pipe, 3/8 inch PT

1шт.

9

621463C1

HOUSING

BRACKET - shaft support

2шт.

10

655266C1

O-RING,1.734" ID x 0.144" Width

- bracket, 1-3/4 x 2 x 1/8 inch

2шт.

11

1330259C1

TUBE,6.78" Length

- lubricator, track

2шт.

12

304910R2

SPECIAL WRENCH

WRENCH - socket plug

1шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

48шт.

14

392-21050

LOCK WASHER,1/2"

1/2"

48шт.

15

REF

INSTRUCTION

FRAME ASSEMBLY - track (See Figure 6-96)

2шт.

16

1330260C1

FITTING

- hex button head

1шт.
