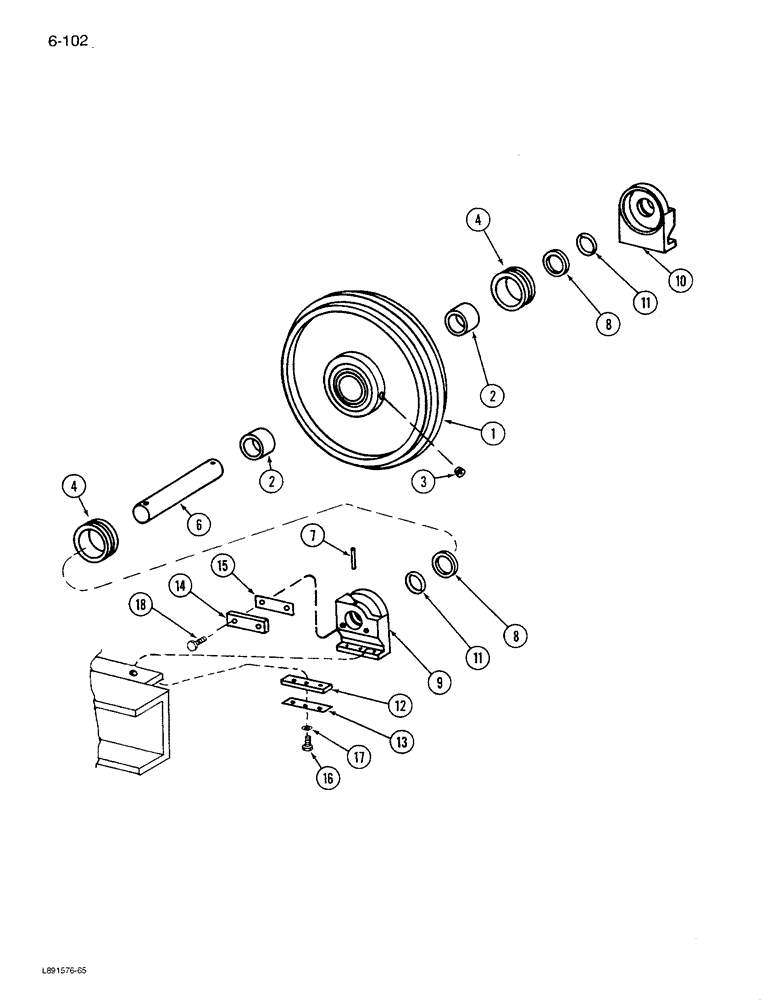

Запчасти Case IH 1680 (6-102[B]) - TRACK IDLER, P.I.N. JJC0117060 & AFTER (03) - POWER TRAIN

R53591

FRONT IDLER

ROLLER ASSEMBLY - idler, front and rear, Includes: Ref. 1 - 8

4шт.

1

R53592

WHEEL

ROLLER ASSEMBLY - idler

4шт.

2

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- flanged

8шт.

3

R33557

PLUG

-idler roller

4шт.

4

R36437

SEAL

KIT - track

8шт.

6

R53596

SHAFT

- idler

4шт.

7

R53594

SPLIT PIN/SAFETY PIN

PIN - spring 10 x 65 mm roll

8шт.

7

R53595

PIN, ROLL

PIN - spring 6 x 65 mm roll

8шт.

9

R53599

BRACKET

SUPPORT - idler end cap

4шт.

10

R53599

BRACKET

SUPPORT - idler end cap

4шт.

11

238-5221

O-RING,0.139" Thk x 1.421" ID, -221, Cl 5, 75 Duro

8шт.

12

Not used this application

1шт.

13

Not used this application

1шт.

14

Not used this application

1шт.

15

Not used this application

1шт.

16

Not used this application

1шт.

17

Not used this application

1шт.

18

Not used this application

1шт.
