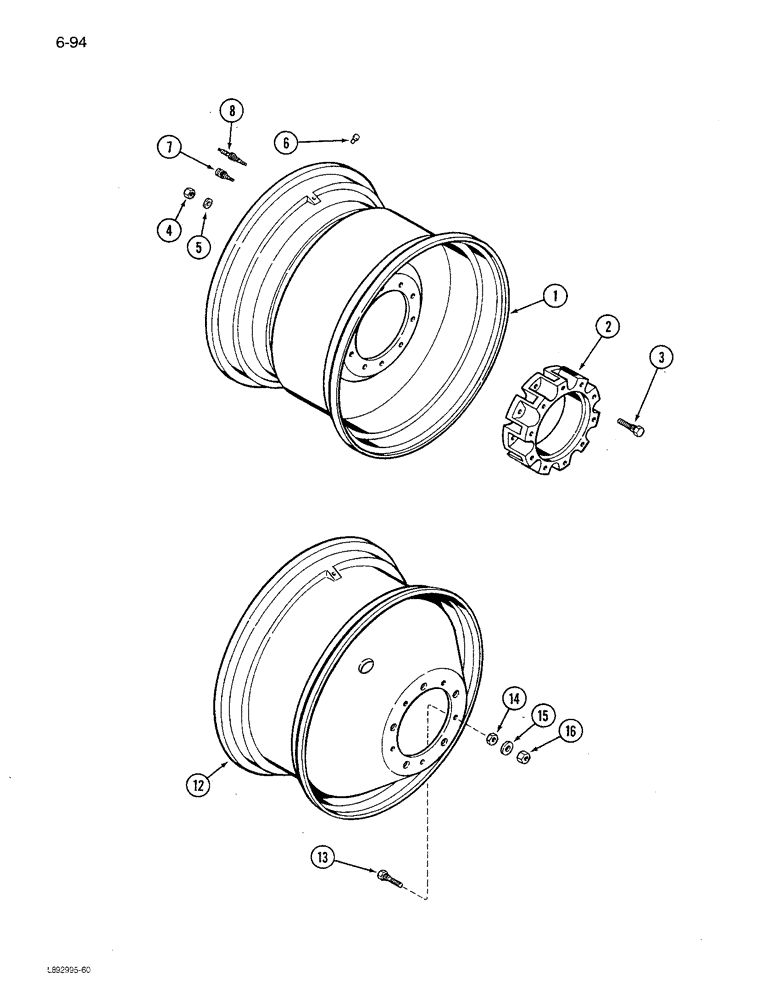

Запчасти Case IH 1680 (6-094) - DRIVE WHEELS AND SPACERS, DUAL DRIVE WHEELS (03) - POWER TRAIN

1

194268C2

RIM

WHEEL - drive (For 67 x 34-30 tire)

2шт.

1

184482C1

RIM

WHEEL - drive (For 24.5 x 32 and 30.5L x 32 tire)

2шт.

1

184480C1

RIM

WHEEL - drive (For 30.5L x 32 tire)

2шт.

1

184481C1

RIM

WHEEL - drive (For 20.8-38 inch tire)

4шт.

2

178912C92

RETAINER

SPACER ASSEMBLY - wheel, 3 inch (Includes Ref. 3)

2шт.

2

188124C91

RETAINER

SPACER ASSEMBLY - wheel, 2-1/2 inch (Includes Ref. 3)

2шт.

3

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

- wheel

20шт.

4

429-1112

NUT,3/4"-16, G5

- hex, 3/4 inch NF, Grade 8

20шт.

5

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

Not used with spacer 13/16" x 1 1/2" x .219", HDN

20шт.

6

417194C1

PLUG

- valve hole (For tubeless tires)

2шт.

6

383697R1

PLUG

- valve hose (For tube type Rice tires)

2шт.

7

179482C1

VALVE STEM

VALVE - inflation (Tubeless tire)

2шт.

8

407184R1

VALVE

CORE - inflation (Tubeless tire)

2шт.

12

184352C1

RIM

WHEEL - drive, dual (For 18.4-38 inch tire)

4шт.

12

184458C1

RIM

WHEEL - drive, dual (For 18.4 x 42 inch tire)

4шт.

12

184456C1

RIM

WHEEL - drive, dual (For 20.8 x 42 inch tire)

4шт.

13

184430C1

BOLT

- wheel

20шт.

14

329-1512

JAM NUT,Jam, 3/4"-10, G8

Jam, 3/4"-10, G8

10шт.

15

184403C1

SPACER

- flat, 13/16 x 2 x 3/8 inch

20шт.

16

429-1112

NUT,3/4"-16, G5

- hex, 3/4 inch NF, Grade 8

20шт.
