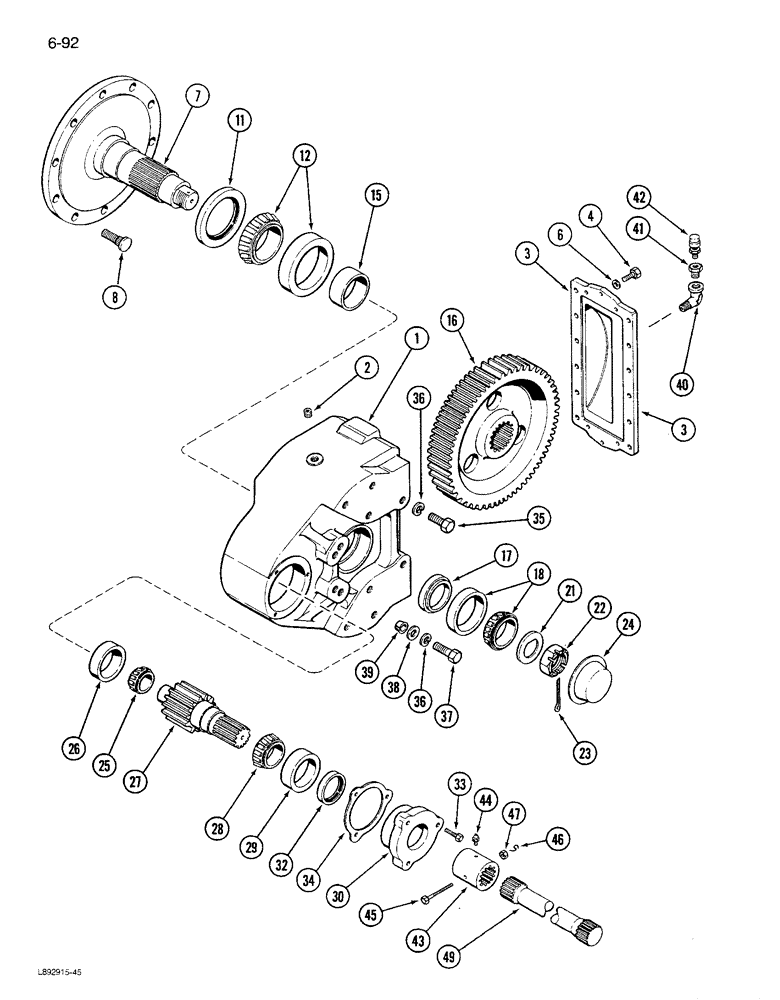

Запчасти Case IH 1680 (6-092) - FINAL DRIVE (03) - POWER TRAIN

1342937C1

DRIVE ASSY.

DRIVE ASSEMBLY - final

2шт.

P.I.N. JJC0048625 and after

1шт.

1342937C1R

REMAN-GEAR ASSY

Final Drive; For N.A. only

2шт.

1342937C1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

92770C92

DRIVE

DRIVE ASSEMBLY - final

2шт.

92770C92R

REMAN-TRANSMISSION

Remanufactured Final Drive; For N.A. only

1шт.

92770C92C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

(Prior to JJC0047825)

1шт.

1

86851C2

HOUSING

HOUSING - final drive

1шт.

2

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - square socket, 3/4-14 inch PT

2шт.

3

86839C2

COVER

COVER - housing

1шт.

4

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

BOLT, Hex, 1/2"-13 x 1 1/2", G8, Full Thd

12шт.

4

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

6шт.

6

396-21053

WASHER,17/32" x 1 1/16" x .134"

WASHER, 17/32" x 1 1/16" x .134"

12шт.

6

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch

6шт.

7

1315484C91

SHAFT

SHAFT ASSEMBLY - final drive

1шт.

8

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

BOLT - wheel (Standard wheels only)

10шт.

3/4 - 16 UNC

1шт.

11

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

SEAL - outer bearing

1шт.

12

283445C91

BEARING ASSY,85.03mm ID x 150.09mm OD x 44.4.5mm W

BEARING ASSEMBLY - outer

1шт.

15

130809C1

SPACER

SPACER - gear

1шт.

16

1342906C1

GEAR

GEAR - drive, 75 teeth

1шт.

P.I.N. JJC0048625 and after

1шт.

16

130885C1

GEAR

GEAR - drive, 66 teeth

1шт.

Prior to P.I.N. JJC0048625

1шт.

17

130808C1

SPACER

SPACER - gear

1шт.

18

66116R91

BEARING ASSY,66.67mm ID x 112.71mm OD x 30.16mm W

BEARING ASSEMBLY - inner

1шт.

21

403896R1

WASHER

WASHER - final drive

1шт.

22

147030R1

SLOTTED NUT

NUT - shaft retaining

1шт.

23

432-840

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

24

403895R1

COVER

COVER - main shaft

1шт.

25

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

CONE - bearing, outer 1-3/4 inch ID

1шт.

26

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

CUP - bearing, outer 3-11/16 inch OD

1шт.

27

1342907C1

SHAFT

SHAFT - pinion

1шт.

P.I.N. JJC0048625 and after

1шт.

27

130884C1

SHAFT

SHAFT - pinion

1шт.

Prior to P.I.N. JJC0048625

1шт.

28

196454C91

BEARING ASSY,57.15mm ID x 30.96mm W

CONE - bearing, inner 2-1/4 inch ID

1шт.

29

360325R1

BEARING, CUP,104.775 mm OD x 23.812 mm

CUP - bearing, inner 4-1/8 inch ID

1шт.

30

94649C2

CAGE

CAGE - inner bearing

1шт.

32

196452C1

OIL SEAL

SEAL - cage

1шт.

33

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

BOLT - hex, 3/8 NC x 1-3/4 inch, Grade 8

3шт.

34

86895C1

SHIM,117.4mm ID x 136.2mm OD x 0.08mm Thk

SHIM - pinion inner bearing

1шт.

86895C1 .08

1шт.

34

86896C1

SHIM,117.4mm ID x 136.2mm OD x 0.13mm Thk

SHIM - pinion inner bearing

1шт.

86896C1.13

1шт.

34

86897C1

SHIM,117.4mm ID x 136.2mm OD x 0.18mm Thk

SHIM - pinion inner bearing

1шт.

86897C1.18

1шт.

34

86898C1

SHIM,117.4mm ID x 136.2mm OD x 0.76mm Thk

SHIM - pinion inner bearing

1шт.

86898C1.76

1шт.

35

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

BOLT, Hex, 3/4"-10 x 2", G8

10шт.

36

392-21075

LOCK WASHER,3/4"

3/4"

14шт.

37

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

BOLT - hex, 3/4 NC x 2-1/4 inch, Grade 8

4шт.

38

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

WASHER, , Flat 13/16" x 1 1/2" x .134", HDN

4шт.

39

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

BUSHING - end plate

4шт.

40

141621

ELBOW,90 Degree, 3/4" NPT Street

ELBOW - 90 degree, 3/4 inch PT (Rice Combines only)

1шт.

41

221-90

REDUCER,3/4" NPT x 1/8" NPT

ADAPTER - 3/4 male x 1/8 inch female PT

2шт.

42

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

FITTING - breather, 1/8 inch PT

2шт.

43

184341C1

SLEEVE

COUPLING ASSEMBLY - axle drive shaft

2шт.

44

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 inch drive type

2шт.

45

27653R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

BOLT - hex drilled, 3/8 NC x 3-1/2 inch

2шт.

46

21864R1

COTTER PIN

PIN - retaining, S Type

2шт.

47

654049R1

LOCK NUT

NUT - hex lock, 3/8 inch NC

2шт.

49

184189C1

SHAFT

SHAFT - final drive

2шт.
