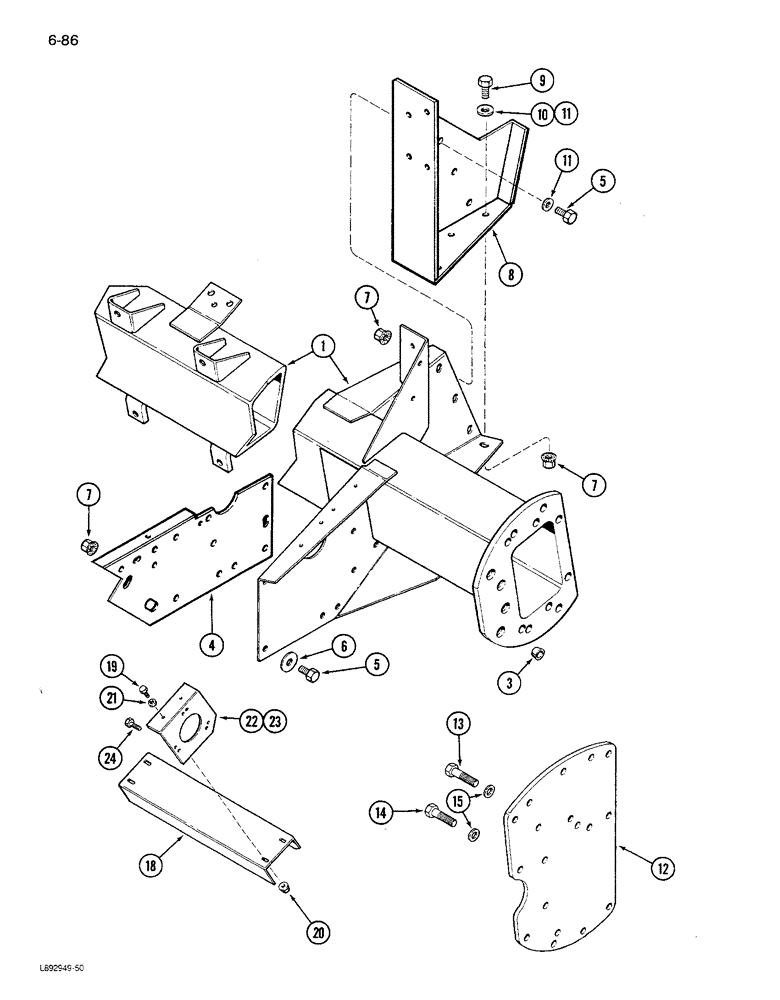

Запчасти Case IH 1680 (6-086) - DRIVE AXLE (03) - POWER TRAIN

1

184450C2

CENTER AXLE

AXLE ASSEMBLY - drive (For dual wheels only)

1шт.

1

1302714C2

CENTER AXLE

AXLE ASSEMBLY - drive

1шт.

For use with combines equipped with track attachment.

1шт.

1

1302437C1

AXLE

ASSEMBLY - drive (For regular tire usage)

1шт.

3

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

- end plate

4шт.

For use with grain, corn and rice combines with tires and dual wheels.

1шт.

4

REF

INSTRUCTION

SUPPORT - separator side, right (See Figure 9H-10, 9H- 12)

1шт.

5

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, Grade 8

1шт.

6

195-2203

WASHER,21/32" x 2" x .238"

- flat, 21/32 x 2 x 11/64 inch

1шт.

7

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

1шт.

8

REF

INSTRUCTION

POST - separator front, right (See Figures 9H-10, 9H-12)

1шт.

9

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

1шт.

10

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch

1шт.

11

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

1шт.

12

186832C1

PLATE

- flange, outer pivot

2шт.

For use with combines equipped with track attachment.

1шт.

13

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4 NC x 3 inch, Grade 8

4шт.

For use with combines equipped with track attachment.

1шт.

14

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, Grade 8

10шт.

For use with combines equipped with track attachment.

1шт.

15

25548R1

WASHER

- flat, 13/16 x 1-1/2 x 9/64 inch

14шт.

For use with combines equipped with track attachment.

1шт.

18

1338130C1

SHIELD

- drive axle shaft

2шт.

For use with combines equipped with track attachment.

1шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

For use with combines equipped with track attachment.

1шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

For use with combines equipped with track attachment.

1шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

4шт.

For use with combines equipped with track attachment.

1шт.

22

186016C2

SUPPORT

BRACKET - support, shield left

1шт.

For use with combines equipped with track attachment.

1шт.

23

186017C2

SUPPORT

BRACKET - support, shield right (Shown)

1шт.

For use with combines equipped with track attachment.

1шт.

24

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

6шт.

For use with combines equipped with track attachment.

1шт.

182982C1

SUPPORT

BRACKET mounting, 3rd cylinder

1шт.
