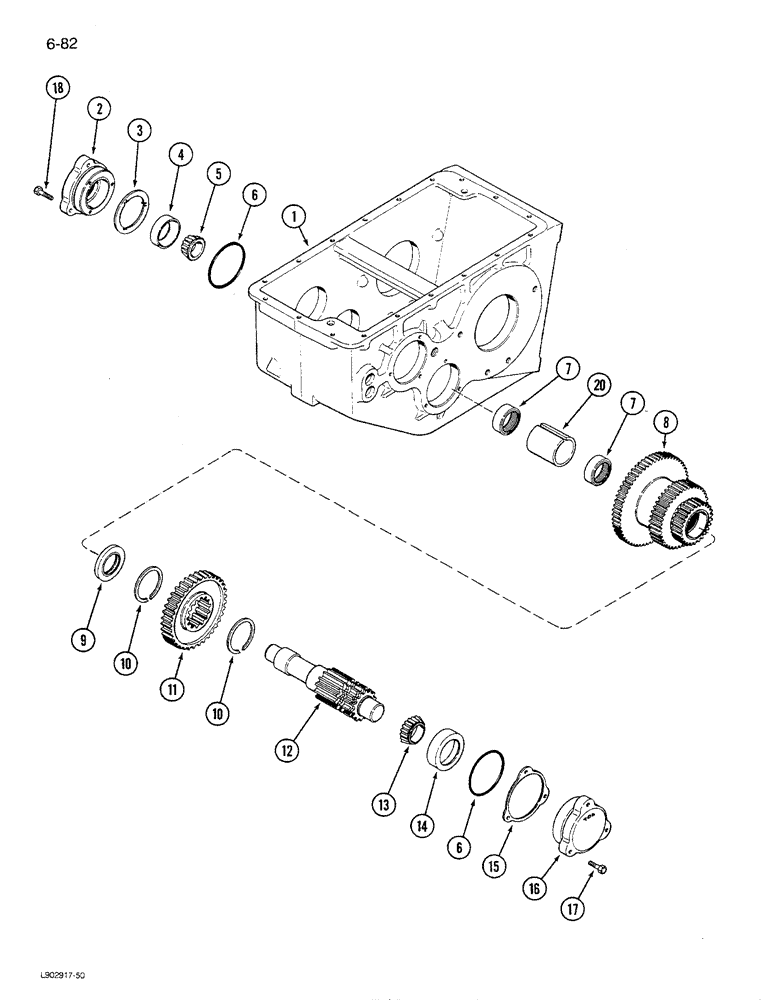

Запчасти Case IH 1680 (6-082) - TRANSMISSION DIFFERENTIAL, PINION SHAFT AND GEARS (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HOUSING - transmission (See Figure 6-80)
1шт.
2
188893C1
BEARING COVER,59.75 mm ID x 101.51 mm OD x 47.5 mm
HOUSING - bearing, left
1шт.
3
530704R2
THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk
- thrust
1шт.
4
131312C1
BEARING CUP
CUP - bearing, left pinion shaft
1шт.
5
871244R1
ROLLER BEARING
CONE - bearing, left pinion shaft
1шт.
6
238-5240
O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro
2шт.
7
A61415
NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W
BEARING - spool gear
2шт.
8
530699R1
PINION
GEAR - spool, 59, 39 and 27 teeth
1шт.
10
196693H1
RING
- change gear snap
2шт.
11
1349026C1
GEAR
- change driven, 36 teeth
1шт.
P.I.N. JJC0048625 and After for Corn, Grain and Rice Combines with tracks.
1шт.
11
1342935C1
GEAR
- change driven, 39 teeth
1шт.
P.I.N. JJC0048625 and After for Rice Combines with tires.
1шт.
11
130752C1
GEAR
- change driven, 39 teeth
1шт.
Prior to P.I.N. JJC0048625 for Corn, Grain and Rice Combines with tracks.
1шт.
11
130750C1
GEAR
- change driven, 42 teeth
1шт.
Prior to P.I.N. JJC0048625
1шт.
12
401878R1
SHAFT
- pinion, 14 teeth
1шт.
13
ST791
TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"
CONE - bearing, right pinion shaft
1шт.
14
ST951
TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"
CUP - bearing, right pinion shaft
1шт.
15
401883R1
SHIM
- bearing, 0.003 inch
1шт.
15
401884R1
SHIM
- bearing, 0.005 inch
1шт.
15
401885R1
SHIM
- bearing, 0.007 inch
1шт.
15
184195C1
SHIM
- bearing, 0.030 inch
1шт.
16
403363R1
BEARING CAP,73.4 mm ID x 101.5 mm OD x 54.1 mm
CAGE - bearing, right
1шт.
17
413-622
BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5
- hex, 3/8 NC x 1-3/8 inch
3шт.
18
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
3шт.
20
1981198C1
SPACER
- spool gear
1шт.
Выбрано товаров: 29
