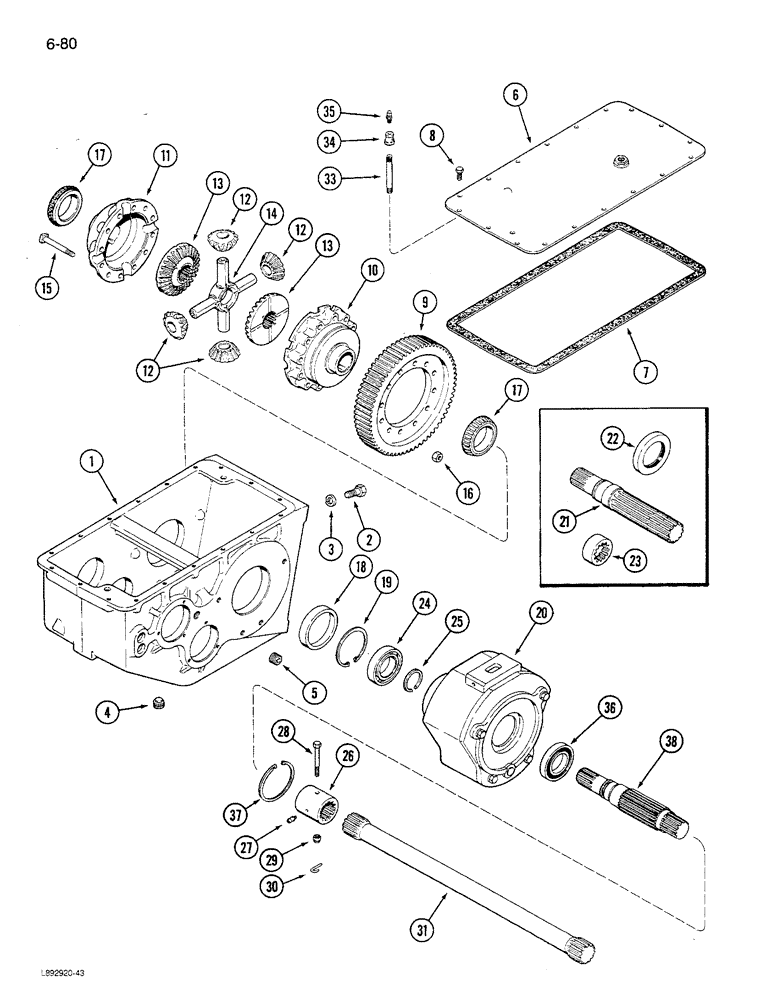

Запчасти Case IH 1680 (6-080) - TRANSMISSION, HOUSING AND DIFFERENTIAL (03) - POWER TRAIN

1

401873R2

HOUSING

- transmission

1шт.

2

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

4шт.

3

392-21062

LOCK WASHER,5/8"

5/8"

4шт.

3

366866C1

LOCK WASHER,5/8"

(Optional to 392-21062) 5/8"

4шт.

4

1963920C1

PLUG

- drain, magnetic, 3/4 inch PT (Replaces 320185C1)

1шт.

5

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - square socket, 3/4 inch PT

1шт.

6

184167C1

COVER ASSY

COVER - housing

1шт.

7

401860R1

GASKET

- housing cover

1шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

15шт.

9

404085R1

GEAR

- differential driven, 66 teeth

1шт.

1968235C1

DIFFERENTIAL

ASSEMBLY - transmission

1шт.

404081R1

CASE ASSY.

HOUSING KIT - differential

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - differential, right (Order 404081R1)

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - differential, left (Order 404081R1)

1шт.

12

361061R3

PINION

GEAR - differential pinion, 15 teeth

4шт.

13

404084R1

PINION

GEAR - differential bevel, 28 teeth

2шт.

14

393637R2

DIFF. SPIDER

SPIDER - differential

1шт.

15

404171R2

BOLT,1/2" - 20 x 4"

BOLT - differential housing

12шт.

16

381368R1

NUT,Hex, 1/2" - 20, Gr 8

- hex special, 1/2 inch NF

12шт.

17

ST2096

BEARING ASSY,73.03mm ID x 25.4mm W

CONE - bearing, differential

2шт.

18

ST981

BEARING CONE,112.71mm OD x 19.05mm W

CUP - bearing, differential

2шт.

19

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, 3.938", Int, #393

2шт.

20

REF

INSTRUCTION

HOUSING - brake (See Figure 7-004)

2шт.

21

184178C1

SHAFT

- differential

2шт.

Prior to P.I.N. JJC0048625

1шт.

22

401872R91

SEAL,73.03mm ID x 110.24mm OD x 11.1mm Thk

- brake housing cover

2шт.

Prior to P.I.N. JJC0048625

1шт.

23

184214C1

SPLINED COUPLING

SLEEVE - seal wear

2шт.

Prior to P.I.N. JJC0048625

1шт.

24

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

BEARING - ball, differential shaft

2шт.

25

358059R1

SNAP RING

RING - bearing snap

2шт.

26

184341C1

SLEEVE

COUPLING ASSEMBLY - axle

4шт.

27

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 inch drive type

1шт.

28

27653R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

- hex, 3/8 NC x 3-1/2 inch, drilled, Grade 8

4шт.

29

654049R1

LOCK NUT

- hex flex lock, 3/8 inch NC

4шт.

30

21864R1

COTTER PIN

- S Type retainer

4шт.

31

184189C1

SHAFT

- final drive (Rubber tire)

2шт.

31

184225C1

SHAFT

- final drive (Track)

2шт.

33

221-1114

LUBE NIPPLE,1/8" NPT x 4 1/2"

NIPPLE, LUBE, , Extension - pipe 1/8" NPT x 4 1/2"

1шт.

34

144098

REDUCER

NIPPLE - reducing, 1/4 to 1/8 inch PT

1шт.

35

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

FITTING - housing breather

1шт.

36

574273R91

BEARING ASSY,2.1654" ID x 3.937" OD x 0.8268"

- housing cover

2шт.

P.I.N. JJC0048625 and after

1шт.

36

D37968

BALL BEARING

BEARING - housing cover

2шт.

P.I.N. JJC0047692 and after

1шт.

37

184131C1

SNAP RING,#393, 4.234", Int

RING - bearing retaining

2шт.

P.I.N. JJC0048625 and after

1шт.

38

1342912C1

SHAFT

- differential

2шт.

P.I.N. JJC0048625 and after

1шт.
