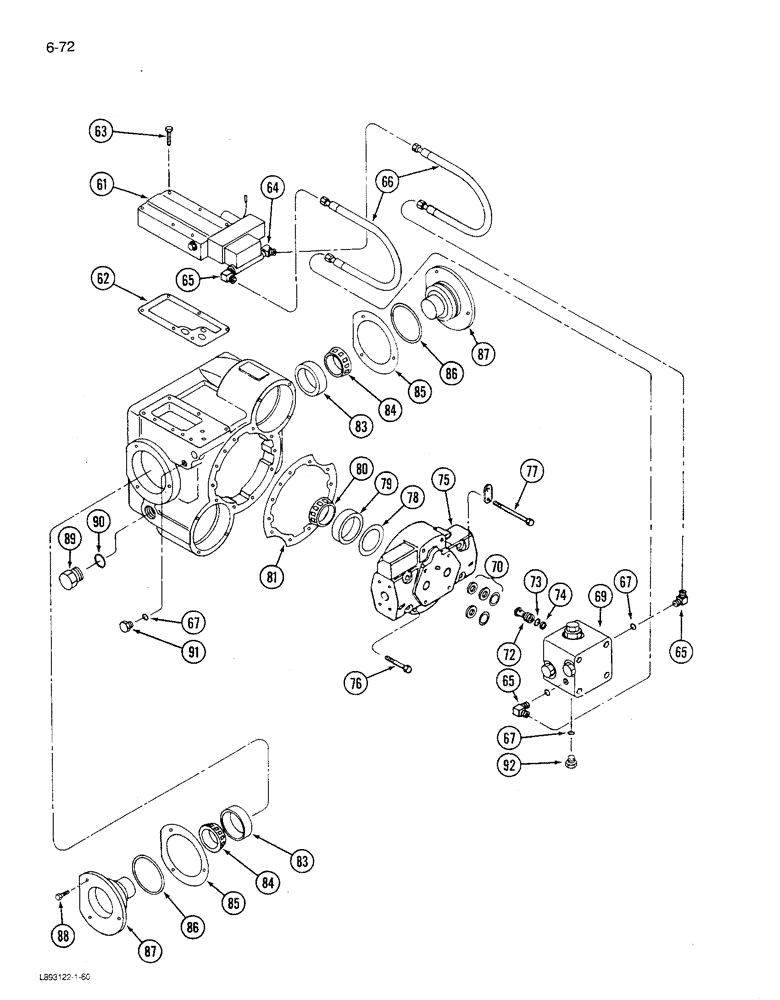

Запчасти Case IH 1680 (6-072) - HYDROSTATIC MOTOR ASSEMBLY, TWO SPEED, CORN AND GRAIN COMBINE, P.I.N. JJC0047918 & AFTER (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, continued

1шт.

61

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 6-74)

1шт.

62

145337C1

GASKET

- control valve

1шт.

63

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

64

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree adjustable, 7/16-20 thread

1шт.

65

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 thread

2шт.

66

175760C1

HOSE ASSY.

HOSE -, Serial Range: valve-block

2шт.

67

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

4шт.

69

REF

INSTRUCTION

BLOCK ASSEMBLY - relief (See Figure 6-76)

1шт.

70

140747C91

SEAL KIT

SEAL KIT - valve block (See Figure 6-76)

1шт.

72

140769C1

CHECK VALVE

VALVE - check

2шт.

73

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

74

140770C1

RING

- check valve backup

2шт.

75

NSS

NOT SOLD SEPARAT

HOUSING - end cover

1шт.

76

426-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

- hex, 7/16 NC x 2 inch, Grade 8

2шт.

77

113-347

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

142398C91

SHIM KIT

- end cover, Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.003 inch

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.005 inch

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.010 inch

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.015 inch

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.020 inch

1шт.

78

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.030 inch

1шт.

79

530741R1

BEARING CUP

CUP - bearing, input shaft 2-17/32 inch OD

1шт.

80

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

CONE - bearing, input shaft 1-3/16 inch ID

1шт.

81

140756C2

GASKET

- end cover

1шт.

83

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - bearing, trunnion 2-57/64 inch OD

2шт.

84

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE - bearing, trunnion 1-25/32 inch ID

2шт.

142386C91

SHIM KIT

- trunnion bearing, Includes: Ref. 85

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM - trunnion, 0.002 inch (6 in kit)

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM - trunnion, 0.005 inch (4 in kit)

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM - trunnion, 0.010 inch (4 in kit)

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM - trunnion, 0.015 inch (4 in kit)

1шт.

85

NSS

NOT SOLD SEPARAT

SHIM - trunnion, 0.025 inch (4 in kit)

1шт.

86

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

87

NSS

NOT SOLD SEPARAT

TRUNNION - motor

2шт.

88

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

- hex, 7/16 NC x 7/8 inch

6шт.

89

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4 tube Hex Hd, 1 1/16"-12 ORB

1шт.

90

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

91

1288962C1

PLUG

- hex socket

1шт.

92

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.
