Запчасти Case IH 1680 (6-070) - HYDROSTATIC MOTOR ASSEMBLY, TWO SPEED, CORN AND GRAIN COMBINE, P.I.N. JJC0047918 & AFTER (CONTD) (03) - POWER TRAIN

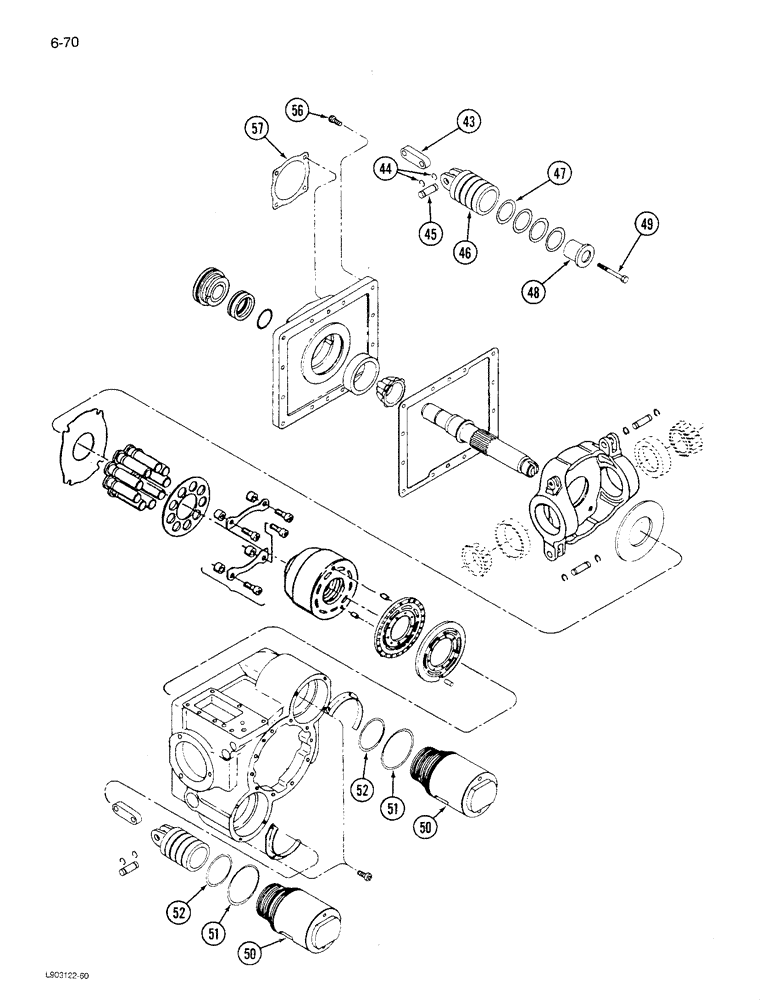

Схема запчастей Case IH 1680 - (6-070) - HYDROSTATIC MOTOR ASSEMBLY, TWO SPEED, CORN AND GRAIN COMBINE, P.I.N. JJC0047918 & AFTER (CONTD) (03) - POWER TRAIN
52
50
46
52
44
47
49
43
51
50
48
57
56
45
51

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, continued

1шт.

145308C1

PISTON

ASSEMBLY - servo, Includes: Ref. 43 - 49

1шт.

43

NSS

NOT SOLD SEPARAT

LINK - piston servo

1шт.

44

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

45

NSS

NOT SOLD SEPARAT

PIN - link

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON - servo

1шт.

47

NSS

NOT SOLD SEPARAT

SHIM - servo piston

4шт.

48

NSS

NOT SOLD SEPARAT

SPACER - servo piston

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - hex, Serial Range: spacer-piston

1шт.

50

142407C1

KIT

SLEEVE - servo

2шт.

51

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

52

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

56

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

12шт.

57

166506C1

GASKET,0.81mm Thk

- mounting

1шт.

Выбрано товаров: 14
