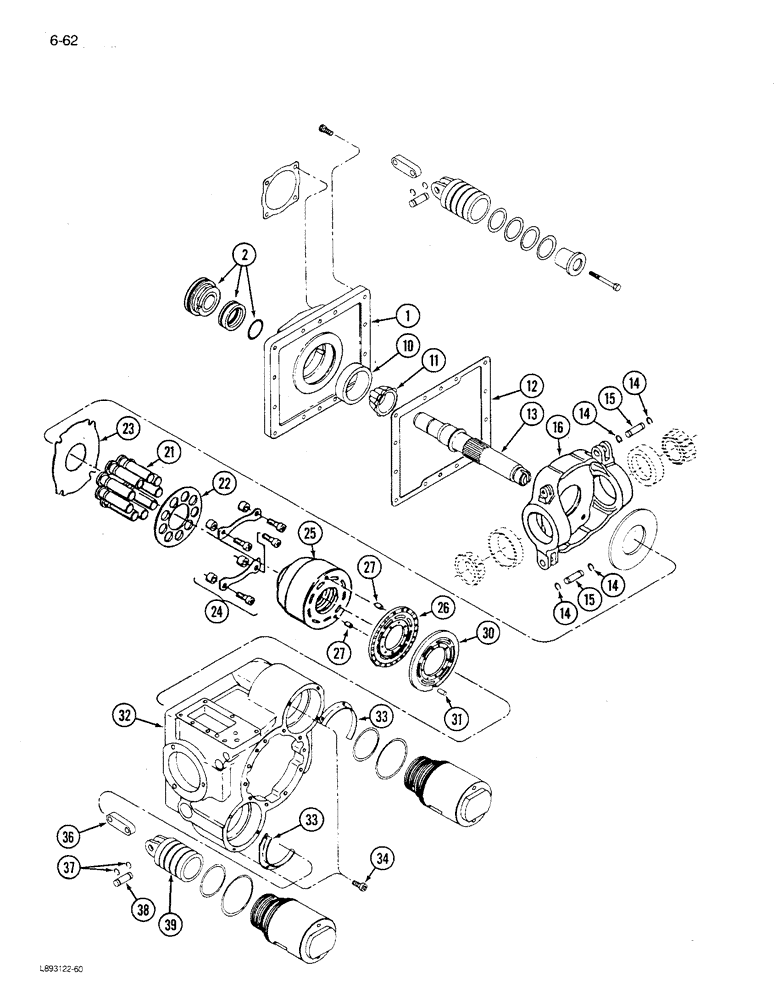

Запчасти Case IH 1680 (6-062) - HYDROSTATIC MOTOR ASSEMBLY, TWO SPEED, CORN, GRAIN AND RICE, PRIOR TO P.I.N. JJC0047918 (03) - POWER TRAIN

1958084C1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new

1шт.

1958085C1

REMAN-HYDROSTAT MOTO

Motor Assembly - hydrostatic, remanufactured

1шт.

1958086C1

CORE-HYDROSTAT MOTOR

Return Number - use this part number to return motor core for credit

1шт.

1

NSS

NOT SOLD SEPARAT

FLANGE - mounting

1шт.

2

1346205C1

SEAL KIT

SEAL ASSEMBLY - shaft

1шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - bearing, housing

1шт.

11

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

CONE - bearing, input shaft

1шт.

12

142399C1

GASKET

- mounting flange

1шт.

13

1980137C1

SHAFT

- input

1шт.

14

142408C1

RETAINER

- servo

4шт.

15

140766C1

PIN,14.22mm OD x 39.12mm L

- servo linkage

2шт.

16

1980174C1

HOUSING

PLATE - swash, variable

1шт.

1980175C1

KIT

ROTATING KIT - cylinder, Includes: Ref. 21 - 27

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

22

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - retainer, clear

1шт.

24

NSS

NOT SOLD SEPARAT

HOLD DOWN KIT - cylinder

1шт.

25

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

27

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

30

1980139C1

PLATE

- valve

1шт.

31

140754C1

PIN

- dowel, 5/16 x 5/8 inch

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

33

142408C1

RETAINER

- servo

2шт.

34

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

SCREW - hex socket, No. 8 NC x 3/8 inch

6шт.

145309C1

PISTON

ASSEMBLY - servo, Includes: Ref. 36 - 39

1шт.

36

NSS

NOT SOLD SEPARAT

LINK - piston servo

1шт.

37

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

38

NSS

NOT SOLD SEPARAT

PIN - link

1шт.

39

NSS

NOT SOLD SEPARAT

PISTON - servo

1шт.
