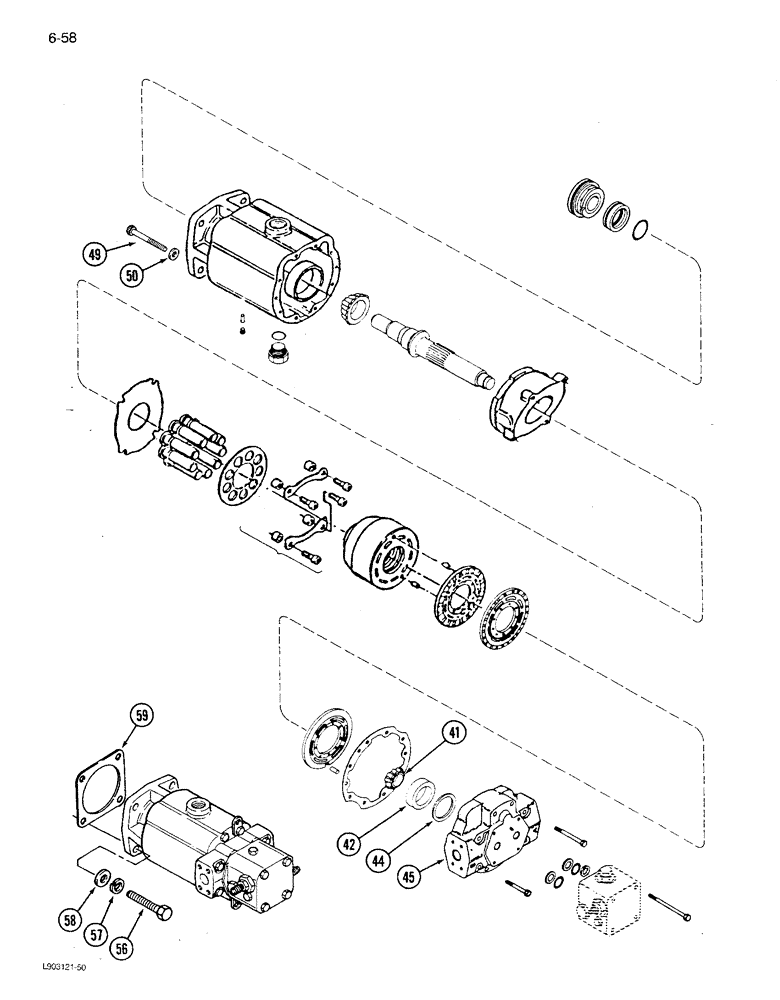

Запчасти Case IH 1680 (6-058) - HYDROSTATIC MOTOR ASSEMBLY, SINGLE SPEED, CORN, GRAIN AND RICE, P.I.N. JJC0047918 & AFTER (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, continued

1шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

CONE - bearing, output shaft, 1-13/16 inch ID

1шт.

42

530741R1

BEARING CUP

CUP - bearing, output shaft, 2-17/32 inch OD

1шт.

142398C91

SHIM KIT

- bearing, Includes: Ref. 44

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

45

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

49

61-548

HEX SOC SCREW,5/16"-18 x 3"

BOLT - hex socket head, 5/16 NC x 3 inch

2шт.

50

92734C1

SEALING WASHER

- sealing

2шт.

56

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

58

283856C1

WASHER

- flat, 17/32 x 1 x 5/64 inch

4шт.

59

166506C1

GASKET,0.81mm Thk

- mounting

1шт.
