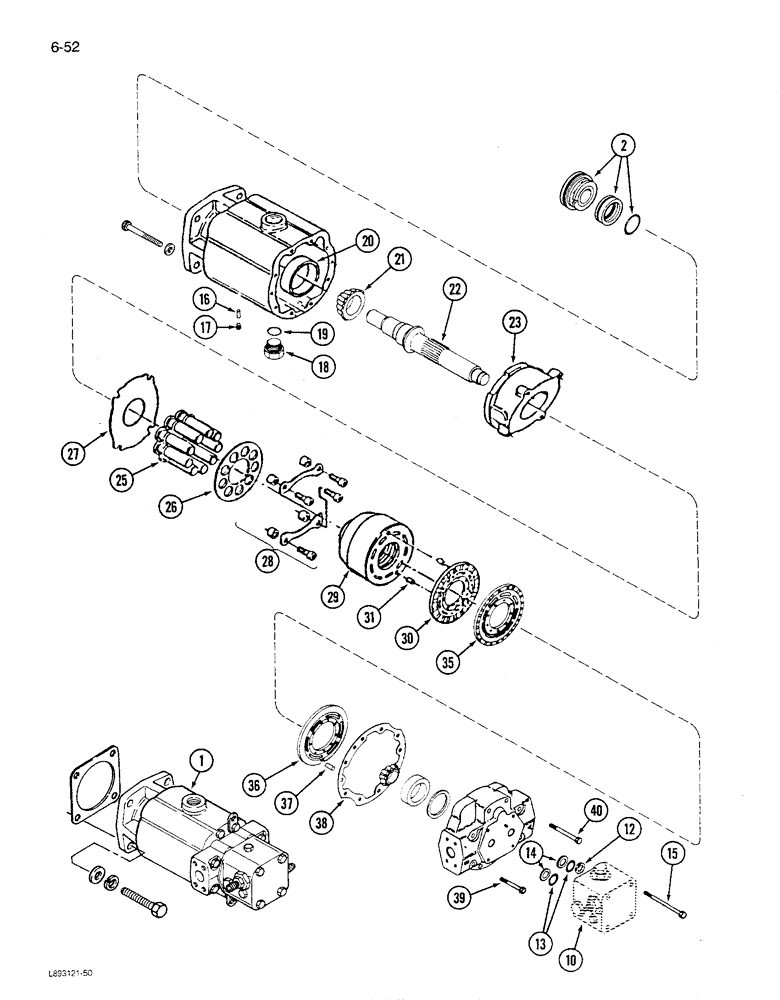

Запчасти Case IH 1680 (6-052) - HYDROSTATIC MOTOR ASSEMBLY, SINGLE SPEED, CORN, GRAIN AND RICE, PRIOR TO P.I.N. JJC0047918 (03) - POWER TRAIN

1

1958081C1

PUMP, HYDROSTATIC

MOTOR ASSEMBLY - hydrostatic, new

1шт.

87411135R

REMAN-HYDROSTAT PUMP

1680 (S/N JJC0045689 & AFTER) PRIOR TO P.I.N. JJC0047918 (1/86-12/92), Reman For New P/N 1958081C1

1шт.

87411135C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1958082C1

REMAN-HYD MOTOR

MOTOR ASSEMBLY - hydrostatic, remanufactured (North America only)

1шт.

87411135R

REMAN-HYDROSTAT PUMP

1680 (S/N JJC0045689 & AFTER) PRIOR TO P.I.N. JJC0047918 (1/86-12/92), Reman For New P/N 1958082C1

1шт.

87411135C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1958083C1

CORE-MOTOR HYDRAULIC

RETURN NUMBER, N.A. Only - use this part number to return motor core for credit

1шт.

2

1346205C1

SEAL KIT

SEAL ASSEMBLY - shaft

1шт.

10

REF

INSTRUCTION

BLOCK ASSEMBLY - relief valve (See Figure 6-60)

1шт.

140747C91

SEAL KIT

SEAL KIT - valve block, Includes: Ref. 12 -14

1шт.

12

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- square, 3/4 x 7/8 x 1/16 inch

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

- backup

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

16

20020R1

DOWEL,5/16" x 1"

PIN - dowel, 5/16 inch

1шт.

17

444688

PLUG

- solid head, 1/8 inch PT

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy Hex Hd, 1 1/16"-12 ORB

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D. tube

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - bearing, output shaft

1шт.

21

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

CONE - bearing, output shaft

1шт.

22

1980137C1

SHAFT

- output

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - swash, fixed

1шт.

1980138C1

KIT

ROTATING KIT - cylinder, Includes: Ref. 25 - 30

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

HOLD DOWN KIT - plate

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

31

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

35

142395C1

PLATE

- bearing

1шт.

36

1980139C1

PLATE

- valve

1шт.

37

140754C1

PIN

- dowel, 5/16 x 5/8 inch

5шт.

38

1980140C1

GASKET,0.38mm Thk

- end cover

1шт.

39

113-350

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch

2шт.

40

113-347

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.
