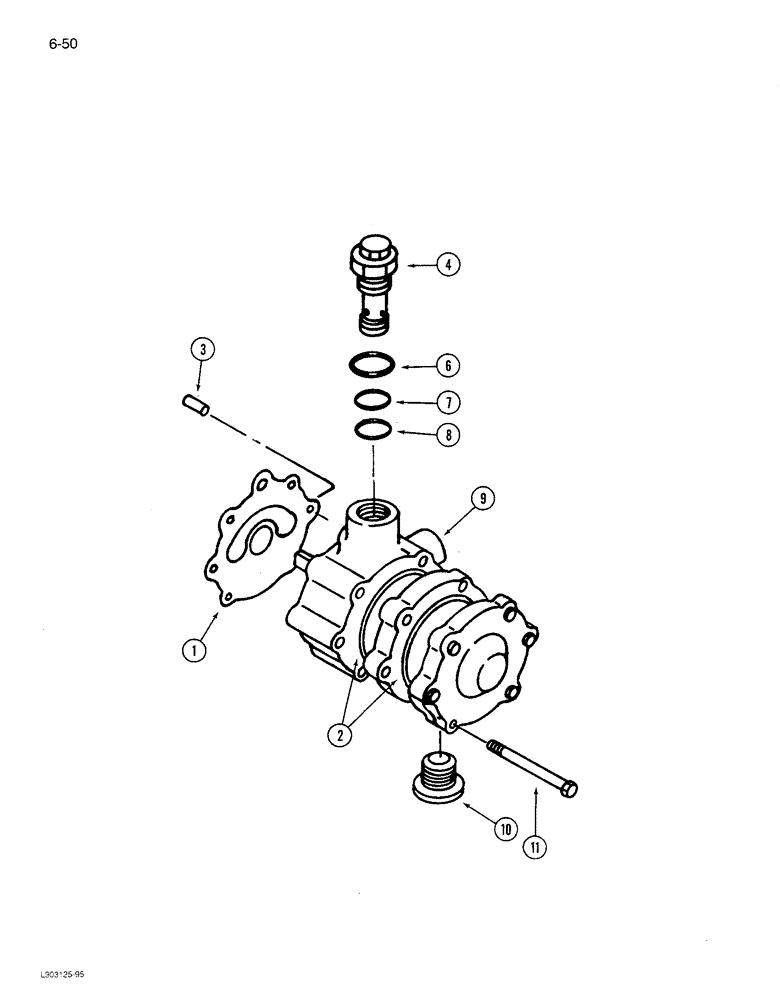

Запчасти Case IH 1680 (6-050) - HYDROSTATIC PUMP ASSEMBLY, CHARGE PUMP (16 GPM) (03) - POWER TRAIN

1986740C1

PUMP, HYDROSTATIC

PUMP ASSEMBLY - charge (16 GPM)

1шт.

For use with all rice combines P.I.N. JJC0047918 and after.

1шт.

1

1986882C1

GASKET

- charge pump (Replaces 133760C2)

1шт.

2

G104039

O-RING,2.989" ID x 3.129" OD

- spacer, 3 x 3-1/8 x 1/16 inch

2шт.

3

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

1986741C1

VALVE PRESSURE RELIE

VALVE ASSEMBLY - low pressure relief

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1/64 inch

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump (Order 133761C91)

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - pump (Order 133761C91)

1шт.

11

326-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8

4шт.
