Запчасти Case IH 1680 (6-046) - HYDROSTATIC PUMP ASSEMBLY, CONTROL VALVE (03) - POWER TRAIN

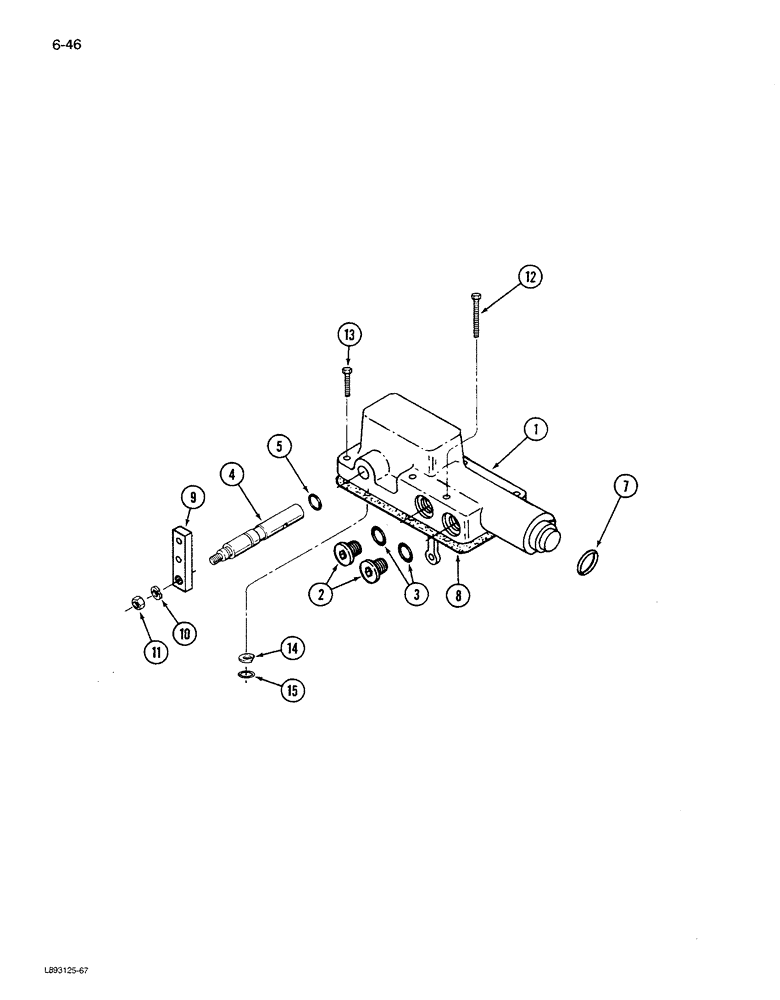

Схема запчастей Case IH 1680 - (6-046) - HYDROSTATIC PUMP ASSEMBLY, CONTROL VALVE (03) - POWER TRAIN
13
11
10
7
1
8
12
2
14
5
3
9
15
4

Артикул

Название

Примечание

Количество

133755C94

VALVE

ASSEMBLY - control, pump, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - pump (Order 133755C94)

1шт.

2

1288963C1

PLUG

- hex socket, 9/16-18 inch thread

2шт.

4

1978048C3

KIT

SHAFT ASSEMBLY - control valve, Includes: Ref. 5

1шт.

The C3 version includes the Control Shaft Set Screw P/N 1978048C2 (not illustrated in the Combine Parts Book) to hold the control shaft in postion and is inserted under the valve body. The Set Screw is shown in 2155 Cotton Picker parts book p. 6-24 Ref. 14 but is NSS. The Set Screw can be ordered through Eaton. The Eaton P/N for the Set Screw is 101128. Randy Carlz has asked Engineering to review adding this hex socket screw to the kit.

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

7

80269C1

O-RING KIT

O-RING - 5/8 x 3/4 x 1/16 inch

1шт.

8

133756C1

GASKET

- mounting, control valve

1шт.

9

404782R2

PLATE

- control valve shaft

1шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

11

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex jam lock, 5/16 inch NC

1шт.

12

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

14

1272750C1

ORIFICE

VENT - control valve

1шт.

15

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

Выбрано товаров: 16
