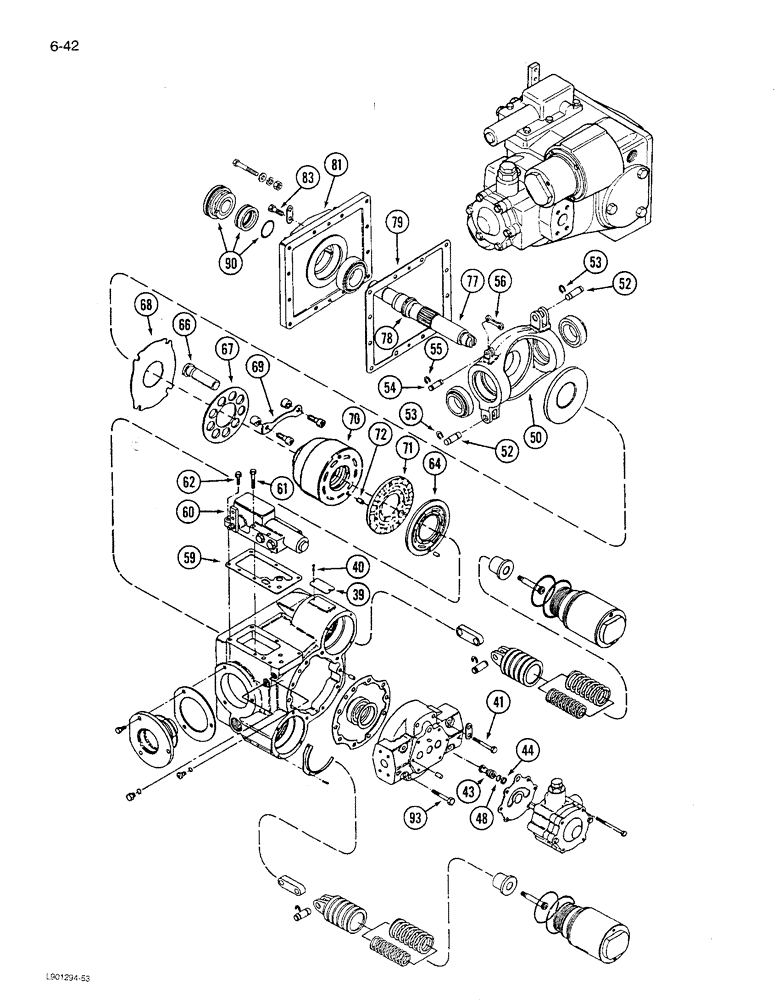

Запчасти Case IH 1680 (6-042) - HYDROSTATIC PUMP ASSEMBLY, W/ SINGLE SPEED MOTOR, RICE COMBINE, P.I.N. JJC0047918 & AFTER (CONTD) (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
PUMP ASSEMBLY - hydrostatic, continued
1шт.
39
NSS
NOT SOLD SEPARAT
PLATE - identification
1шт.
40
NSS
NOT SOLD SEPARAT
SCREW - drive, identification plate
2шт.
41
24855R1
BOLT,Hex, 7/16" - 14 x 3", Gr 8
- hex, 7/16 NC x 3 inch
6шт.
48
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
2шт.
50
1980171C1
HOUSING
PLATE - swash
1шт.
52
140766C1
PIN,14.22mm OD x 39.12mm L
- servo linkage
2шт.
53
142408C1
RETAINER
- servo
4шт.
54
140765C1
PIN
- link, control valve
1шт.
55
A7111
SNAP RING,#25, Ext
Ring, Snap, , control valve link pin #25, Ext
2шт.
56
142402C1
LINK
- connecting, control valve
1шт.
59
133756C1
GASKET
- control valve
1шт.
60
REF
INSTRUCTION
VALVE - control (See Figure 6-46)
1шт.
61
25750R1
BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8
- hex, 5/16 NC x 1-3/4 inch
2шт.
62
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- hex, 5/16 NC x 1 inch
4шт.
64
1346255C1
PLATE
- motor valve
1шт.
1346254C1
KIT
ROTATING KIT - cylinder, Includes: Ref. 66 - 72
1шт.
66
NSS
NOT SOLD SEPARAT
PISTON - cylinder block
9шт.
67
NSS
NOT SOLD SEPARAT
PLATE - retaining
1шт.
68
NSS
NOT SOLD SEPARAT
PLATE - retaining, clear
1шт.
69
NSS
NOT SOLD SEPARAT
HOLD DOWN KIT - piston
1шт.
70
NSS
NOT SOLD SEPARAT
BARREL - cylinder
1шт.
71
NSS
NOT SOLD SEPARAT
PLATE - bearing
1шт.
72
140754C1
PIN
- dowel, 5/16 x 5/8 inch
7шт.
77
1980169C1
SHAFT
ASSEMBLY - input, Includes: Ref. 78
1шт.
78
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
79
142399C1
GASKET
- mounting flange
1шт.
81
NSS
NOT SOLD SEPARAT
FLANGE - mounting (Order assembly)
1шт.
83
13-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd
12шт.
90
1346205C1
SEAL KIT
SEAL ASSEMBLY - shaft
1шт.
93
426-732
BOLT,Hex, 7/16" - 14 x 2", Gr 8
- hex, 7/16 NC x 2 inch, Grade 8
2шт.
Выбрано товаров: 33
