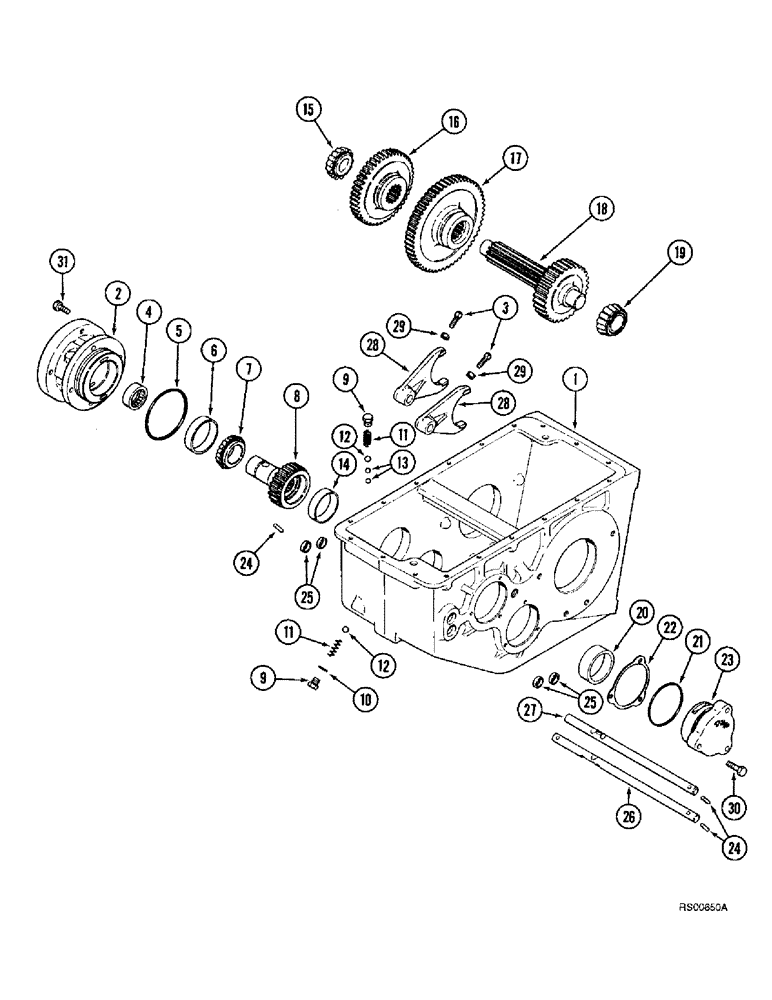

Запчасти Case IH 1680 (6-70) - TRANSMISSION, INPUT SHAFT GEARS AND SHIFTER RAILS (03) - POWER TRAIN

1

401873R2

HOUSING

- transmission, See Figure 6-66

1шт.

2

180944C1

HOUSING ASSY.

HOUSING - input shaft

1шт.

3

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW - set, 3/8 NF x 1 inch

2шт.

4

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle, 1-3/4 inch OD

1шт.

5

238-5348

O-RING,0.21" Thk x 4.35" ID, -348, Cl 5, 75 Duro

1шт.

6

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD

1шт.

7

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

CONE - tapered roller bearing, 1-25/32 inch ID

1шт.

8

401890R1

SHAFT

- gear, input pinion, 26 teeth

1шт.

9

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 10 Hex Hd, 9/16"-18 ORB

2шт.

11

64600C1

SPRING

- shifter detent

2шт.

12

211-1016

BALL,12.7mm OD, Gr 24

- chrome alloy steel, 1/2 inch, grade 24

2шт.

13

211-1014

BALL,7/16" Dia

- chrome alloy steel, 7/16 inch, grade 24

2шт.

14

50213V

BEARING CUP

CUP - tapered roller bearing, 2-3/4 inch OD

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

CONE - tapered roller bearing, 1-5/16 inch ID

1шт.

16

530700R1

GEAR

- second and third sliding, 26 and 46 teeth

1шт.

17

401889R1

GEAR

- first sliding, 58 teeth

1шт.

18

130753C3

GEAR

SHAFT - gear change, 34 teeth

1шт.

18

130751C3

SHAFT

- gear change, 31 teeth

1шт.

19

290099C91

TAPERED BEARING,39.69mm ID x 22.1mm W

CONE - tapered roller bearing, 2-7/8 inch OD

1шт.

20

290100C1

BEARING CUP,73.05mm OD x 17.78mm W

CUP - tapered roller bearing, 1-9/16 inch ID

1шт.

21

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

22

401883R1

SHIM

- .003 inch thick

1шт.

22

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

(0.005") 0.127mm Thk

1шт.

22

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

(0.007") 0.178mm Thk

1шт.

22

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

(0.030") 0.762mm Thk

1шт.

23

130791C1

BEARING CAP,65.5 mm ID x 101.51 mm OD x 58.7 mm

- bearing retainer

1шт.

24

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

1шт.

25

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- oil

4шт.

26

121658C4

SHAFT

- second and third gear shifter

1шт.

27

121659C2

SHAFT

- first gear shifter

1шт.

28

401897R2

FORK

- gear shifter

1шт.

29

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

2шт.

30

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

3шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
