Запчасти Case IH 1680 (6-60) - HYDROSTATIC MOTOR, CONTROL BLOCK, TWO SPEED (03) - POWER TRAIN

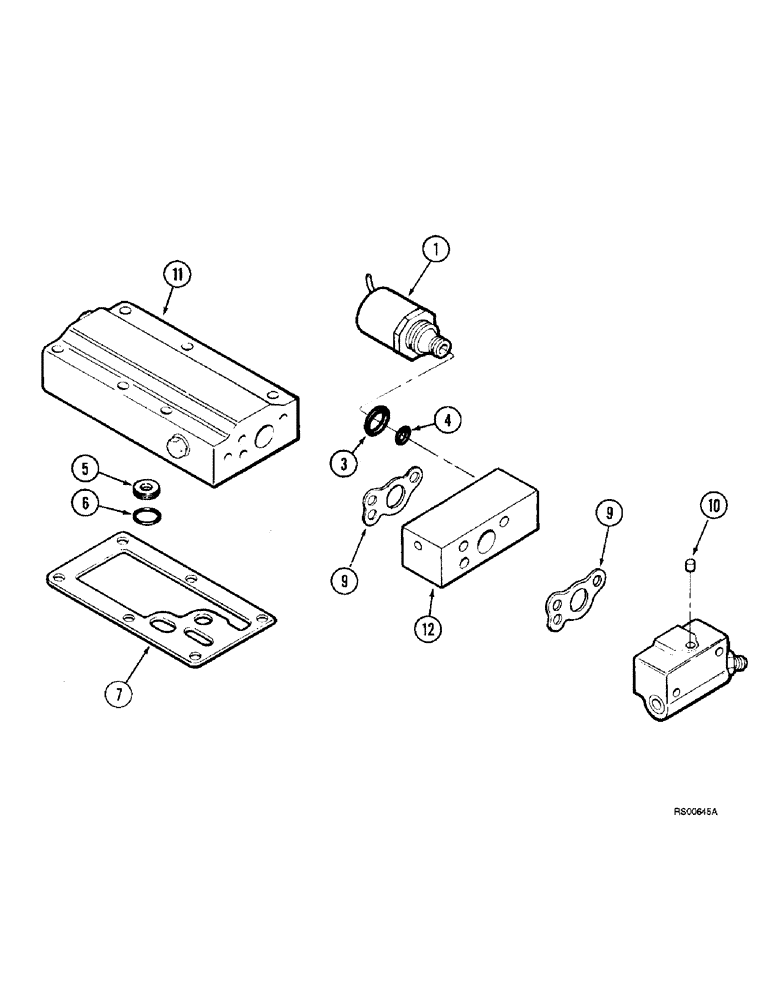

Схема запчастей Case IH 1680 - (6-60) - HYDROSTATIC MOTOR, CONTROL BLOCK, TWO SPEED (03) - POWER TRAIN
9
10
6
1
11
3
4
7
12
9
5

Артикул

Название

Примечание

Количество

145336C92

VALVE

ASSEMBLY - motor control, Includes: Ref. 1 - 13

1шт.

1

145338C2

SOLENOID

- control valve, Includes: Ref. 3 & 4

1шт.

REF: #2 - 145338C2 - PARTS IN THIS CAN BE ORDERED SEPARATELY -

1шт.

255834A1 - VALVE CARTRIDGE

1шт.

298985A1 - SOLENOID 2 - SPEED

1шт.

298986A1 - NUT - 1/2 - 20 NF - 1/4 THICK

1шт.

SEAL KIT FOR 145338C2 IS 1542831C1.

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

5

1343662C1

ORIFICE

- control valve, 0.057 inch, replaces 92647C1 orifice

1шт.

To replace 92647C1 on 1680 combines use (1) 1343662C1 orifice and (1) 238-5012 O-ring. 1343661C1 orifice is used on 1640 and 1660 combines only.

1шт.

5

1343661C1

ORIFICE

- control valve, 0.044 inch

1шт.

To replace 92647C1 on 1680 combines use (1) 1343662C1 orifice and (1) 238-5012 O-ring. 1343661C1 orifice is used on 1640 and 1660 combines only.

1шт.

6

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk (Replaces 92647C1 O-ring)

1шт.

To replace 92647C1 on 1680 combines use (1) 1343662C1 orifice and (1) 238-5012 O-ring. 1343661C1 orifice is used on 1640 and 1660 combines only.

1шт.

7

145337C1

GASKET

- control valve

1шт.

92649C1

KIT

- service, control valve body plug, Includes: Ref. 9 & 10

1шт.

9

1272954C1

GASKET,0.43mm Thk

- valve body

2шт.

10

NSS

NOT SOLD SEPARAT

PLUG - body, valve

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

12

NSS

NOT SOLD SEPARAT

BLOCK - valve

1шт.

13

NSS

NOT SOLD SEPARAT

END - valve

1шт.

Выбрано товаров: 22
