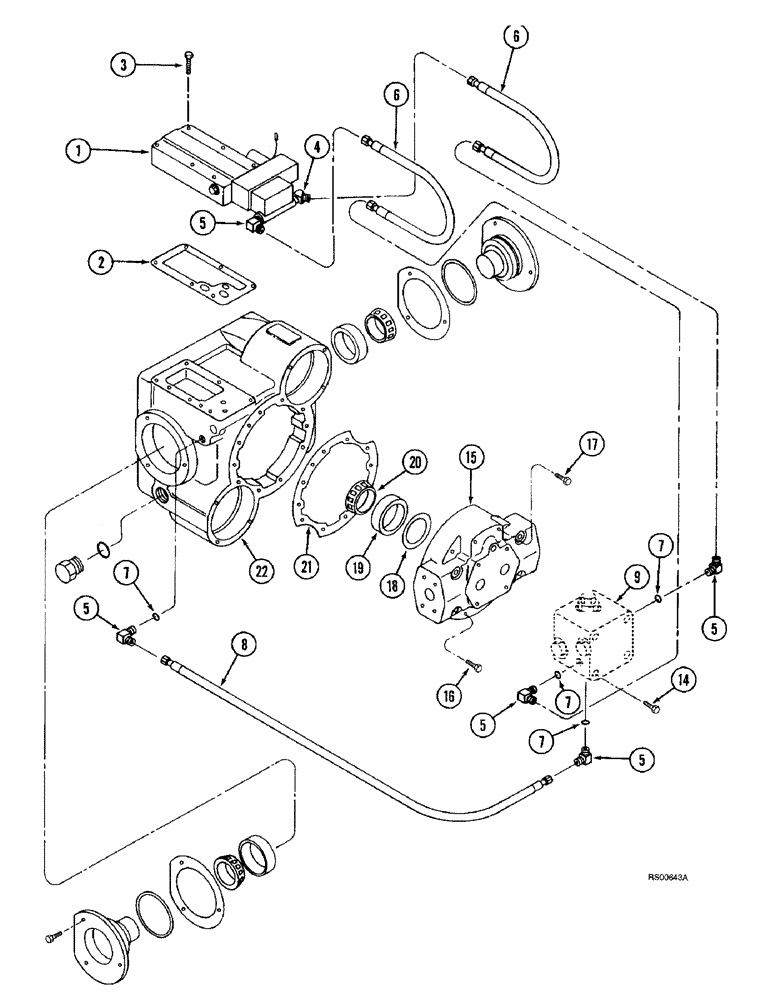

Запчасти Case IH 1680 (6-56) - HYDROSTATIC MOTOR, VALVE BLOCK, TWO SPEED (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic two speed, Includes: Ref. 1 - 22, 1 - 39 on Figure 6-52, 43 - 52 on Figure 6-54 and 23 - 30 on Figure 6-58

1шт.

Part number is stamped on motor.

1шт.

1

145336C92

VALVE

ASSEMBLY - motor control, parts list Figure 6-60, Includes: Ref. 2

1шт.

2

145337C1

GASKET

- control valve

1шт.

3

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

4

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, 7/16-20 inch flare x adj. O-ring boss

1шт.

5

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj. O-ring boss

1шт.

6

175760C2

HYDRAULIC HOSE,6.35mm ID x 254mm L, SAE 100R2

HOSE - 254 mm (10 inch) long

2шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

4шт.

8

145340C1

HOSE

- housing to valve block

1шт.

9

1971433C1

VALVE

BLOCK ASSEMBLY - relief valve, parts list Figure 6-62

1шт.

14

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

15

NSS

NOT SOLD SEPARAT

COVER - end Order 1958085C1

1шт.

Part number is stamped on motor.

1шт.

16

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

17

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

142398C91

SHIM KIT

KIT - shim, Includes: Ref. 18

1шт.

18

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

18

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

18

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

18

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

18

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

18

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

19

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch O.D.

1шт.

20

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

CONE - tapered roller bearing, 1-3/16 inch ID

1шт.

21

92741C2

GASKET,0.38mm Thk

- end cover

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - motor Order 1958085C1

1шт.

Part number is stamped on motor.

1шт.
