Запчасти Case IH 1680 (6-42) - HYDROSTATIC MOTOR, SINGLE SPEED, P.I.N. JJC0044502 AND AFTER (03) - POWER TRAIN

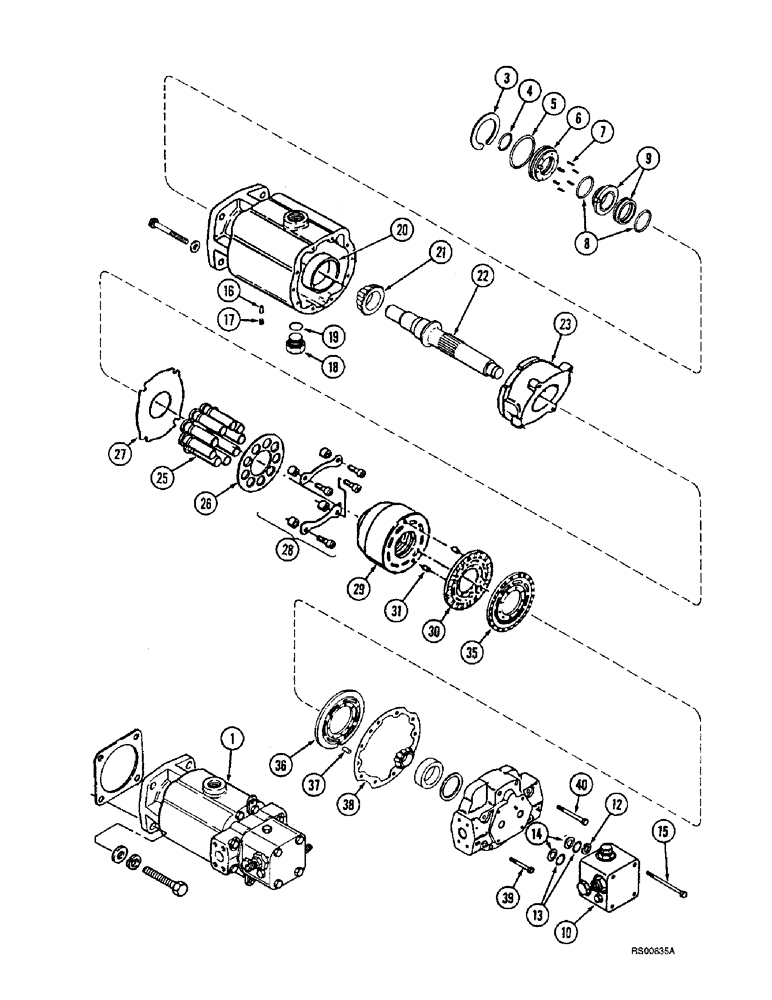

Схема запчастей Case IH 1680 - (6-42) - HYDROSTATIC MOTOR, SINGLE SPEED, P.I.N. JJC0044502 AND AFTER (03) - POWER TRAIN
14
37
8
10
6
7
35
38
16
12
26
40
22
9
36
30
23
28
3
27
31
18
15
19
21
1
29
25
17
20
4
39
5
13

Артикул

Название

Примечание

Количество

1

1958081C1

PUMP, HYDROSTATIC

HYDROSTATIC PUMP MOTOR ASSEMBLY - hydrostatic, new, Includes: Ref. 3 - 40 and 41 - 50 on Figure 6-44

1шт.

87411135R

REMAN-HYDROSTAT PUMP

1680 (PRIOR TO S/N JJC0045689) P.I.N. JJC0044502 AND AFTER (1/86-12/92), Reman For New P/N 1958081C1

1шт.

87411135C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

1958082C1

REMAN-HYD MOTOR

MOTOR ASSEMBLY - hydrostatic, remanufactured, North America only, Includes: Ref. 3 - 40 and 41 - 50 on Figure 6-44

1шт.

87411135R

REMAN-HYDROSTAT PUMP

1680 (PRIOR TO S/N JJC0045689) P.I.N. JJC0044502 AND AFTER (1/86-12/92), Reman For New P/N 1958082C1

1шт.

87411135C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

1958083C1

CORE-MOTOR HYDRAULIC

RETURN NUMBER, N.A. Only - use this part number to return motor core for credit when using a remanufactured assembly

1шт.

1346205C1

SEAL KIT

KIT - seal, shaft, four piece, Includes: Ref. 3 - 9

1шт.

3

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

4

S98648

O-RING

O-RING - 1-3/8 ID x 1/16 inch wide

1шт.

5

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

O-RING, -145, 90 Duro, 2.55" ID x .103" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - shaft seal

6шт.

8

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING, -131, 70 Duro, 1.674" ID x .103" Thk

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

10

1971432C2

VALVE

BLOCK ASSEMBLY - relief valve, parts list Figure 6-46

1шт.

140747C92

SEAL KIT

KIT - valve block mounting seal, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

RING - square, 3/4 x 7/8 x 1/16 inch

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

O-RING, -018, 90 Duro, .739" ID x .070" Thk

2шт.

14

631458C1

RING

RING - backup

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT - hex, 3/8 NC x 4 inch

4шт.

16

37-1516

DOWEL,5/16" x 1"

PIN - dowel, 5/16 x 1 inch, hardened

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

PLUG - hex socket headless, 1/8 inch PT

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

PLUG - hex, 1-1/16-12 inch O-ring boss, Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING, 12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - tapered roller bearing, output shaft

1шт.

21

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

CONE - tapered roller bearing, output shaft

1шт.

22

1980137C1

SHAFT

SHAFT ASSEMBLY - output

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - swash, fixed

1шт.

1980138C1

KIT

KIT - rotating, cylinder, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

31

140754C1

PIN

PIN - dowel, 5/16 x 5/8 inch

2шт.

35

142395C1

PLATE

PLATE - bearing

1шт.

36

1980139C1

PLATE

PLATE - valve

1шт.

37

140754C1

PIN

PIN - dowel, 5/16 x 5/8 inch

3шт.

38

1980140C1

GASKET,0.38mm Thk

GASKET - end cover

1шт.

39

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

BOLT, Hex, 7/16"-14 x 2", G8

2шт.

40

24855R1

BOLT,Hex, 7/16" - 14 x 3", Gr 8

BOLT - hex, 7/16 NC x 2-3/4 inch

6шт.

Выбрано товаров: 43
