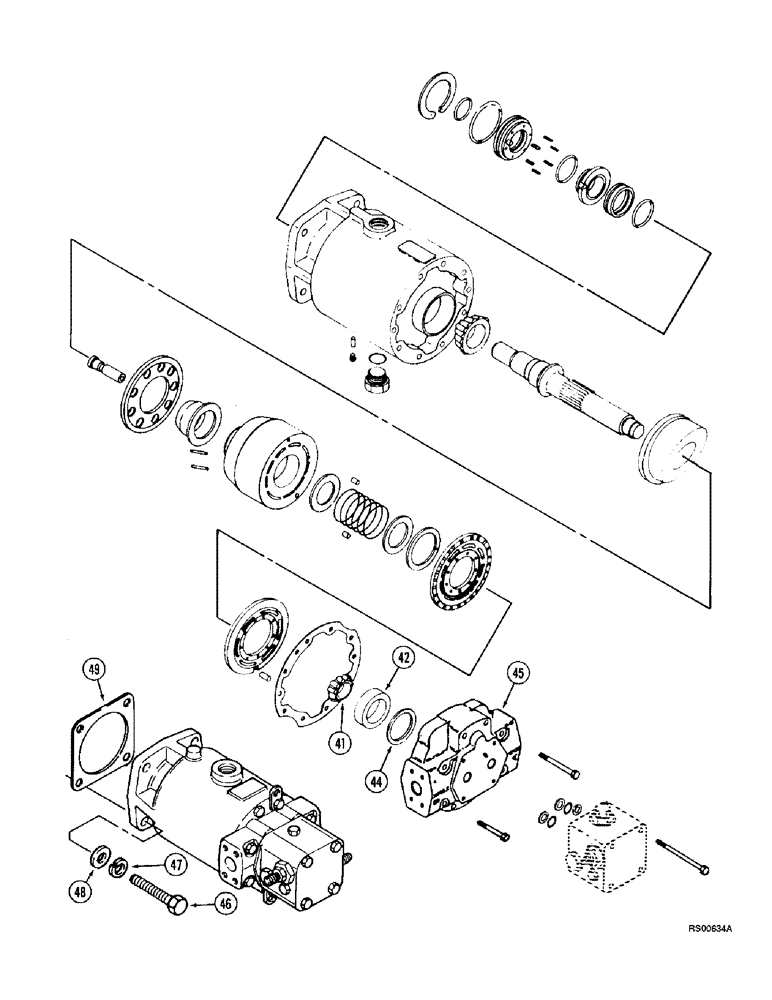

Запчасти Case IH 1680 (6-40) - HYDROSTATIC MOTOR, SINGLE SPEED, PRIOR TO P.I.N. JJC0044502 (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, Includes: Ref. 41 - 45 and 3 - 40 on Figure 6-38

1шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

CONE - tapered roller bearing, 1-3/16 inch ID

1шт.

42

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch OD

1шт.

142398C91

SHIM KIT

KIT - shim, Includes: Ref. 44

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.010inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.015inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

45

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

46

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

47

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

48

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

4шт.

49

166506C1

GASKET,0.81mm Thk

- mounting

1шт.
