Запчасти Case IH 1680 (6-32) - HYDROSTATIC PUMP, WITH SINGLE AND DUAL SPEED MOTOR, P.I.N. JJC0044502 AND AFTER (CONTD) (03) - POWER TRAIN

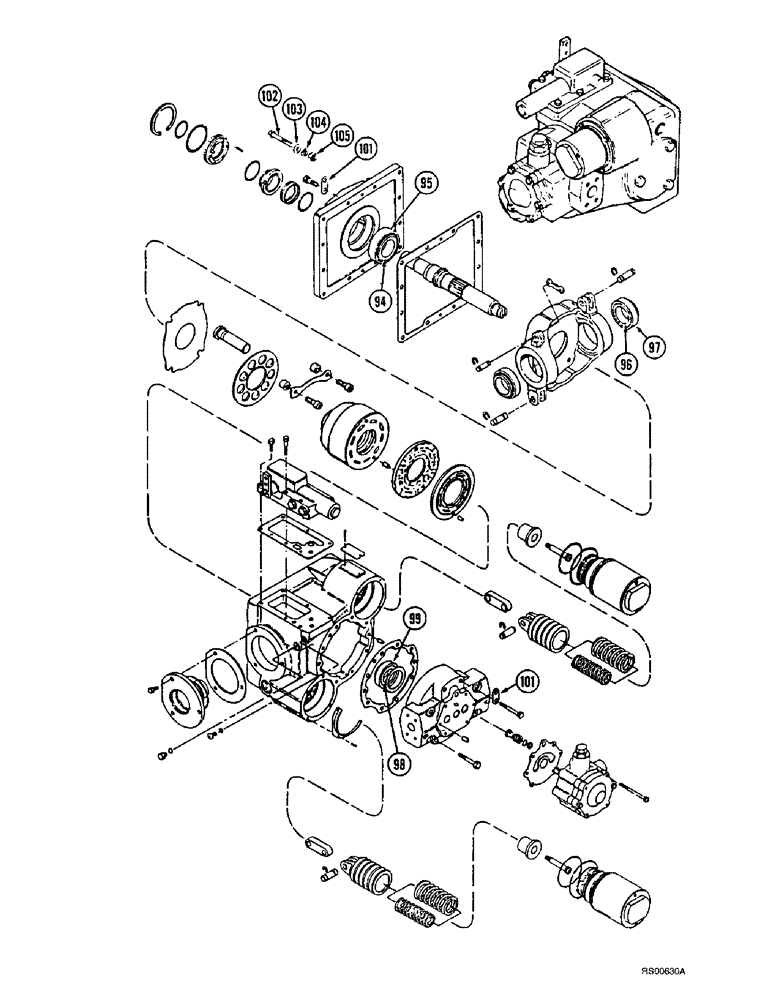

Схема запчастей Case IH 1680 - (6-32) - HYDROSTATIC PUMP, WITH SINGLE AND DUAL SPEED MOTOR, P.I.N. JJC0044502 AND AFTER (CONTD) (03) - POWER TRAIN
102
104
94
95
97
101
103
99
101
96
105
98

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, Includes: Ref. 94 - 99, 2 - 38 on Figure 6-28 and 39 - 93 on Figure 6-30

1шт.

94

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

CONE - tapered roller bearing, input shaft

1шт.

95

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - tapered roller bearing, input shaft

1шт.

96

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE - tapered roller bearing, 1-25/32 inch ID, trunnion

2шт.

97

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - tapered roller bearing, 2-57/64 inch OD, trunnion

2шт.

98

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

CONE - tapered roller bearing, 1-3/16 inch ID, input shaft

1шт.

99

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch OD, input shaft

1шт.

101

NSS

NOT SOLD SEPARAT

STRAP - shipping (Shown for reference only)

2шт.

102

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

103

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

104

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

4шт.

105

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

Выбрано товаров: 12
