Запчасти Case IH 1680 (6-30) - HYDROSTATIC PUMP, WITH SINGLE AND DUAL SPEED MOTOR, P.I.N. JJC0044502 AND AFTER (CONTD) (03) - POWER TRAIN

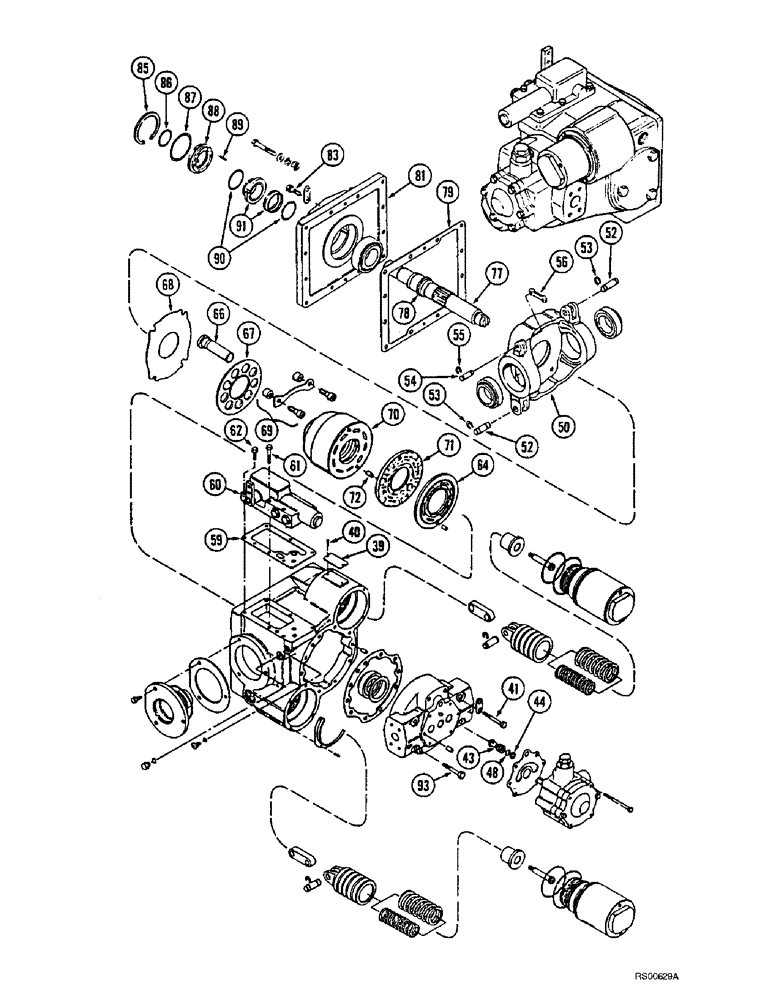

Схема запчастей Case IH 1680 - (6-30) - HYDROSTATIC PUMP, WITH SINGLE AND DUAL SPEED MOTOR, P.I.N. JJC0044502 AND AFTER (CONTD) (03) - POWER TRAIN
54
40
72
85
53
48
66
39
89
79
69
83
78
52
93
52
67
59
70
60
68
90
41
88
53
91
56
81
43
77
86
55
64
71
62
44
61
87
50

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, Includes: Ref. 39 - 93, 2 - 38 on Figure 6-28 and 94 - 99 on Figure 6-32

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - identification

1шт.

40

NSS

NOT SOLD SEPARAT

SCREW - drive, identification plate

2шт.

41

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- hex, 7/16 NC x 3 inch

6шт.

43

140769C1

CHECK VALVE

VALVE ASSEMBLY - check, Includes: Ref. 44 & 48

2шт.

44

140770C1

RING

- backup

2шт.

48

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

50

1980171C1

HOUSING

PLATE - swash

1шт.

52

140766C1

PIN,14.22mm OD x 39.12mm L

- pivot

2шт.

53

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

54

140765C1

PIN

- pivot, control valve

1шт.

55

100-1125

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.

56

142402C1

LINK

- connecting, control valve

1шт.

59

133756C1

GASKET

- control valve

1шт.

60

133755C94

VALVE

ASSEMBLY - control, parts list Figure 6-34

1шт.

61

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

2шт.

62

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

64

1980173C1

PLATE

- pump valve

1шт.

1980138C1

KIT

- rotating, cylinder, Includes: Ref. 66 - 72

1шт.

66

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

68

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

69

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

71

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

72

140754C1

PIN

- dowel, 5/16 x 5/8 inch

7шт.

77

1980169C1

SHAFT

- input, Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

79

142399C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting

1шт.

83

326-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

12шт.

1346205C1

SEAL KIT

KIT - seal, shaft, four piece, Includes: Ref. 85 - 91

1шт.

85

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

86

S98648

O-RING

- 1-3/8 ID x 1/16 inch wide

1шт.

87

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

88

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

89

NSS

NOT SOLD SEPARAT

SPRING - shaft seal

6шт.

90

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

91

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

93

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

Выбрано товаров: 40
