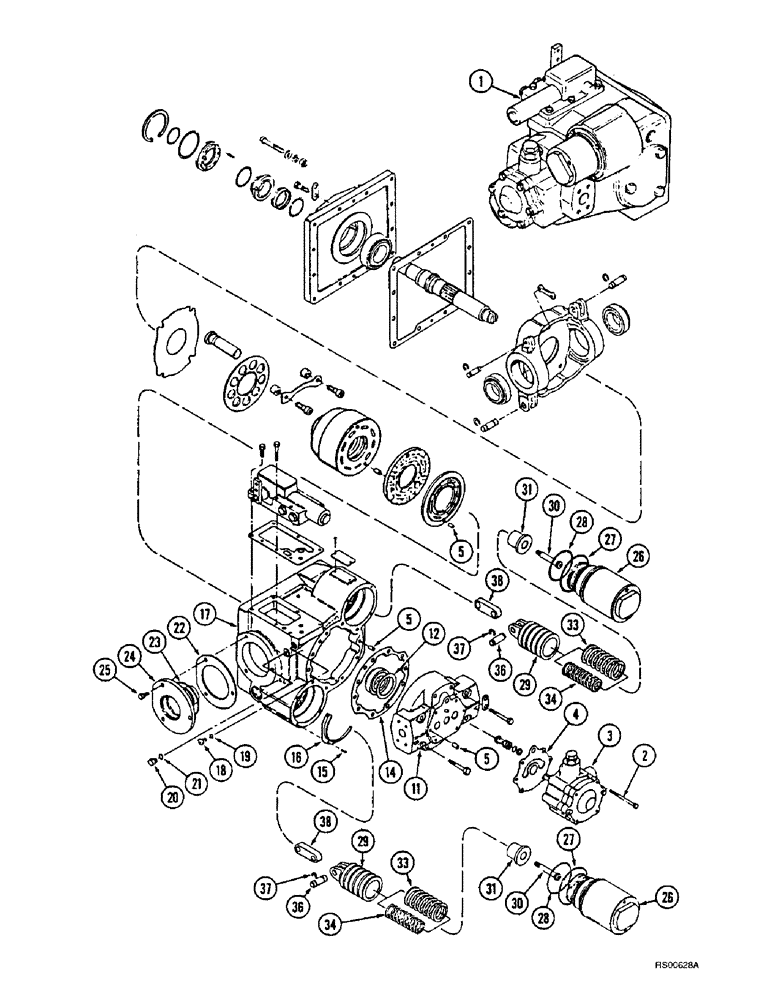

Запчасти Case IH 1680 (6-28) - HYDROSTATIC PUMP, WITH SINGLE AND DUAL SPEED MOTOR, P.I.N. JJC0044502 AND AFTER (03) - POWER TRAIN

1

1958078C1

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, new

1шт.

1

1958079C1

REMAN-HYDROSTAT PUMP

Pump Assembly - hydrostatic, remanufactured, part number is stamped on pump, Includes: Ref. 2 - 38, 39 - 93 on Figure 6-30 and 94 - 99 on Figure 6-32

1шт.

1

1979636C1

CORE-HYDROSTAT PUMP

Return Number, Hydraulic Pump

1шт.

2

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

4шт.

3

133761C91

PUMP

ASSEMBLY - charge, parts list Figure 6-36

1шт.

4

133760C2

GASKET

- charge pump

1шт.

5

140754C1

PIN

- dowel, 5/16 x 5/8 inch

5шт.

11

NSS

NOT SOLD SEPARAT

COVER - end pump

1шт.

142398C91

SHIM KIT

KIT - shim, end cover, Includes: Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

14

92741C2

GASKET,0.38mm Thk

- end cover

1шт.

15

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

BOLT, Hex Soc Hd, #8-32 x 3/8"

6шт.

16

142408C1

RETAINER

- servo

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

18

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 19 Hex Soc, 7/16"-20 ORB

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 21 Hex Hd, 7/16"-20 ORB

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

142386C91

SHIM KIT

KIT - shim, trunnion bearing, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch

6шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch

4шт.

23

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

24

NSS

NOT SOLD SEPARAT

TRUNNION - pump

2шт.

25

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

- hex, 7/16 NC x 7/8 inch

6шт.

26

142407C1

KIT

SLEEVE - servo

2шт.

27

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

28

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

29

224669C91

PISTON

ASSEMBLY - servo, Includes: Ref. 30 - 38

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - hex socket

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - servo spring

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - servo, heavy

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - servo, light

1шт.

36

NSS

NOT SOLD SEPARAT

PIN - link

1шт.

37

NSS

NOT SOLD SEPARAT

RING - link retaining

2шт.

38

NSS

NOT SOLD SEPARAT

LINK - servo

1шт.
