Запчасти Case IH 1680 (6-26) - HYDROSTATIC PUMP, WITH SINGLE AND DUAL SPEED MOTOR, PRIOR TO P.I.N. JJC0044502 (CONTD) (03) - POWER TRAIN

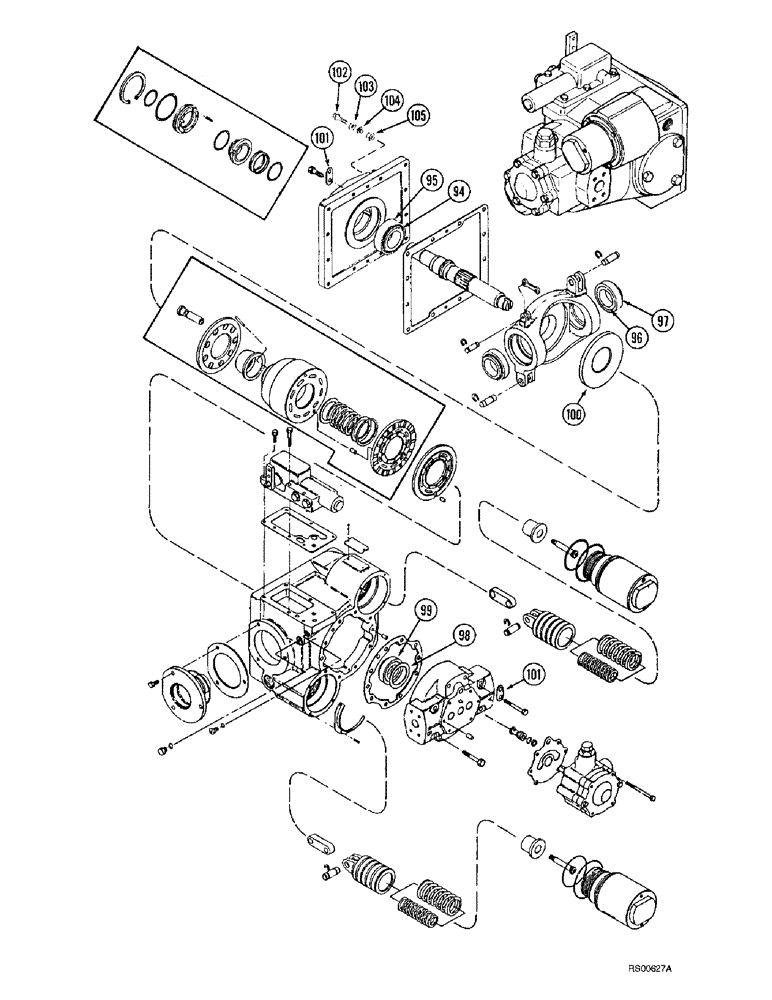

Схема запчастей Case IH 1680 - (6-26) - HYDROSTATIC PUMP, WITH SINGLE AND DUAL SPEED MOTOR, PRIOR TO P.I.N. JJC0044502 (CONTD) (03) - POWER TRAIN
95
96
100
101
98
103
102
105
99
97
101
104
94

Артикул

Название

Примечание

Количество

149917C94

PUMP

ASSEMBLY - hydrostatic, Includes: Ref. 94 - 105, 2 - 38 on Figure 6-22 and 39 - 93 on Figure 6-24

1шт.

94

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

CONE - input shaft bearing, 1-3/4 inch ID

1шт.

95

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD

1шт.

96

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE - tapered roller bearing, 1-25/32 inch ID

2шт.

97

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - tapered roller bearing, 2-57/64 inch OD

2шт.

98

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

CONE - tapered roller bearing, 1-3/16 inch ID

1шт.

99

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch OD

1шт.

100

80369C1

PLATE

- thrust

1шт.

101

NSS

NOT SOLD SEPARAT

STRAP - shipping

2шт.

102

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

103

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

104

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

4шт.

105

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

Выбрано товаров: 13
