Запчасти Case IH 1680 (6-24) - HYDROSTATIC PUMP, WITH SINGLE AND DUAL SPEED MOTOR, PRIOR TO P.I.N. JJC0044502 (CONTD) (03) - POWER TRAIN

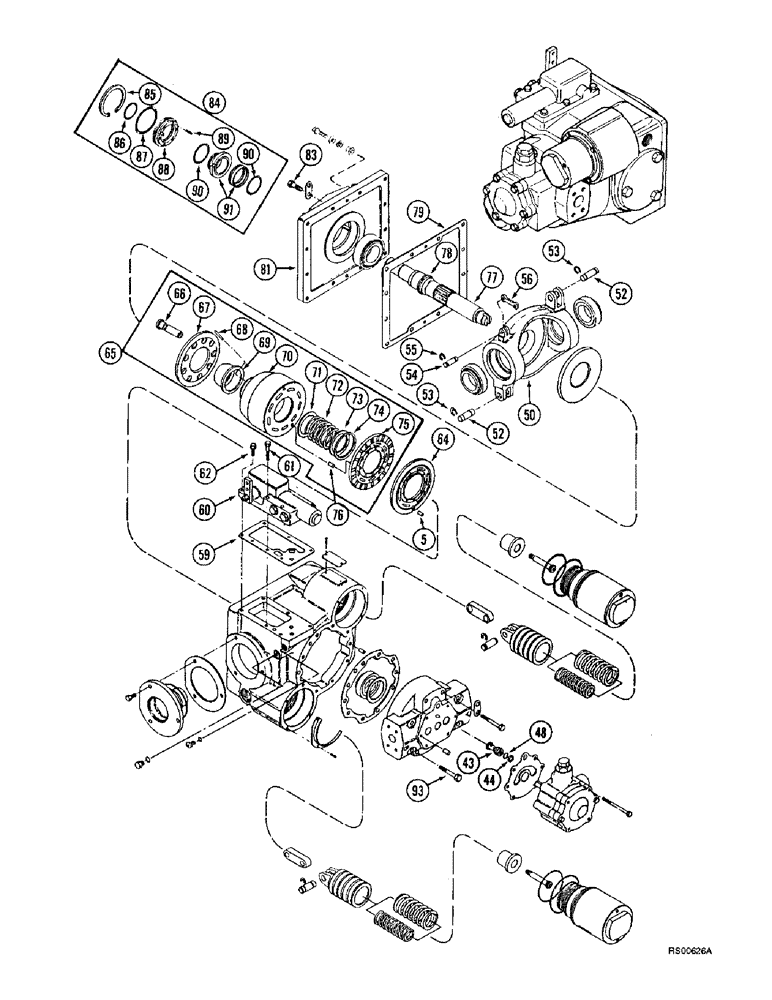

Схема запчастей Case IH 1680 - (6-24) - HYDROSTATIC PUMP, WITH SINGLE AND DUAL SPEED MOTOR, PRIOR TO P.I.N. JJC0044502 (CONTD) (03) - POWER TRAIN
86
53
88
48
89
75
52
76
52
74
50
60
68
55
62
83
91
65
71
56
44
78
84
54
73
87
61
79
72
90
59
67
77
81
43
70
93
5
85
69
66
90
64
53

Артикул

Название

Примечание

Количество

149917C94

PUMP

ASSEMBLY - hydrostatic, Includes: Ref. 39 - 93, 2 - 38 on Figure 6-22 and 94 - 105 on Figure 6-26

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - identification

1шт.

41

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- hex, 7/16 NC x 3 inch

6шт.

43

140769C1

CHECK VALVE

VALVE ASSEMBLY - check, Includes: Ref. 44 & 48

2шт.

44

140770C1

RING

- backup

2шт.

48

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

50

80364C1

HOUSING

PLATE - swash

1шт.

52

140766C1

PIN,14.22mm OD x 39.12mm L

- pivot

2шт.

53

28145R1

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

4шт.

54

140765C1

PIN

- pivot

1шт.

55

100-1125

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.

56

142402C1

LINK

- connecting

1шт.

59

133756C1

GASKET

- control valve

1шт.

60

133755C94

VALVE

ASSEMBLY - control, parts list Figure 6-34

1шт.

61

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

62

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

64

224668C1

PLATE

- pump valve

1шт.

65

142392C93

STRIPPER PACKAGE

KIT - rotating group, Includes: Ref. 66 - 76

1шт.

66

142393C1

PISTON ASSY.

PISTON - cylinder block

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

68

142394C1

PIN

- dowel

6шт.

69

NSS

NOT SOLD SEPARAT

GUIDE - retainer plate

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

71

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

72

NSS

NOT SOLD SEPARAT

SPRING - cylinder barrel

1шт.

73

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

74

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

75

142395C1

PLATE

- bearing

1шт.

76

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

77

1980136C1

SHAFT

- input, replaces 142400C2 shaft, Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

79

142399C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting

1шт.

83

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

12шт.

84

1346205C1

SEAL KIT

KIT - seal, shaft, four piece, replaces 142518C92 kit, Includes: Ref. 85 - 91

1шт.

85

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

86

S98648

O-RING

- 1-3/8 ID x 1/16 inch wide

1шт.

87

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

88

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

89

NSS

NOT SOLD SEPARAT

SPRING - shaft seal

6шт.

90

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

91

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

93

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch

2шт.

Выбрано товаров: 43
