Запчасти Case IH 1680 (6-16) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN

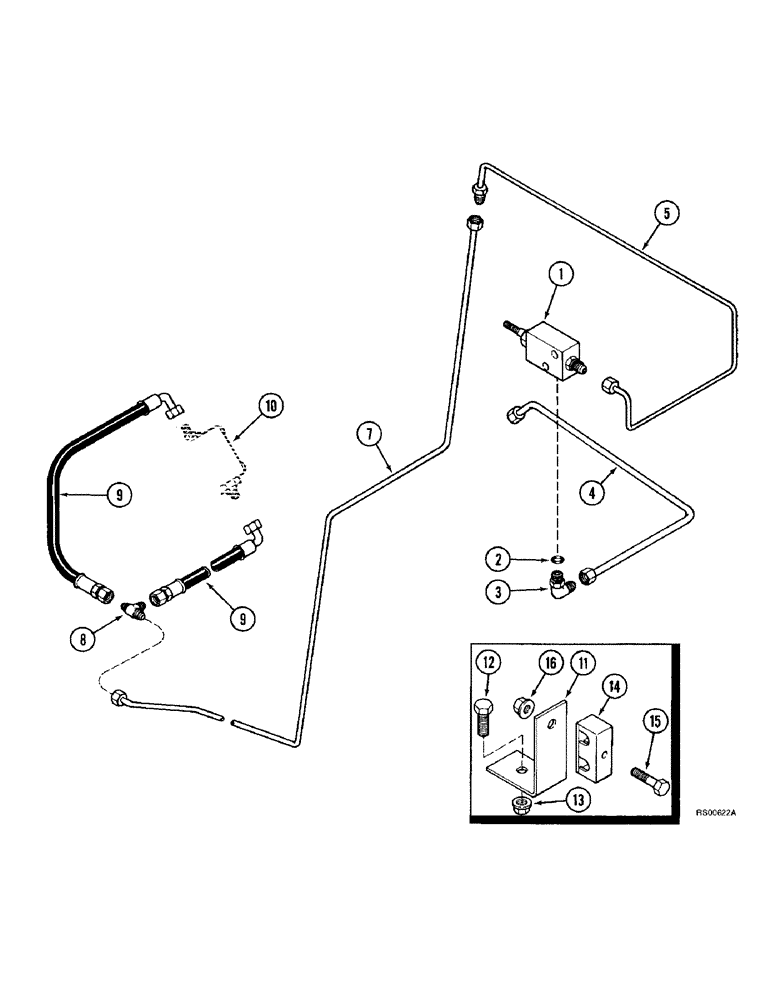

Схема запчастей Case IH 1680 - (6-16) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN
5
10
2
1
3
14
12
16
4
15
8
9
9
7
13
11

Артикул

Название

Примечание

Количество

1

398705R91

VALVE

ASSEMBLY - Foot-N-Inch, parts list Figure 6-18

1шт.

3

164596C1

ELBOW

- 90 degree, 1/2-20 x 9/16-18 inch thread

1шт.

4

1321271C1

HYD TUBE

TUBE - Foot-N-Inch valve return

1шт.

5

1321270C2

HYD TUBE

TUBE - Foot-N-Inch, upper

1шт.

7

1327828C1

HYD TUBE

TUBE - Foot-N-Inch, lower

1шт.

8

218-591

TEE,7/16"-20, 37 Degree

- 7/16-20 inch flare branch x flare x flare

1шт.

9

175760C2

HYDRAULIC HOSE,6.35mm ID x 254mm L, SAE 100R2

HOSE - 254 mm (10 inch) long

2шт.

10

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, parts list Figure 6-48 or 6-52

1шт.

11

178950C1

ANGLE

SUPPORT - steering tubes

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

183820C1

CLAMP

- Foot-N-Inch tube

1шт.

15

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

2

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

Выбрано товаров: 15
