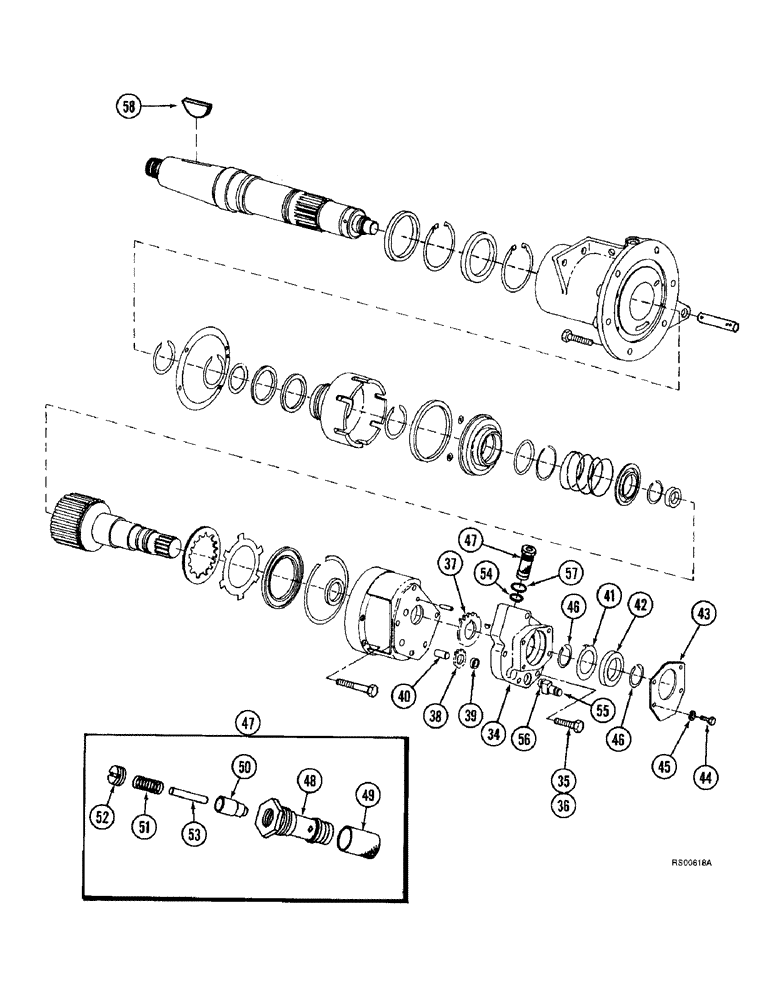

Запчасти Case IH 1680 (6-08) - POWER TAKEOFF CLUTCH (CONTD) (03) - POWER TRAIN

181056C96

CLUTCH ASSEMBLY

- power takeoff, Includes: Ref. 34 - 58 and 1 - 33 on Figure 6-06

1шт.

34

67330C1

HOUSING

- clutch pump

1шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

37

381499R1

PINION

GEAR - clutch pump driver

1шт.

38

381500R1

PINION

GEAR - clutch pump idler

1шт.

39

S108204

NEEDLE BEARING,Needle, 15.75mm ID x 22.35mm OD x 12.7mm W

BEARING - needle

1шт.

40

381502R1

SHAFT

- idler gear

1шт.

41

193369C1

RETAINER

- pump housing

1шт.

42

ST571

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

BEARING - pump housing

1шт.

43

191421C1

BEARING HOUSING

RETAINER - pump housing bearing

1шт.

44

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

4шт.

45

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

46

555570R1

SNAP RING

RING - retaining

2шт.

47

69040C93

VALVE

ASSEMBLY - regulator, Includes: Ref. 48 - 53

1шт.

48

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

49

69042C2

STRAINER ELEMENT

STRAINER - valve

1шт.

50

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

51

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

52

NSS

NOT SOLD SEPARAT

SCREW - valve

1шт.

53

NSS

NOT SOLD SEPARAT

PIN - valve

1шт.

54

238-8015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

1шт.

55

188450C1

FITTING

- pump connection

1шт.

56

381526R1

SEAL,25.3mm ID x 36.2mm OD x 4.78mm Thk

- fitting

1шт.

57

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

10-1, Cl 8, .755" ID x .097" Thk

1шт.

58

126-176

WOODRUFF KEY,#128, 5/16" x 2-1/8", HT

5/16" x 2 1/8", HT

1шт.
