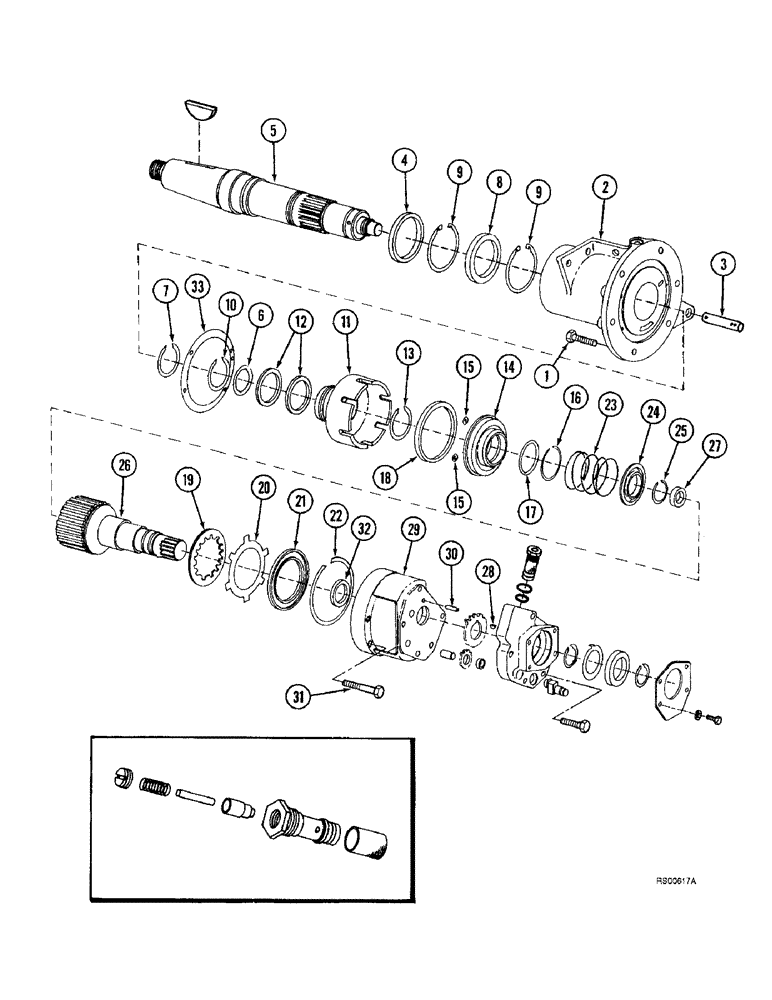

Запчасти Case IH 1680 (6-06) - POWER TAKEOFF CLUTCH (03) - POWER TRAIN

181056C96

CLUTCH ASSEMBLY

- power takeoff, Includes: Ref. 1 - 33 and 34 - 58 on Figure 6-08

1шт.

1

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

2

188211C2

HOUSING

- clutch, replaces 1315230C92 housing

1шт.

3

1315229C2

PIN,25.4mm OD x 135mm L

- pivot

1шт.

4

188252C1

SEAL,70.8mm ID x 110.13mm OD x 11mm Thk

- clutch housing

1шт.

5

188163C1

SHAFT

- separator drive

1шт.

6

238-7138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 7, 75 Duro

1шт.

7

357194R1

RING

- retaining

1шт.

8

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING - clutch housing

1шт.

9

101-21433

SNAP RING,#433, 4.641", Int

RING, SNAP, #433, 4.641", Int

2шт.

10

271130R1

RING

- retaining

1шт.

11

182789C2

CUP

- clutch

1шт.

12

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

- seal

2шт.

13

68625C1

RING

- retaining

1шт.

14

1302115C91

PISTON

ASSEMBLY - clutch, Includes: Ref. 15

1шт.

15

529376R1

STRAINER ELEMENT

SCREEN - piston orifice

2шт.

16

100-11187

SNAP RING,#187, Ext

Ring, Snap, #187, Ext

1шт.

17

238-7328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 7, 75 Duro

1шт.

18

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL - piston

1шт.

184337C92

PACKAGE

CLUTCH KIT - disc, Includes: Ref. 19 & 20

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - clutch

9шт.

20

NSS

NOT SOLD SEPARAT

DISC - clutch

10шт.

21

139202C1

RETAINER

- clutch driven disc

1шт.

22

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING - snap, clutch driven disc

1шт.

23

381493R1

SPRING

- clutch release

1шт.

24

381494R1

RETAINER

- clutch release spring

1шт.

25

370504R1

RING

- retaining

1шт.

26

68081C2

SHAFT

- drive

1шт.

27

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - drive shaft

1шт.

28

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

29

1989681C2

HOUSING

CARRIER ASSEMBLY - clutch, replaces 68082C2 carrier assembly, Includes: Ref. 30

1шт.

30

37-1512

DOWEL,5/16" x 3/4"

PIN - dowel, 5/16 x 3/4 inch, hardened

2шт.

31

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

4шт.

32

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle, 1-3/4 inch OD

1шт.

33

529565R2

GASKET,0.79mm Thk

- clutch carrier

1шт.
