Запчасти Case IH 1680 (6-04) - POWER TAKEOFF DRIVE (CONTD) (03) - POWER TRAIN

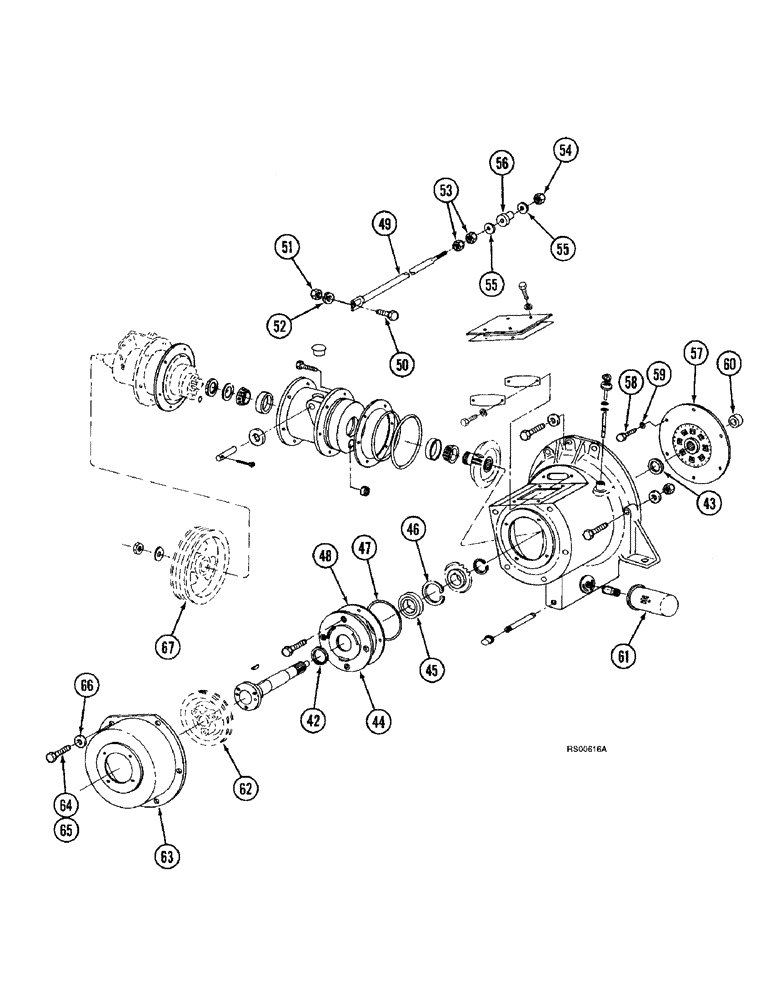

Схема запчастей Case IH 1680 - (6-04) - POWER TAKEOFF DRIVE (CONTD) (03) - POWER TRAIN
52
66
65
64
53
43
67
55
46
49
58
60
61
59
42
45
54
44
50
51
56
62
63
48
57
47
55

Артикул

Название

Примечание

Количество

42

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

- 3-5/8 inch OD

1шт.

43

173559C92

SEAL,45.59mm ID x 66.73mm OD x 11mm Thk

- shaft, 2-5/8 inch OD

1шт.

44

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

HUB - drive shaft bearing housing

1шт.

45

ST297

BEARING, BALL

BEARING - ball, 4-3/4 inch OD

1шт.

46

100-22475

SNAP RING,4.78", Int, #475

Ring, Snap, 4.78", Int, #475

1шт.

47

238-8260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

188196C1

SHIM KIT

KIT - shim, Includes: Ref. 48

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - drive shaft hub, 0.030 inch

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - drive shaft hub, 0.010 inch

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - drive shaft hub, 0.007 inch

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - drive shaft hub, 0.005 inch

1шт.

49

194086C1

ROD

- snubber

1шт.

50

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

51

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

52

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

53

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

2шт.

54

232-46110

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

55

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch

2шт.

56

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine snubber

1шт.

57

188013C91

PLATE ASSY.,354.33mm OD

PLATE - drive

1шт.

57

188013C91R

REMAN-CLUTCH PLATE

Drive

1шт.

57

188013C91C

CORE-CLUTCH PLATE

Return Number

1шт.

58

113-451

PREV TORQUE BOLT,Locking, 1/2"-13 x 1", G8, Full Thd

BOLT - hex, self-locking, 1/2 NC x 1 inch, grade 8

6шт.

59

406579R1

WASHER

- PTO drive plate

6шт.

60

195349C2

BUSHING,29.99mm ID x 52mm OD x 21.84mm L

- PTO flywheel

1шт.

61

70203C2

HYDRAULIC OIL FILTER

FILTER - oil, PTO

1шт.

62

196481C1

PULLEY

- auxiliary pump drive, 9-1/4 inch OD

1шт.

63

1303141C2

HOUSING

- hydrostatic pump

1шт.

64

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

65

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

66

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

2шт.

67

191463C1

PULLEY

- separator drive, 11 inch OD

1шт.

Выбрано товаров: 32
