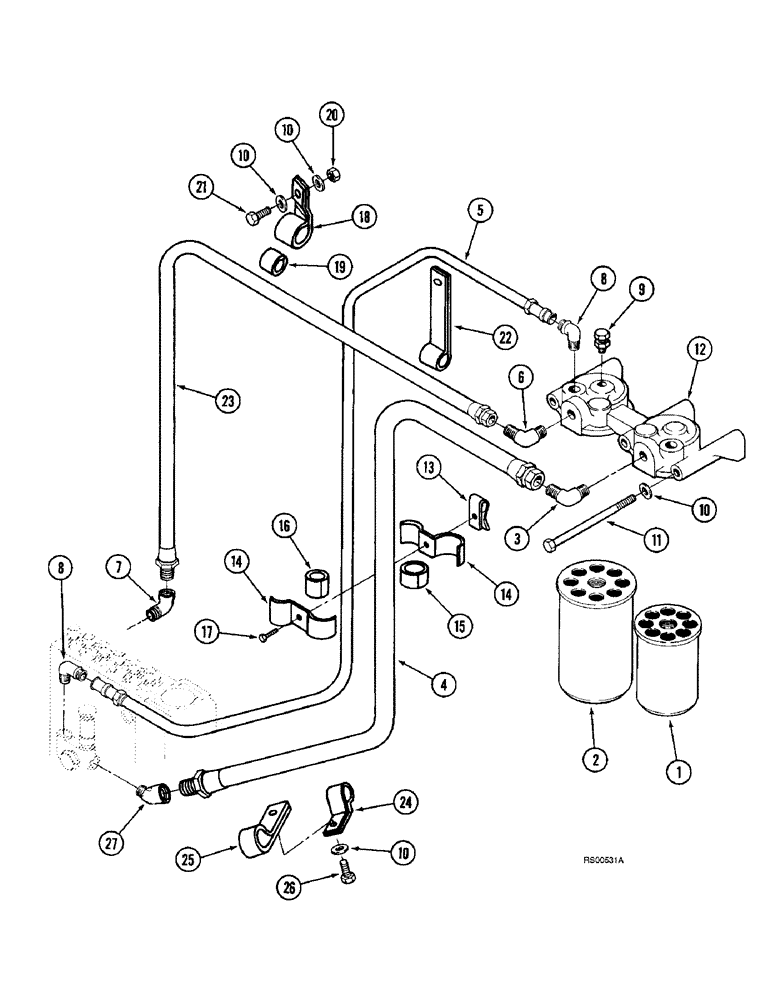

Запчасти Case IH 1680 (3-08) - FUEL FILTER SYSTEM, DTI-466C DIESEL ENGINE, WITH HOSE AND STEEL TUBE RETURN LINES (02) - FUEL SYSTEM

1

A184773

SEPARATOR

FILTER - primary fuel, replaces 625627C1 filter

1шт.

2

A184774

FUEL FILTER

FILTER - secondary fuel, replaces 672603C2 filter

1шт.

3

222-774

90 ELBOW,90 Degree, 3/4"-16, 45 Degree Fl x 3/8" NPT

- 90 degree, 3/4-16 45 degree flare x 1/2 inch PT

1шт.

4

1802982C1

HOSE

- inlet

1шт.

5

1810723C91

TUBE

- to final filter

1шт.

6

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree, 5/8-18 45 degree flare x 3/8 inch PT

1шт.

7

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT

1шт.

8

222-4047

ELBOW

- 90 deg, compression, 3/8 tube OD x 1/4 inch PT

2шт.

9

39677DA

VALVE

- bleeder

1шт.

10

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

6шт.

11

326-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 8

3шт.

12

1809590C91

HEAD ASSY.

HEADER - fuel filter

1шт.

13

684548C1

NUT

- spring, 1/4 inch

1шт.

14

684899C1

CLAMP

- hose

2шт.

15

1806408C1

CUSHION

- 3/4 inch hose

1шт.

16

673171C1

RUBBER BUSHING

SLEEVE - rubber, 3/8 inch tube

1шт.

17

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1шт.

18

691144C1

CLAMP

- closed hose

1шт.

19

397483R1

GROMMET

- 5/8 inch

1шт.

20

329-106

NUT,3/8"-16, G8

1шт.

21

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

22

1806044C1

CLAMP

- closed

1шт.

23

688190C1

HOSE

- final filter to injection pump

1шт.

24

1802981C1

CLAMP

- tube

1шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

26

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

27

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 45 degree, 1/4 inch PT

1шт.
