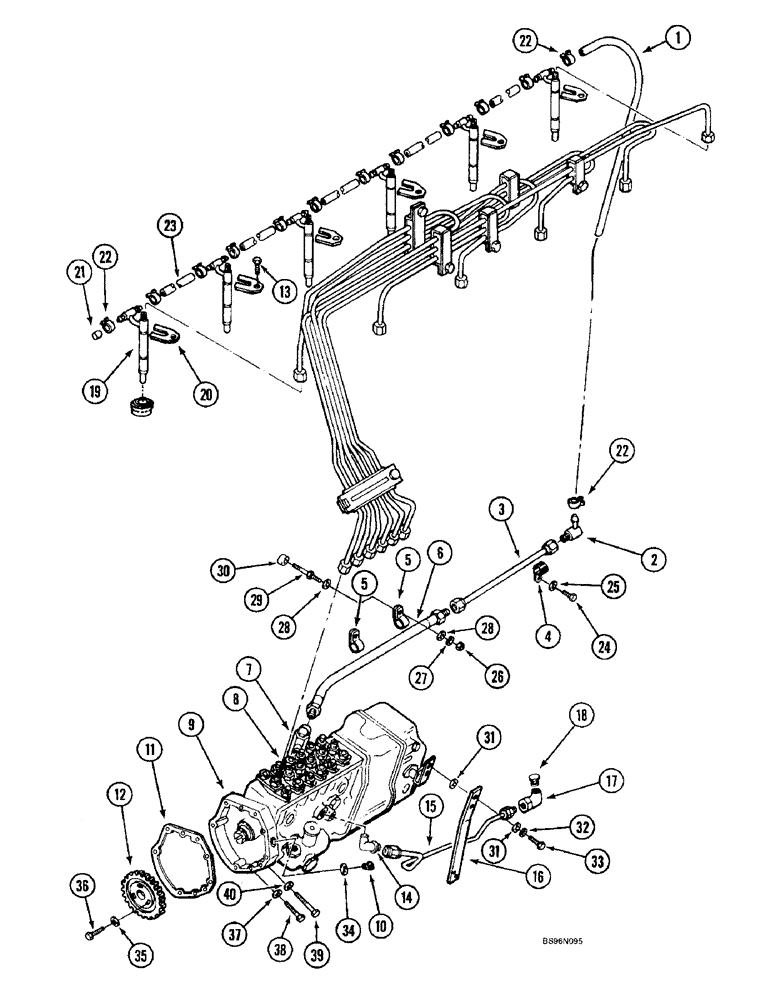

Запчасти Case IH 1680 (3-02) - FUEL INJECTION SYSTEM, DTI-466C DIESEL ENGINE (02) - FUEL SYSTEM

1

NSS

NOT SOLD SEPARAT

HOSE - 254 mm (10 inch) long, cut from 680246CX bulk hose, see below, No. 6 injector to leakoff tube

1шт.

2

673196C1

TEE

- fuel leakoff

1шт.

3

691074C92

TUBE,0.375" OD, 9.7" Length

- fuel return

1шт.

4

680116C1

CLIP

- fuel return tube

1шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

2шт.

6

1806503C1

FUEL HOSE,9.53mm ID x 336.55mm L, SAE 100R3

Fuel Return 0.38" ID x 13.25"

1шт.

7

1809796C1

VALVE

- overflow

1шт.

1809797C1

FITTING

- fuel tube

1шт.

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

8

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT

1шт.

9

1806319C92

PUMP

- injection, new

1шт.

9

1934206C1

REMAN-INJECTION PUMP

1шт.

9

1934207C1

CORE-INJECTION PUMP

Return Number

1шт.

10

444944

PLUG

- square socket, 3/4 inch

1шт.

11

675609C2

GASKET

- injection pump mounting adapter

1шт.

12

1802737C1

GEAR

- injection pump

1шт.

13

691105C1

BOLT

- hex, 5/16 NC x 1-1/16 inch

6шт.

14

319615R1

ELBOW

- 90 degree, 1/8 inch PT

1шт.

15

1802773C91

TUBE,0.25" OD

- lube oil

1шт.

16

1809564C1

LEVER

- injection pump

1шт.

17

686839C1

ELBOW

- side outlet

1шт.

18

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

1шт.

19

REF

INSTRUCTION

NOZZLE HOLDER ASSEMBLY - injection, parts list Figure 3-06

6шт.

20

675479C2

CLAMP

RETAINER - injection nozzle

6шт.

21

1802452C1

CAP

- fuel return, No. 1 injector

1шт.

22

A180159

CLAMP,10.29mm - 12.32mm

- retaining

13шт.

23

NSS

NOT SOLD SEPARAT

HOSE - 127 mm (5 inch) long, cut from 680246CX bulk hose, see below

5шт.

24

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

25

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

26

329-115

NUT,5/16"-24, G8

1шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

2шт.

29

689324C1

STUD,Stud, 5/16" - 24 - 5/16" - 18 x 2.30"

BOLT - manifold stud, 5/16-18 x 5/16-24

1шт.

30

700121908

SPACER

- pipe, 1/4 x 3/8 inch

1шт.

31

396-31028

WASHER,.281" x 5/8" x .098", HDN

- flat, 9/32 x 5/8 x 1/16 inch, hardened

4шт.

32

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

34

689568C1

GASKET

- adapter window

1шт.

35

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

3шт.

36

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

37

396-41034

WASHER,8.74mm ID x 25.4mm OD x 2.49mm Thk

- flat, 11/32 x 1 x 3/32 inch, hardened

1шт.

38

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

1шт.

39

326-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

2шт.

40

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

2шт.

680246CX

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long

1шт.
