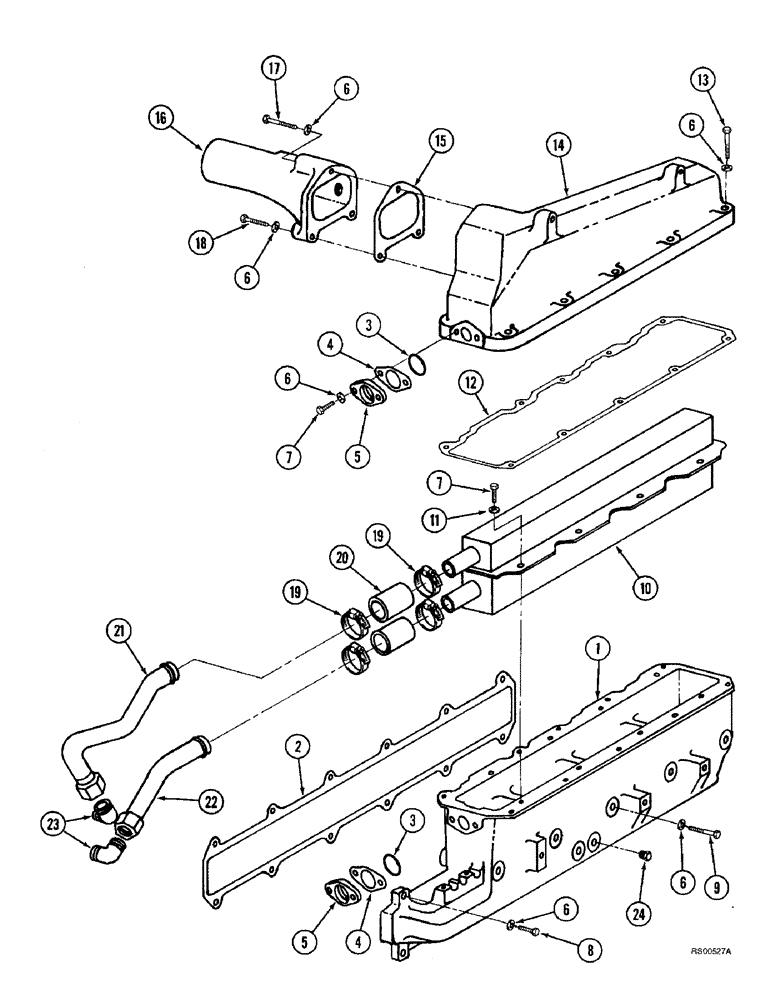

Запчасти Case IH 1680 (2-58) - INTERCOOLER, DTI-466C DIESEL ENGINE (01) - ENGINE

1

1802179C1

HOUSING

- intercooler

1шт.

2

1342839C1

MANIFOLD GASKET

- intake manifold, replaces 682199C1 gasket

1шт.

3

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

4

686145C2

GASKET

- intercooler flange

2шт.

5

686146C1

FLANGE

- intercooler water

2шт.

6

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

28шт.

7

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

8

26680R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch, grade 8

6шт.

9

28565R1

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 8

- hex, 5/16 NC x 3-3/4 inch, grade 8

5шт.

10

686210C91

COOLER

INTERCOOLER - engine

1шт.

11

684496C1

WASHER

- flat hardened, 5/16 inch

8шт.

12

686142C2

GASKET

- cover

1шт.

13

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

10шт.

14

686157C3

COVER

- intercooler housing

1шт.

15

686181C1

GASKET

- air inlet elbow

1шт.

16

686148C1

FITTING

ELBOW - intercooler air inlet

1шт.

17

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

2шт.

18

326-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

1шт.

19

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

4шт.

20

279165R1

TUBE

HOSE - 50 mm (2-3/8 inch) long

2шт.

21

691859C91

TUBE

- inlet, Includes: sleeve and o-ring

1шт.

222-106

SLEEVE,5/8" Tube

- 5/8 inch tube OD

1шт.

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

22

691863C91

TUBE

- outlet, Includes: sleeve and o-ring

1шт.

222-106

SLEEVE,5/8" Tube

- 5/8 inch tube OD

1шт.

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

23

872442R1

ELBOW

- tube

2шт.

24

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT

1шт.
