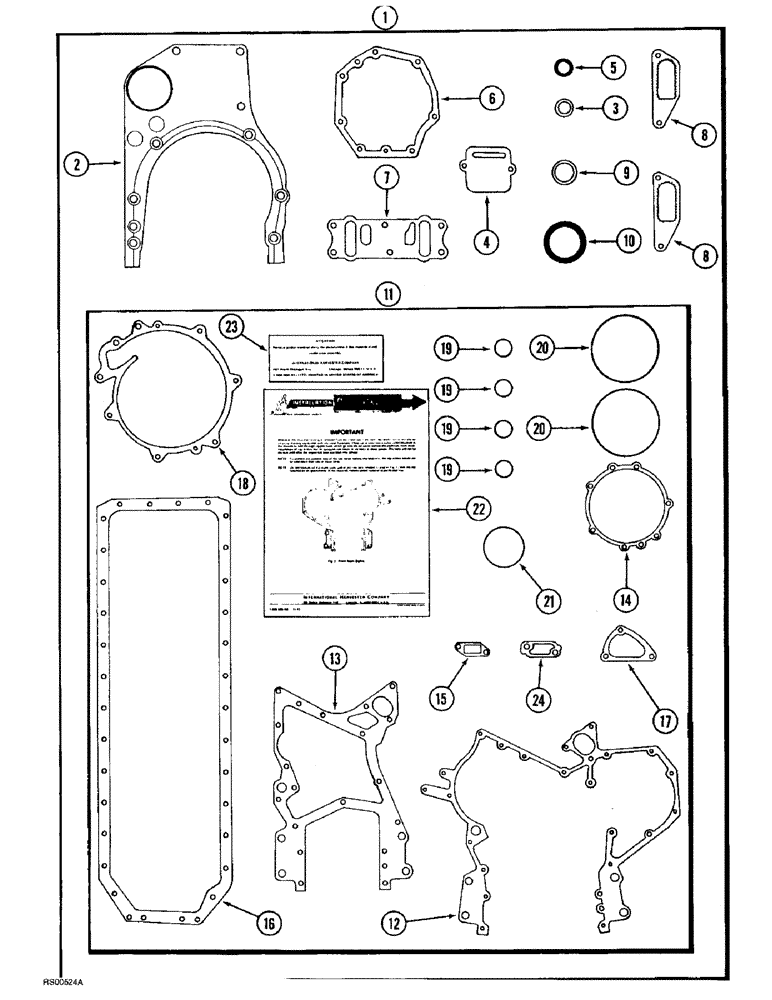

Запчасти Case IH 1680 (2-52) - CYLINDER BLOCK GASKET KIT, DTI-466C DIESEL ENGINE (01) - ENGINE

1

674399C96

GASKET

- crankcase, Includes: Ref. 2 - 24

1шт.

2

682945C3

GASKET

- flywheel housing

1шт.

3

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - plug

1шт.

4

677711C2

GASKET

BAFFLE - breather

1шт.

5

673185C1

O-RING

- 1 ID x 1/8 inch wide

1шт.

6

675609C2

GASKET

- injection pump mounting adapter

1шт.

7

675398C2

GASKET

- oil filter base

1шт.

8

675513C1

OIL SEAL

SEAL - oil cooler mounting

2шт.

9

261624R1

GASKET

- regulator valve cap

1шт.

10

682444C1

RING

PLUG - rear, camshaft

1шт.

11

680084C97

GASKET KIT

KIT - gasket, crankcase, front cover, Includes: Ref. 12 - 24

1шт.

12

675813C2

GASKET,0.79mm Thk

- front cover

1шт.

12

677082C3

GASKET

- front cover, not used this application

1шт.

13

675812C2

GASKET

- front plate

1шт.

13

683791C1

GASKET

- front plate, not used this application

1шт.

14

675816C2

GASKET,0.79mm Thk

- injection pump access cover

1шт.

15

671821C2

GASKET

- lubrication oil pump inlet

1шт.

16

671825C3

GASKET

- oil pan, not used this application

1шт.

16

671827C4

OIL PAN GASKET SET

- oil pan

1шт.

17

673396C2

GASKET

- water inlet elbow

1шт.

18

675808C2

GASKET,0.79mm Thk

- water pump

1шт.

18

676988C1

GASKET

- water pump bearing housing, not used this application

1шт.

19

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

4шт.

20

675860C1

RING

O-RING - oil pump housing

2шт.

21

674754C1

GASKET

GASKET - injection pump mounting

1шт.

22

NSS

NOT SOLD SEPARAT

PAMPHLET - installation instruction

1шт.

23

NSS

NOT SOLD SEPARAT

TAG - front cover gasket warning

1шт.

24

1802867C1

GASKET

- oil pump inlet tube

1шт.
