(2-50) - ENGINE RAILS AND SUPPORTS, DTI-466C DIESEL ENGINE

Запчасти Case IH 1680 (2-50) - ENGINE RAILS AND SUPPORTS, DTI-466C DIESEL ENGINE (01) - ENGINE

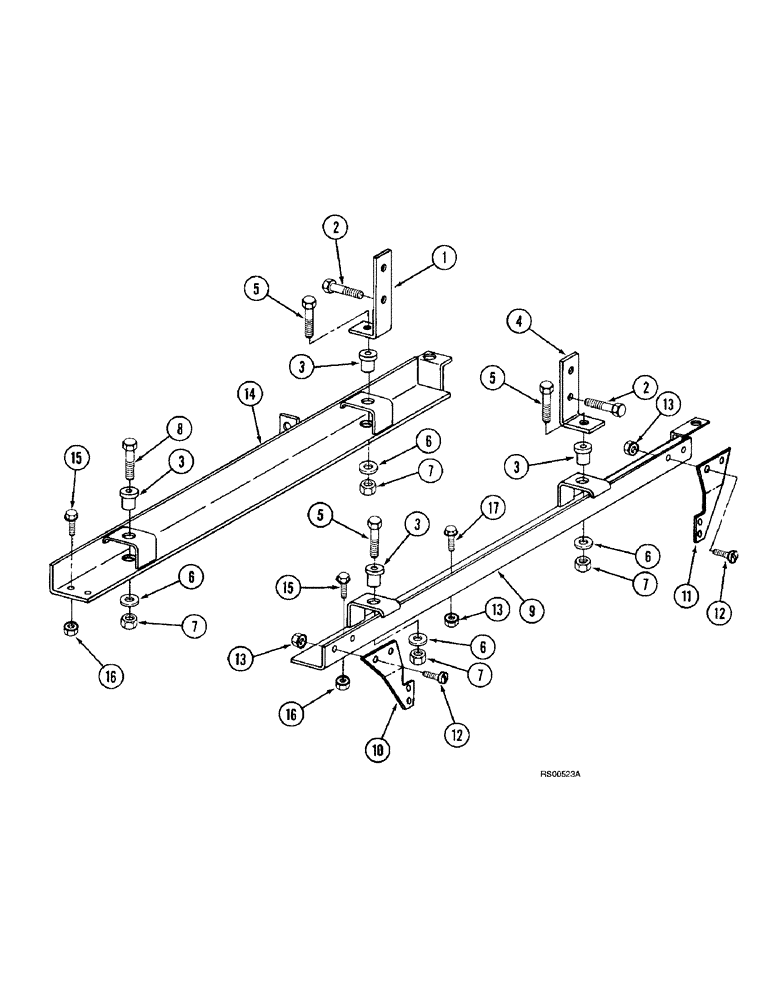

Схема запчастей Case IH 1680 - (2-50) - ENGINE RAILS AND SUPPORTS, DTI-466C DIESEL ENGINE (01) - ENGINE
2
9
3
4
15
13
1
7
6
13
12
13
6
16
3
16
8
5
7
12
11
17
10
14
5
7
6
2
3
5
6
3
15
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

191365C1

SUPPORT

- engine, left-hand, front

1шт.

2

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

2шт.

2

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

3

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine snubber, front and rear

4шт.

4

191364C1

SUPPORT

- engine, right-hand, front

1шт.

5

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

3шт.

6

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch

4шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

8

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

1шт.

9

182964C1

RAIL

- engine, right-hand

1шт.

10

182908C1

SUPPORT

- engine rail, left-hand

1шт.

11

182909C1

SUPPORT

- engine rail, right-hand

1шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

13

231-5146

FLANGE NUT,3/8"-16

17шт.

14

182962C1

RAIL

- engine, left-hand

1шт.

15

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

8шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

13шт.
