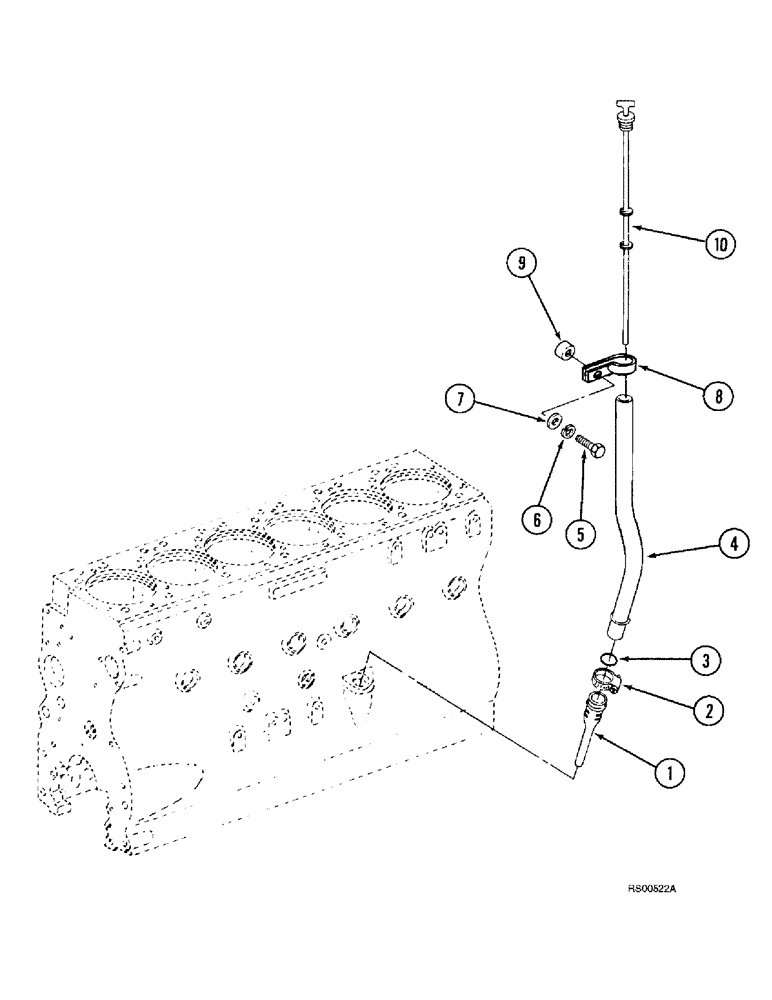

Запчасти Case IH 1680 (2-48) - OIL LEVEL GAUGE AND FILLER TUBE, DTI-466C DIESEL ENGINE (01) - ENGINE

1

691846C1

TUBE

- oil level gauge

1шт.

2

690835C1

CLAMP

- tube

1шт.

3

60352D

GASKET

- tube seal

1шт.

4

1808159C1

TUBE,1.50" OD

- oil filler, and gauge

1шт.

5

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

8

683823C1

CLAMP

- oil filler tube

1шт.

9

685605C1

SPACER

- clamp, oil filler tube

1шт.

10

691946C1

ELECTRICAL GAUGE

GAUGE - level, oil

1шт.
