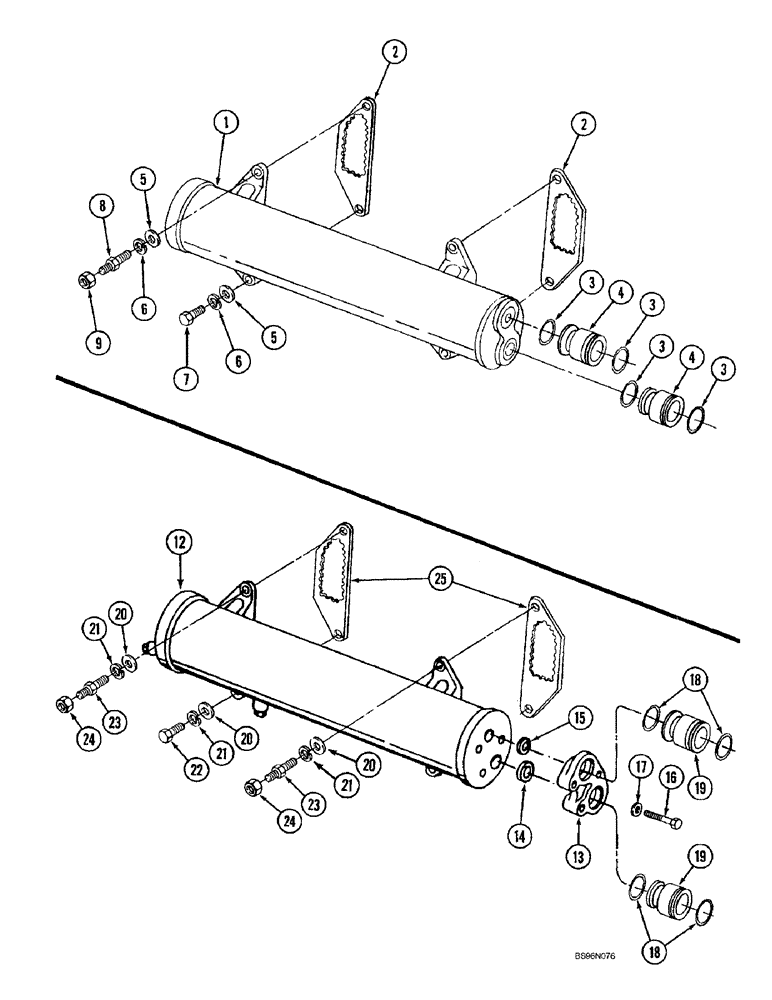

Запчасти Case IH 1680 (2-36) - OIL COOLER, DTI-466C DIESEL ENGINE, PRIOR TO ENGINE SERIAL (01) - ENGINE

1

1815568C91

COOLER, OIL

COOLER ASSEMBLY - oil, replaces 690884C2 cooler assembly

1шт.

1

735260C92

REMAN-OIL COOLER

1680 Prior To S/N JJC0045689 (1/86-12/92)

1шт.

1

1938223C1

CORE-OIL COOLER

Return number

1шт.

2

675513C1

OIL SEAL

SEAL - oil cooler mounting

2шт.

3

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING, -218, 70 Duro, 1.234" ID x .139" Thk

4шт.

4

677110C1

PIPE FITTING

TUBE - cooler, to front cover

2шт.

5

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

6

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

7

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

3шт.

8

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

STUD - 3/8 NC x 3/8 inch NF, rear upper

1шт.

9

329-116

NUT,3/8"-24, G8

NUT, 3/8"-24, G8

1шт.

12

1810171C1

COOLER, OIL

COOLER - oil, engine serial no. 517923 and after

1шт.

13

1810568C1

PLATE

SPACER - oil cooler, engine serial no. 517923 and after

1шт.

14

239-5124

O-RING,Rect, 1.25" ID x 1.438" OD, Cl 5

SEAL - quad, 1-1/4 x 1-7/16 inch, engine serial no. 517923 and after

1шт.

15

239-5112

O-RING,Rect, .5" ID x .688" OD, Cl 5

O-RING, , Engine S/N 517923 and after Rect, .5" ID x .688" OD, Cl 5

1шт.

16

27439R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

BOLT - hex, 5/16 NC x 1-3/4 inch, engine serial no. 517923 and after

3шт.

17

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

WASHER - flat, 11/32 x 11/16 x 3/32 inch, hardened, engine serial no. 517923 and after

3шт.

18

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING, , Engine S/N 517923 and after -218, 70 Duro, 1.234" ID x .139" Thk

4шт.

19

677110C1

PIPE FITTING

TUBE - cooler, to front cover, engine serial no. 517923 and after

2шт.

20

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened, engine serial no. 517923 and after

4шт.

21

492-11038

LOCK WASHER,3/8"

LOCK WASHER, , engine serial no. 517923 and after 3/8"

4шт.

22

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, , Engine S/N 517923 and after Hex, 3/8"-16 x 1 1/4", G8, Full Thd

1шт.

23

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

STUD - 3/8 NC x 3/8 inch NF, engine serial no. 517923 and after

3шт.

24

329-116

NUT,3/8"-24, G8

NUT, , Engine S/N 517923 and after 3/8"-24, G8

3шт.

25

675513C1

OIL SEAL

SEAL - oil cooler mounting, engine serial no. 517923 and after

2шт.
