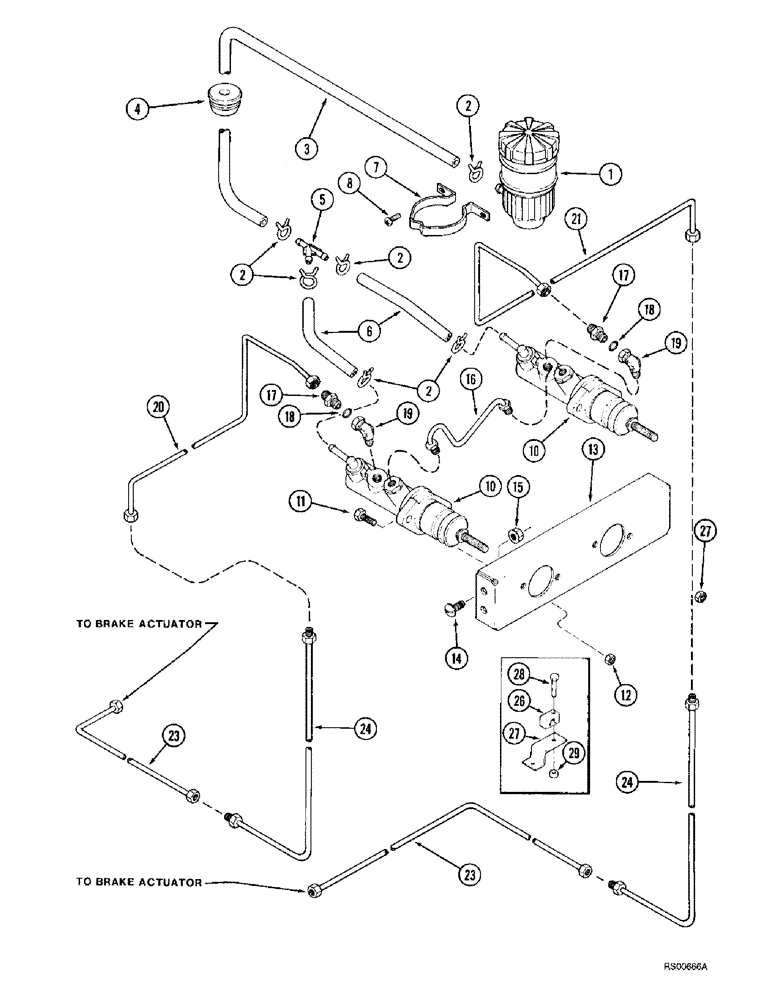

Запчасти Case IH 1680 (7-10) - MASTER BRAKE CYLINDER RESERVOIR (5.1) - BRAKES
№
Артикул
Название
Примечание
Количество
1
1281890C2
RESERVOIR
- brake fluid
1шт.
2
214-1308
HOSE CLAMP,#8, 1/2", Spring
CLAMP, HOSE, #8, 1/2", Spring
6шт.
3
1281889C1
HYDRAULIC HOSE,6.35 mm ID x 610.00 mm
6.35 mm ID x 610.00 mm
1шт.
4
198824C1
GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk
- rubber, 1/2 inch ID
1шт.
5
1285312C1
TEE
FITTING - stem, Y-type
1шт.
6
1281888C1
HYDRAULIC HOSE,6.35 mm ID x 150.00 mm
6.35 mm ID x 150.00 mm
2шт.
7
1281891C1
CLAMP
- reservoir mounting
1шт.
8
143306C1
SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"
SCREW - pan head cross slotted, No. 10-16 x 1/2 inch
2шт.
10
1281884C91
MASTER CYLINDER,37mm Stroke
ASSEMBLY - 25 (1) ID x 37 mm (1-1/2 inch) stroke, parts list Figure 7-12
2шт.
11
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
4шт.
12
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
4шт.
13
1327561C2
SUPPORT
- master brake cylinder
1шт.
14
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch
4шт.
15
231-5146
FLANGE NUT,3/8"-16
4шт.
16
1281885C1
PIPE
TUBE - equalizer
1шт.
17
218-5053
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
ADAPTER - straight, 7/16-20 flare x O-ring boss
2шт.
18
237-3004
O-RING,0.351" ID x 0.072" Width
4-1, Cl 3, .351" ID x .072" Thk
2шт.
19
218-5228
ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw
- 90 degree, 7/16-20 inch flare x swivel
2шт.
20
1321478C2
HYD TUBE
TUBE - brake, upper, right-hand
1шт.
21
1321477C2
HYD TUBE
TUBE - brake, upper, left-hand
1шт.
23
1321515C1
HYD TUBE,0.25" OD, 365, 355 mm Length
TUBE - brake, lower
2шт.
24
1321511C2
HYD TUBE
TUBE - brake, center
2шт.
26
183820C1
CLAMP
- tube
1шт.
27
196517C1
SUPPORT TUBE
SUPPORT - fuel tubes
1шт.
28
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
1шт.
29
231-5144
SERRATED NUT,Flg, USR, 1/4"-20
1шт.
31
934300R1
THIN NUT,Thin, M10 x 1.5, Cl 04
- hex, 10 mm
4шт.
Выбрано товаров: 27
