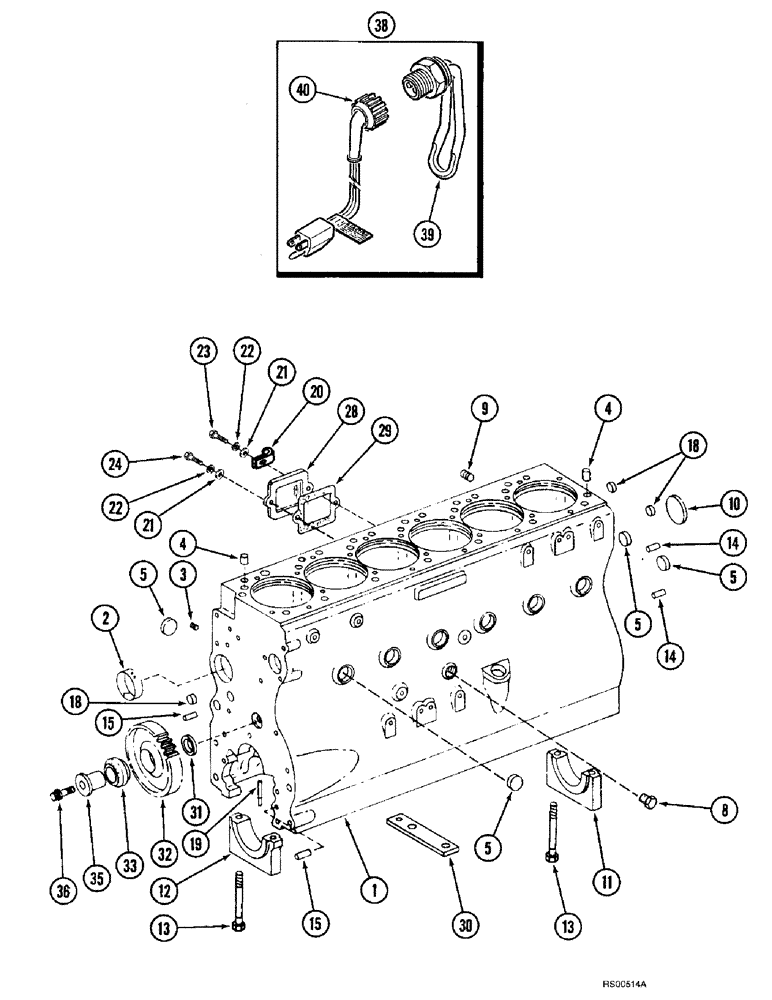

Запчасти Case IH 1680 (2-32) - CYLINDER BLOCK, DTI-466C DIESEL ENGINE (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

BLOCK ASSEMBLY - cylinder, Includes: Ref. 2 - 19

1шт.

For service order the following: 1817370C91 crankcase (1); 682444C1 ring (1); 343464R1 jets (12); 211-1008 balls (12) and items 2 through 19.

1шт.

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

For service order the following: 1817370C91 crankcase (1); 682444C1 ring (1); 343464R1 jets (12); 211-1008 balls (12) and items 2 through 19.

1шт.

680117C2

SET

KIT - bearing, camshaft

1шт.

1928268C92

REMAN-BASIC ENGINE

1680 Prior To Eng. S/N 466776

1шт.

1928269C92

CORE-BASIC ENGINE

Return Number

1шт.

106835A2R

REMAN-BASIC ENGINE

1680 Eng. S/N 466776 & Aft.

1шт.

106835A2C

CORE-BASIC ENGINE

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - camshaft

4шт.

3

50410DA

PLUG

- hex socket, 1/8 inch PT

5шт.

4

684902C1

DOWEL,15.3mm ID x 17.78mm OD x 22.23mm L

- locating

2шт.

5

41-1620

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch diameter

9шт.

8

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

1шт.

9

217-442

PLUG,3/4" - 14

- hex socket headless, 3/4 inch PT

3шт.

10

682444C1

RING

PLUG - rear, camshaft

1шт.

11

680243C1

HOUSING

CAP - main bearing, rear

1шт.

12

680241C1

CAP

- main bearing, front and intermediate

6шт.

13

1802582C1

BOLT

- main bearing cap

14шт.

14

680484C1

DOWEL

- dowel, 1/2 x 1-1/8 inch

2шт.

15

680483C1

PIN

DOWEL - dowel, 3/8 x 7/8 inch

2шт.

18

41-1013

PLUG,Cup, 13/16"

- cup, 13/16 inch diameter

3шт.

19

343464R1

TUBE,0.049" ID, 1" OD, 2" Length

NOZZLE - piston coolant jet

12шт.

20

1806481C1

CLAMP

- turbocharger oil inlet tube, lower

1шт.

21

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

326-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

1шт.

24

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

1шт.

28

690166C1

COVER

- breather opening

1шт.

29

690231C3

GASKET

- breather cover

1шт.

30

673761C1

BRACKET

- suction pipe support

1шт.

31

675767C1

SPACER

- idler gear

1шт.

32

675764C1

GEAR

- idler, 77 teeth

1шт.

33

327185R91

BEARING ASSY,31.75mm ID x 59.16mm OD x 36.75mm W

- idler gear

1шт.

35

675765C1

SHAFT

- idler gear stub

1шт.

36

26044R1

12 PT SCREW,Flg, 1/2" - 13 x 2"

BOLT - 12 point flange

1шт.

38

71151C91

HEATER

KIT - coolant heater, Includes: Ref. 39 & 40

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

40

A44813

CABLE EXTENSION

CORD - heater

1шт.
